Product Details
| Model Number | 1W 3030 SMD LED | Chip Material | InGaN | |
| Emitting Color | Natural White | Luminous Intensity | . | |
| Luminous Flux(lm) | 110-130lm | Optical Attenuation(%) | 0.3 | |
| Power | Other, 1W | Power Dissipation | 1000 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | CCT4000-4500K | |
| Operating Temperature(℃) | -30, +85 | Storage Temperature(℃) | -40, +100 | |
| Place of Origin | Guangdong, China | Brand Name | Shining | |
| Certification | CE |

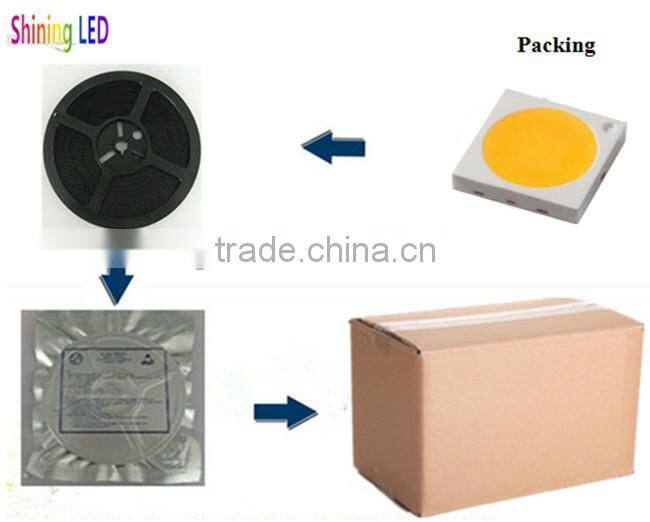

4000 pieces/reel.
Product Description

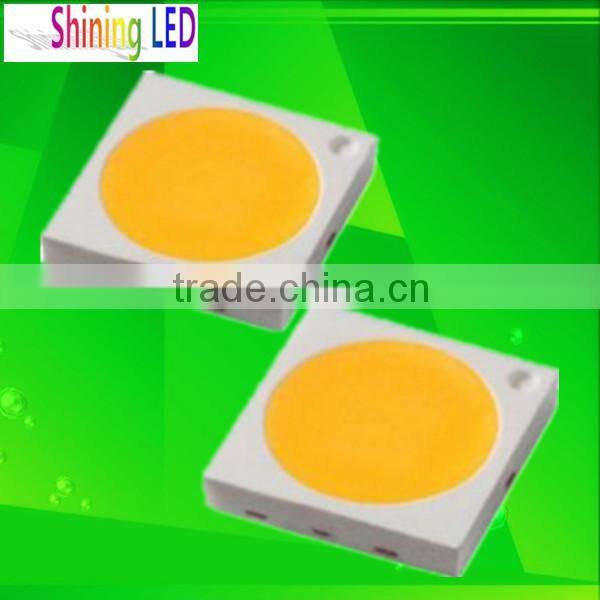

110-130lm CRI>80Ra 1W EMC 3030 High Power SMD LED
Item Name | 3030 SMD LED |
Luminous Flux(LM) | 1W: 110-130lm/120-150lm 2W: 180-200lm |
CCT(K) | Warm White: 2800-3200K Natural White: 4000-4500K Cool White: 6000-6500K Cold White: 7000-8000K |
Voltage(V) | 5.8-6.6V 2.8-3.6V |
Current(mA) | 150mA 350mA 700mA |
Power(W) | 1W 2W |
CRI | >80Ra >90Ra |

Competitive Advantages of our LEDs:
1. Good quality guarantee, 50000 hours lifespan, 3 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 2-6 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 2323 ,
3030 , 3535 , 1W high power LED , 1-300W integrated LED / COB LED, Diode etc.
