Home > Products > 7020 & 7030 SMD LED > 0.5W Daylight White 3V SMD 7020 Low Package LED

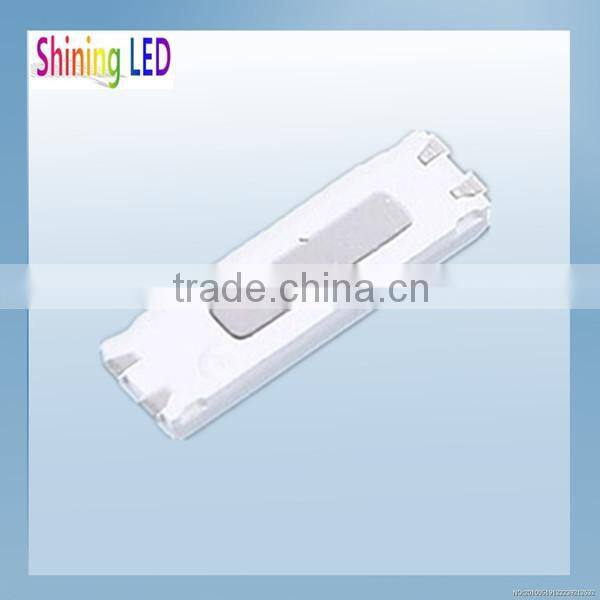

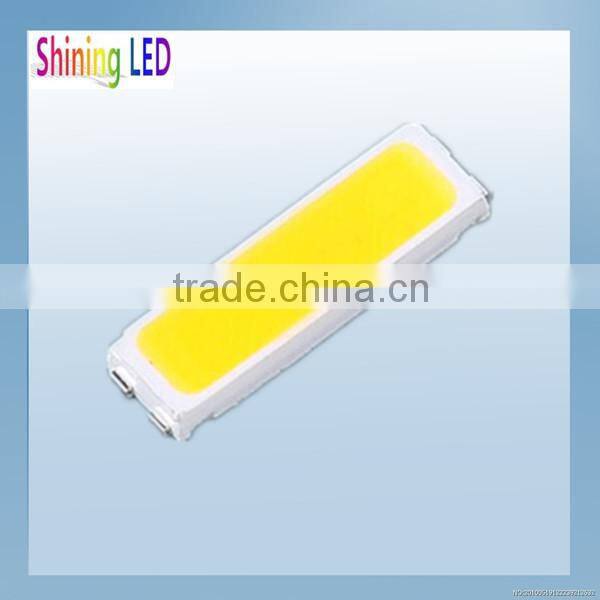

0.5W Daylight White 3V SMD 7020 Low Package LED

FOB Price

US$ 0.02 - 0.1 / Piece

4000 Pieces(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	7020 SMD LED	Chip Material	InGaN
Emitting Color	Warm White	Luminous Intensity	.
Luminous Flux(lm)	55-65LM	Optical Attenuation(%)	0.3
Power	Other, 0.5W	Power Dissipation	500
Color Rendering Index(Ra)	70	Color Temperature	CCT2800-3200K
Operating Temperature(℃)	-30, +85	Storage Temperature(℃)	-40, +100
Place of Origin	Guangdong, China	Brand Name	SHINING
Certification	CE

Packaging Details

4000 piece/reel.

Product Description

Competitive Features:

1. Good quality guarantee, 50000 hours lifespan, 2-3 years warranty.

2. Professional engineers and experienced workers.

3. Short delivery time, normally 3-6 working days.

4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.

5. Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 2323 , 3030 , 3535 , 1W high power LED , 1-300W integrated LED / COB LED, Diode etc.

7020 SMD LED Specification

Specifications

Item Name	0.5W SMD 7020 LED
Lumens	40-50LM, 55-65LM
CCT	Warm White: 2800-3500K
	Natural White: 4000-4500K
	Cool White: 6000-6500K
	Cold White: >7000K
Voltage	2.8-3.6V
Current	150mA
CRI	70-80Ra
Power	0.5Watt
Beam Angel	120 degree

Parameter

Parameter		Data			Unit	Note
		Min	Typ	Max
Forward Voltage	Vf	3.0		3.4	V	If=150mA
Luminous Flux		55		65	lm	If=150mA
Color Temperature	CCT	3000		3500	K	If=150mA
		4000		4500	K
		6000		6500	K
Color Temperature	CRI	-		70	Ra	If=150mA
luminous efficacy		90		110	lm/W	If=150mA
Reverse Currenccy	Ir	-		5	uA	Vr=5V

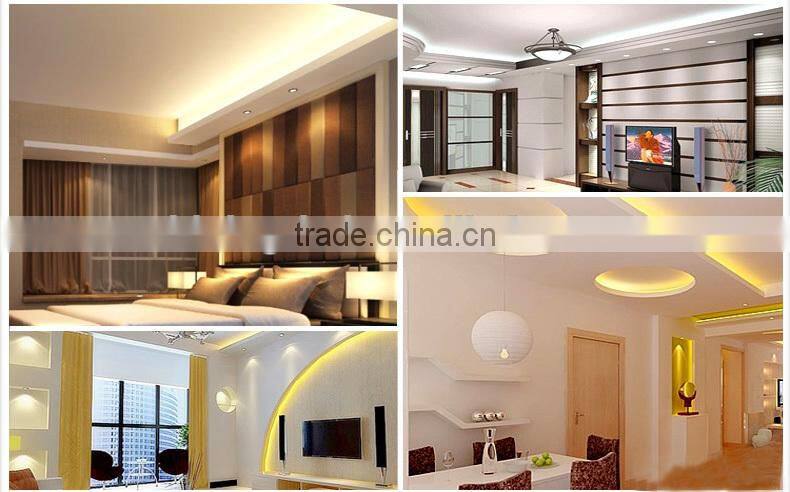

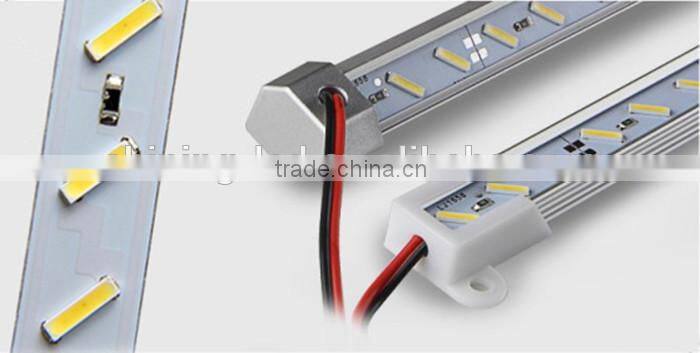

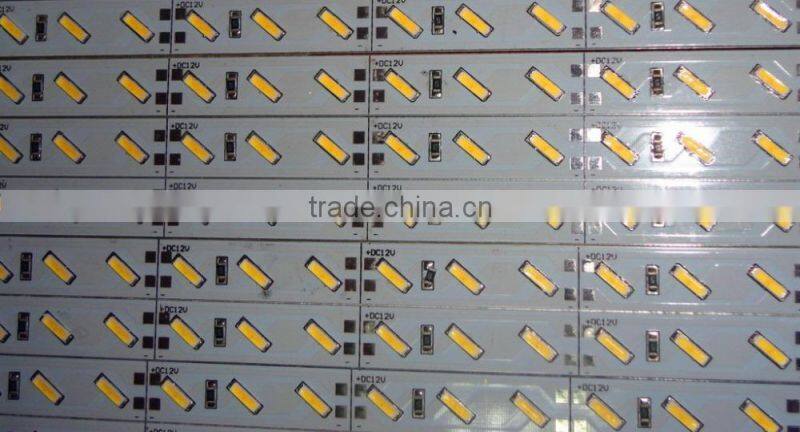

Application: For LED Strips, LED Tube, LED TV Backlight, ect
