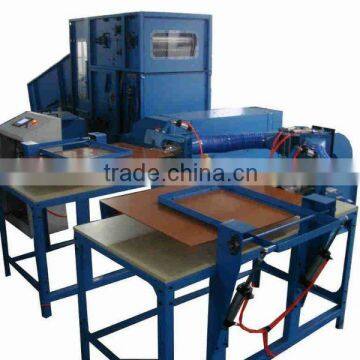

polyester fiber carding blowing pillow machine

Specifications

polyester fiber carding blowing pillow machine

Specification:

• Item no.: QL001
• Installation area: 13000*5000*2300mm
• Voltage: 380v 50Hz 3phase (difference can be ordered)
• Power: 15.6kw
• PLC: Siemens brand
• Air pressure: 0.2Mpa
• Capacity: 6-10pcs/min, 360-450pcs/h, 600pcs/h--500g/pc
• Labor: 1 person
• Weighing tolerance: less than 15G
• Weight: 4.2MT
• Control system: Computerized control system

Description:

• The computerized automatic pillow filling machine line can be used for sleeping pillow, cushion, sofa, chair pads etc.
• The material application can be conjugate hollow siliconzied polyester fiber that shorter than 100mm length.
• Adopting metallic model V wires for the fiber opener parts, so that the fiber can be opened for more than 98% and not be damaged; the V wire is 4 times usage life than the normal wire.
• The whole line can be handled by only operator that only replacing the pillow cases; as it is controlled by Siemens PLC control system with time flow weighing system.
• If a 600g pillow filling, it will be handled for 6pcs per minute.
• It is simple operation, stable and reliable quality which is easy to be understanding by the operators.
• Good dynamic balance processing
• Easy to maintain & good after sale service
• Please feel free to contact us for more info. photo & VD
