High quality wcdma mobile signal amplifier 3g booster 2100mhz wireless pico repeater
- XIAMEN
- T/T Credit Card
You May Like
-
high power 10watt triple band GSM 900 1800 2100 wireless Cellular phone signal repeater
-
Kingtone Cell Repeater, GSM Broadband Signal Repeater, Dual Band 900+1800mhz Repeater
-
Kingtone Dual Band RS232 Cell Phone GSM 900/1800 Signal Amplifier
-
Kingtone Cell Signal Repeater 95dB 5Watt 900 1800 2100 MHz High Power Tri-band Gsm Repeater
-
KIntone 5watt GSM 900 1800 2100 tri-band Cellular phone repeater
-
KIntone 37dbm gsm tri-band repeater 900 1800 2100 three band cell phone booster repeater
Supplier's Choice
Product Details
| Place of Origin | Fujian, China | Brand Name | KINGTONE | |
| Model Number | KT-TP-WCD01 |
thick box lined with foam for signal repeater
Product Description

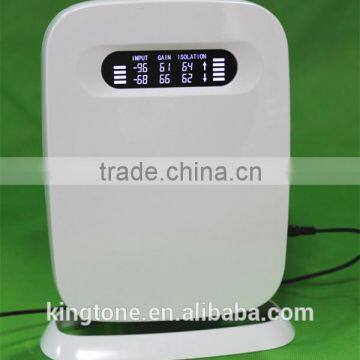

High quality wcdma mobile signal amplifier 3g booster 2100mhz wireless pico repeater
.
Main feature
1 Built-in antenna, small size and convenient for installation.
2 The donor antenna can be chosen the built-in or outlay according to the difference of the environment.
3 GSM system supports the automatic search and lock functions of the frequency points.
4 Support the continuous operation bandwidth of maximum 75M.
5 GSM system supports 16 frequency points at most.
Technical Specification
Parameter | Uplink | Downlink |
Frequency Range | 1920MHz-1980MHz | 2110MHz-2170MHz |
Bandwidth | 15MHz (Continuous 3 carrier) | |
Gain |
| 75dB±3dB |
Output Power | 15dBm±3dB | 15dBm±3dB |
Gain Adjustment Range | 30dB, Step 1dB | |
Max. Damage Input Power | -10dBm | |
Gain Adjustment Step Error | ≤1dB (1-20dB); ≤1.5dB / (20-30dB) | |
ALC | >20dB | |
Ripple in Band | ≤3dB p-p | |
ACRR | ≥20dB offset ±5MHz; ≥20dB offset ±10MHz | |
Noise Figure | ≤6dB | ≤6dB |
VSWR | ≤2.0 | |
Frequency stability | 0.01ppm | |
Time Delay | ≤10.5us | |
EVM | ≤ 12.5%@75dB | |
Intermodulation | Comply with 3GPP TS 25. 106 | |
Automatic Gain Control | ≥30dB | |
PCDE | ≤-35dB | |
Out of band Rejection | ≤ 60dB @ 2.7MHz≤f_offset <3.5MHz ≤ 45dB @ 3.5MHz≤f_offset <7.5MHz ≤ 45dB @ 7.5MHz≤f_offset <12.5MHz ≤ 35dB @ 12.5Mhz ≤f_offset | |
Spurious emission | In band: 2.515MHz<f_offset<2.715MHz: ≤-22dBm/30kHz 2.715MHz<f_offset<3.515MHz: ≤-22dBm/30kHz 3.515MHz<f_offset<4.0MHz: ≤-34dBm/30kHz 4.0MHz<f_offset<8.0MHz: ≤-21dBm/1MHz 8.0MHz<f_offset<f_offsetmax: ≤-25dBm/1MHz | |
Outoff Band: 9kHz~150kHz≤-36dBm/1kHz 150kHz~30MHz≤-36dBm/10kHz 30MHz~1GHz≤-36dBm/100kHz 1GHz~12.75GHz≤-30dBm/1MHz | ||
Product range: GSM / CDMA / DCS / WCDMA / TETRA / LTE Wireless Full Band Repeater, Fiber Optic Repeater, Frequency Shifting Repeater, Digital / Analog Repeater, Trunk Amplifier
Support System | Frequency Range | Output Power |
GSM900MHZ | 890-915MHz/935-960MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz | 1710-1785MHz/1805-1880MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz | 1895-1910MHz/1975-1990MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz | 450-457.5MHz/460-467.5MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz | 1880-1890MHz/1960-1970MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz | 1920-1980MHz/2110-2170MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ | 890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz | 2W/5W/10W/20W/ |
GSM850/1900MHZ | 824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz | 2W/5W/10W/20W |
GSM900/UMTS2100 | 890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz | 2W/5W/10W/20W/ |
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
| Packaging Detail | Standard Package 1) Signal Repeater (AC power cord EU standard/ US standard/ UK standard) 1PC 2) Installation kit 1PC 3) User manual 1PC |
| Delivery Detail shipping | 10-15working days after received payment DHL, UPS, FEDEX, Air/Sea freight |
