Home > Products > Active Function Modules > 824-849MHz 869-894MHz CDMA800 or Gsm 850 Mhz Duplexer

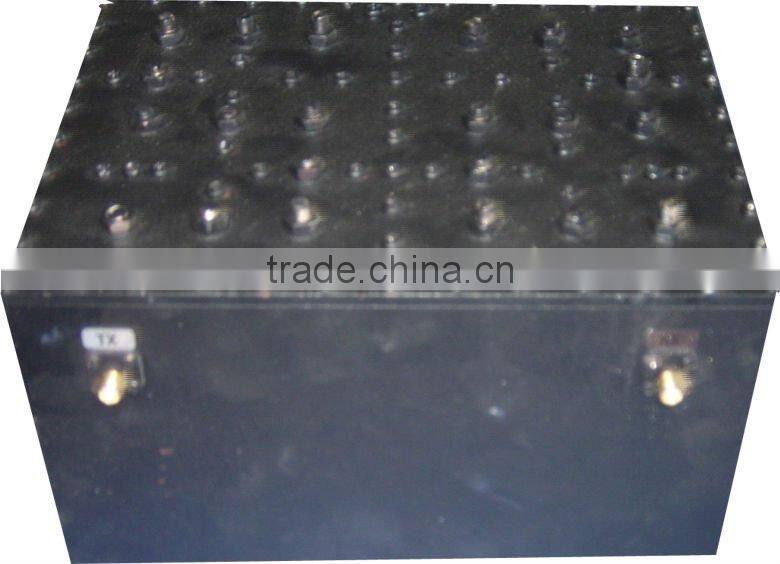

824-849MHz 869-894MHz CDMA800 or Gsm 850 Mhz Duplexer
- XIAMEN
- T/T Credit Card
You May Like
-
Cavity RF WCDMA 3G Duplexer Passive Components for 3G Cellular Repeater
-
rf Transceiver Module 800 900 1800 1900 2100 Low Cost Fiber Optic Transceiver
-
RF Duplexer 824-849MHz 869-894MHz CDMA800 or Gsm850mhz Duplexer
-
OCXO
-
GSM 900MHz Repeater Duplexer, RF GSM Duplexer, GSM Cavity Duplexer
-
Kingtone Cheap GSM 3G Fiber Optic Repeater Receiver Module - RF-Optical Transceiver
Product Details
| Place of Origin | Fujian, China | Brand Name | kingtone | |
| Model Number | KT-CDMA- |
Cartons with safety foam or Customized
Product Description
Specifications
CDMA Duplexer:
1.High Q cavity design
2. High Power Handling
3.Low passive IMD
CDMA Duplexer Features:
1.High Q cavity design
2. High Power Handling
3.Low passive IMD
CDMA Duplexer Technical Specification:
Detailed Product Specification Model | KT-CDMA-B | memo | |
Frequency | 824-849MHz | 869-894MHz | Can design according customer specification |
Insertion Loss | 1.8dB typical 2.0dB max |
| |
Ripple in Bang | 0.8dB p-p max |
| |
VSWR | 1.3 Min |
| |
Return Loss | ≥20dB @Pass Band |
| |
Isolation | ≥90dB |
| |
Coupling | 25dB±2dB |
| |
Power Handling | 50W |
| |
Operating Temperature | -30 to +55 degree |
| |
Storage Temperature | -55 to +85 degree |
| |
Operating Humidity | 0 to 90%, relative |
| |
Port Connectors | SMA-Female |
| |
Surface Color | Black or Gray | Can design according customer specification | |
Frequency range list for our repeaters :
Support System | Frequency Range | Output Power |
GSM900MHZ | 890-915MHz/935-960MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz | 1710-1785MHz/1805-1880MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz | 1895-1910MHz/1975-1990MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz | 450-457.5MHz/460-467.5MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz | 1880-1890MHz/1960-1970MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz | 824-849MHz/869-894MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz | 1920-1980MHz/2110-2170MHz | 2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ | 890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz | 2W/5W/10W/20W/ |
GSM850/1900MHZ | 824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz | 2W/5W/10W/20W |
GSM900/UMTS2100 | 890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz | 2W/5W/10W/20W/ |
Our repeater support above frequency range .
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
Question: I work in an office building where my cell phone coverage in certain areas, including my office, is non-existent or spotty at best. How can I improve my coverage?
Answer: The requirement for reliable, always-on cell phone coverage within the office environment is increasing dramatically. It is not unusual to encounter trouble spots within a building where cell phone signals are weak or non-existent.
Kingtone repeater provides affordable and clear coverage to those trouble spots. The unit can be easily deployed and provides a coverage range of up to 100,000 square feet. Multiple units can be easily deployed to cover office areas and working locations.
Kingtone repeater can be deployed even without access to the roof or outside.
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd Add:3th Floor,Bld B,Yucheng Base, Keji Road,Fengze district ,Quanzhou ,Fujian,China. |
Email: cary @ Tell: 86 595 28857991 Whatsapp:+86 13506927982 skype: cary.cao4 Web: ; |
Company Profile
Established in 2006, Kingtone is a high-tech enterprise specialized in developing, producing and selling wireless communication equipments and microwave functional module, such as Repeater for cell phone network, Mobile phone Jammer ,Handheld Transceivers, Vehicle Radio,Marine Radios etc.. Located in Quanzhou City of Fujian Province, we enjoy comfortable environment and convenient transportation. Covering an area of 1710 square meters, our factory is equiped with cutting-edge spectral analyzer, network analyzer, noise figure meter and signal generator, and operating under strict QC guidelines to guarantee high-quality products at competitive prices. We also deal in high-quality alarm system. Our products conform to international standards, such as CE, GS, CE, EMC, UL and CSA. Meanwhile, OEM and ODM orders are welcome. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build long and successful business relationships with us.
