Nylon 66 sterilization filter catridge

Specifications

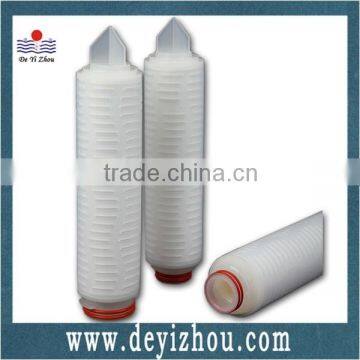

Nylon 66 sterilization filter catridge(HN66-J series)

1.The filter membrane is hydrophilic with absolute filtration accuracy

2. Wide chemical compatibility

3. It has excellent applicability under high temperature condition

4.Proteins can be intercepted

5.Excellent interception rate

6.Extremely low precipitates

1.sterile filtration of raw material medicine,injection,infusion and other drug

2.Terminal sterile filtration of food,drink and wine

3.Terminal filtration of photoresist,chemical reagent,ect

4.Terminal filtration of water-based ink

 Filter element material composition:

Intergrity test:

Main application technical indicators:

Water flow capacity-pressure difference curve(10'' filter element)

  Quality assurance:

1.ISO9001: 2008 guaranteed quality management system

2.Traceability management system of each filter

3.Filter elements are flushed and pass integrity test before filter elements are left from the factory

4.The batch passes through bacterial challenge test for confirming 100% bacteria interception ability

Biological safety:

1.Biological Safety: The product materials comply with USP in-vivo VI-121 ℃ plastic biological response test

2.Endotoxin: <0.25EU/ml

3.Cleanliness: The product is in line with 2010 GMP requirements on injection of particles

4.Readily oxidizable substance: the substance should be in line with 2010 GMP test requirements of particle contents in injections after water rinsing for 2000ml

5.TOC/conductivity: after the product is flushed with 20L injection water at 25 ℃ (10"). It is in line with requirements of 2010 GMP on total organic carbon contents and conductivity in injection water.
