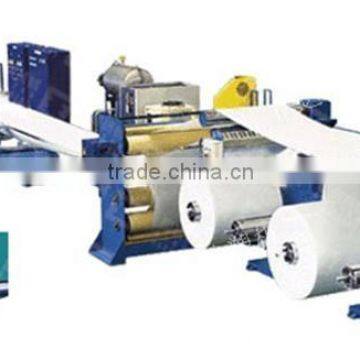

GuoYan EPS Foam Sheet Production Line
- Huangpu port in Guangzhou
You May Like
-
GY-PJ-PP/PE/PS/PET/EVA/ABS Plastic Sheet Unit
-
EPS Foam Sheet Production Line
-
GuoYan GY-50 Bean Curd And Soybean Milk Making Machine
-
GuoYan GY-SXY Eletric Small Noodle Making Machine
-
GuoYan GY-50 Bean Curd And Soybean Milk Making Machine
-
GuoYan GY-SXY Eletric Noodle Maker, Small Noodle Making Machine
Product Details
| Condition | New | Product Type | Plastic Sheet | |
| Place of Origin | Guangdong, China | Brand Name | GuoYan | |
| Model Number | GY-EPS | Voltage | depends on the configuration | |
| Power(W) | depends on the configuration | Dimension(L*W*H) | depends on the configuration | |
| Weight | depends on the configuration | Certification | Other, ISO9001,CQC | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Screw and canister are made of 38CrMoALA Nitride steelfrequency control
low consumption
reliable running
low consumpion
EPS Foam Sheet Production Line
Usage:
Fit for producing EPS foam sheet (KT boards), treat polystyrene as raw materials, foaming agent is injected under high pressure, products are finished via extruding, foaming, cooling, sizing, cutting, drawing and winding with excellent anti-shocking ability, sound insulation, warm-preservation, anti-damp, high security and high plastic suction, widely used for packing fruit, fruit, electronic products, daily articles, hardware and toys.
Characteristics:
Adopt advanced dual in-series type foaming technology which has stable performance and easy operation.
Screw and canister are made of 38CrMoALA Nitride steel, then service life of screw is enhanced.
Adopt far infrared ray energy-saving heater, intelligent digital automatic temperature controller which has high efficiency and low consumption.
Drive motor adopts frequency control, high speed precision, wide range, low consumption and reliable running.
Technical parameters:
Spec/Item | PS-65/90 | PS-80/100 | PS-90/120 | 120/150 |
Diameter of screw mm | φ65/90 | 80/100 | φ90/120 | φ120/150 |
Productivity kg/h | 50-80 | 80-120 | 150-180 | 200-260 |
Installed Capacitance KW | 60 | 100 | 120 | 160 |
Thickness mm | 1-3 | 1-4 | 1.5-4 | 2-4 |
Width mm | 1040 | 1080 | 1080 | 1080 |
Cooling method | Water and wind | Water and wind | Water and wind | Water and wind |
Water consumption T/h | 3 | 4 | 5 | 8 |
Weight T | 8 | 12 | 14 | 16 |
Dimension m | 25×3×3 | 30×3.5×3 | 35×4×3 | 38×4.5×3 |
