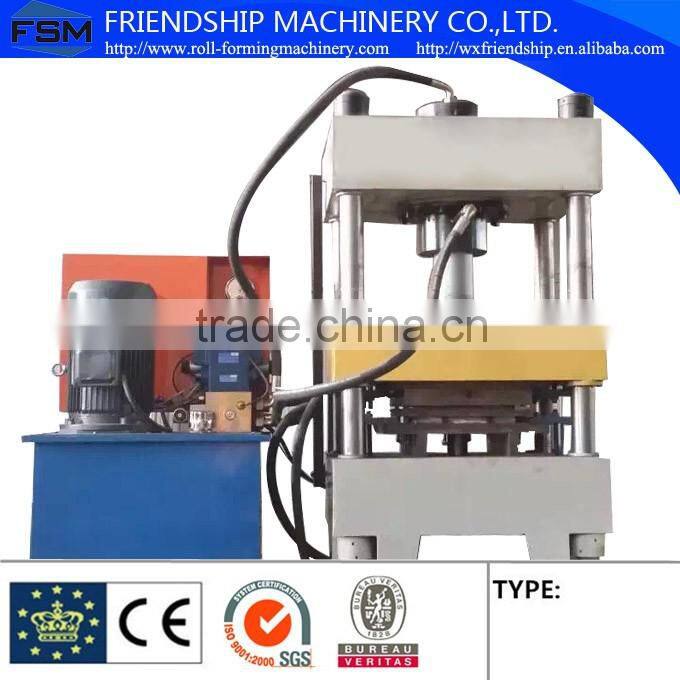

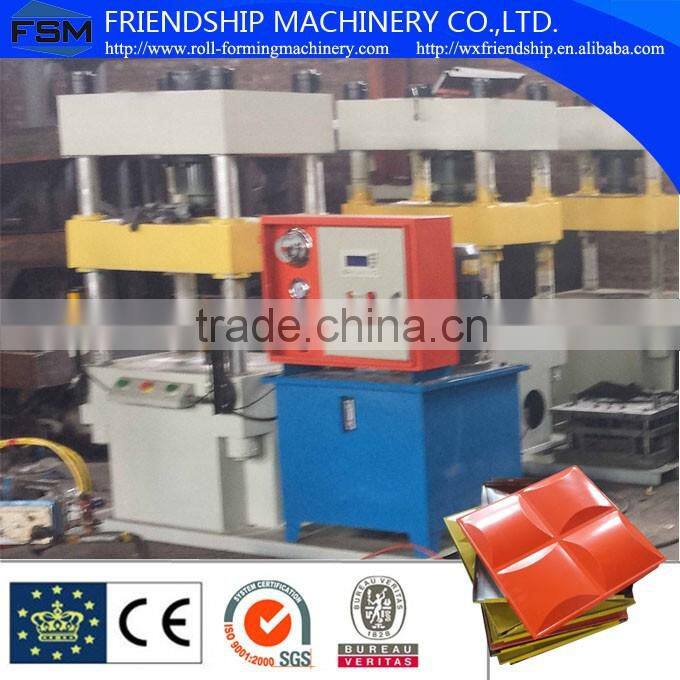

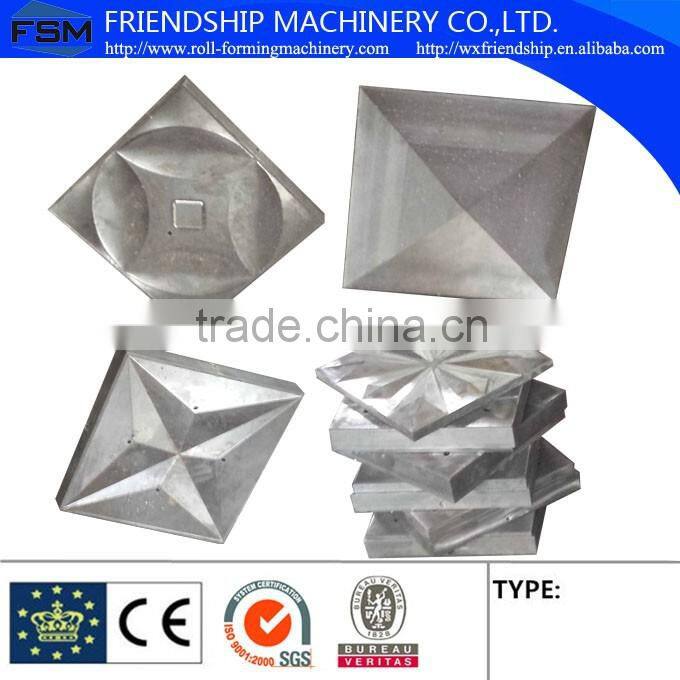

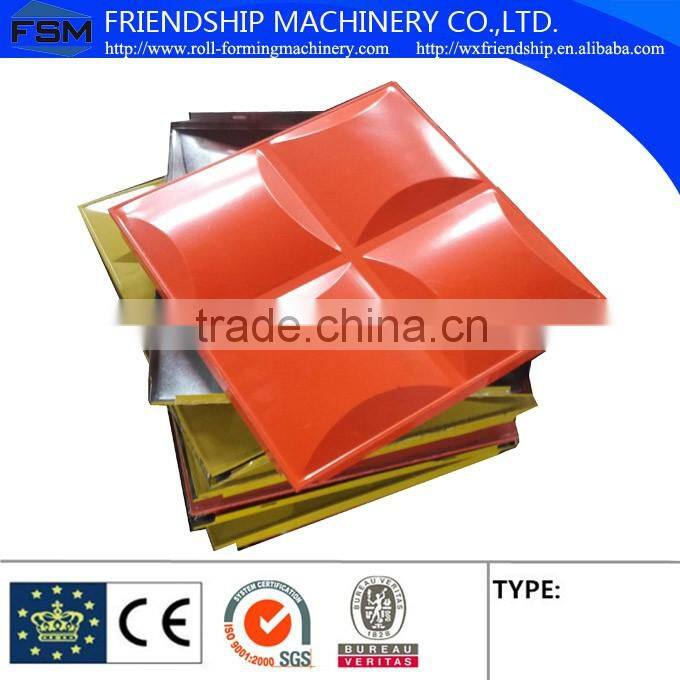

Hydraulic Press Forming Machine for 3D Wall Decration

3D Panel Roll Forming  Machine

Ⅰ:Composition of machine

 Roll forming main machine: 1 unit

5 Tons manual decoiler: 1 unit

 Control panel: 1 unit

 Hydraulic station: 1 unit

Ⅱ: Details of each composition

 (1)Roll forming main machine

1: Coil width: depend on profile

    Adjust the size: control by PLC system

2: working speed: 12pieces/min

5:material of main shaft:45

6: main power: 5.5kw

7: forming thickness: 0.3mm—0.5mm Q235

8: Transmission: by Chains 1.5 Inch

9: size of machine: about 1200×1400×1600mm(L*W*H)

10: weight: about 3000Kg

11:Cutting:

• Machine adopt hydraulic post-cutting
• Material of blade: CR12with heat treatment 3sets
• Length measuring: Automatic length measuring
• Tolerance of length: 3m+/- 1.5mm

(2) 5Tons manual decoiler

a. Dimensions: 1000*1400*1000mm (L*W*H)

b. Width of feeding: 600mm

d. Bound of expand &fight: 450-550mm

e. Mode of expand & fight: inner expand & fight by manual

f. Way of feeding: servo feeding

(3) Control panel

a. Voltage, frequency, phase: 380V, 50HZ, 3Phase

b. Automatic length measurement

c. Automatic quantity measurement

d. Computer used to control length & quantity, machine will automatically cut to length and stop when required quantity is achieved

e. Length inaccuracy can be amended easily

f. Control panel: button type switch and touch screen

g. Unit of length: millimeter (switched on the control panel)

(4)Hydraulic station

a. Hydraulic station power: 5.5kw

b. Hydraulic pressure: 20Mpa

3. Character of main structure

Main features and components

a. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

b. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c. Qe adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

d. It is very easy to install the equipment and suitable for producing in the factory.

e. The machine has features of low noise and high efficiency.

Technological process

Decoiling - feeding - guide - straighten the sheet - punching

Price

Pls contact with sales
