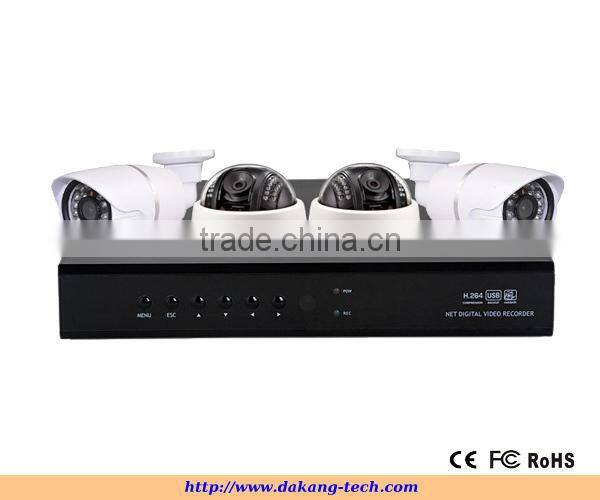

IP Camera and P2P NVR, H.264 NVR Kit,720P Camera NVR System

System

Main processor

Industrial grade embedded micro processor chipset

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.

Display

Operation interface

16 bit real color GUI interface support mouse operation

Multilingual Language

28 kinds of language,English, Finnish, French, German, Greek, Italian, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc

Display screen

1/4 screen

Video

Video standard

PAL(625 lines, 50fps); NTSC(525lines, 60fps)

Image encode

H.264(Main Profile)

Monitor quality

Monitor: D1; VGA & HDMI: (1920*1080,1280*720,1440*900,1280*1024,1024*768, 800*600)

Playback quality

4ch 960p/720P/D1

Encode capability

4ch 960P/4CH 720P/4CH D1

Decode capability

4CH 960P/720P/4CH D1

Audio System

Audio compression

G.711A

Talkback

NO

Record and playback

Record mode

Manual, alarm, motion detection, timing

Local playback

1CH – 4CH

Video search

Time, date, event, channel search

Storage and back up

Space Usage

Video: D1 8~10G/day*channel;960H 12G~20G/day*channel;720P 20~30G/day*channel;1080P ~40G/day*channel;Audio: 691.2M/day*channel

Video storage

Local Hard Disk, Network

Back up mode

Network backup, USB portable HDD, USB DVD-RW

Interface

Video input

4CH 960P/720P/4CH D1

Video output

1CH BNC(1.0Vp-p,75Ω), 1CH VGA, 1CH HDMI

Audio input

NO

Audio output

1CH RCA (200-3000mV,5KΩ)

Alarm input

NO

Alarm output

NO

Network port

1*RJ45 10/100 Base-T self-adaptive Ethernet port

PTZ control

1*RS485 port, Support more than 20 kinds protocols.

USB port

2*USB 2.0 port

HDD port

Support 1 SATA HDDs (1 HDD capacity up to 3TB)

Wireless Port

3G & WIFI (extension via USB port)

 720P

Model

DK-7065EC

DK-7010EC

Sensor

1/3 960P low lux AR0130 CMOS sensor,hi3518E

1/4 720P OV9712 CMOS sensor,hi3518E

Resolution

1280*720@30fps

1280*720@23fps

Compression

  H.264 Main Profile/Baseline

Steam flow

Support dual stream

Bit Rate

128-8192kbps

Bit Rate Type

CBR/VBR

S/N Ratio

>50DB

Electronic shutter

1/5-1/15,000 /S

Image enhancement

Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted

Subtitles input

upport channel name, date/time

IR Filter

IR-CUT

IR-led

24pcs 5mm leds

IR distance

20M

Electronic shutter

1/5-1/15,000 /S

lens

3.6/6/8mm fixed Lens(3Mega pixel lens)

Audio

N/A

Protocal

HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF,28181

Ethernet

Ethernet (10/100 Base-T),RJ-45 connector

Safety

IP address filtering,User level password protection,The user access log

WEB Browser

       Microsoft Internet Explorer 6.0 and above,google,firefox etc.

Mobile Phone

Support iPhone,Android,Bit rate:32K – 512K adjustable,Frame rate:6–12 fps

Software Management

CMS and the devices Compatible with ONVIF

Remote Access

DDNS,Software,P2P

Accessories

Power adapter, Network cable, Stand, Operation manual, CD, Screw bag

Temperature

-20°~60°C

Humidity

-10~85%

Power Comsumption

DC 12V ,Module power consumption is less than 2 W
