Product Details
| Condition | New | Function | Sealing, Wrapping | |
| Application | Chemical, Food, Medical | Packaging Type | Bags, Film, Foil, Pouch, Stand-up Pouch | |
| Packaging Material | Paper, Plastic | Automatic Grade | Automatic | |
| Driven Type | Electric | Voltage | 380V | |
| Power | 5kw | Place of Origin | Jiangsu, China | |
| Brand Name | Haitel | Model Number | D420/520 | |
| Dimension(L*W*H) | 2.528m | Certification | CE/ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

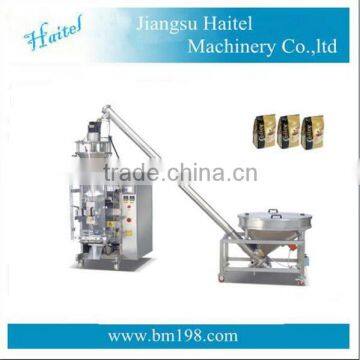

HTL-D420/520 fully automatic powder packaging machine
Characteristic
1. Film drawing down system controlled by servo motor.
2. Automatic film rectifying deviation function.
3. Various alarm system to reduce waste.
4. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
5. The way of bag making: The machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.
Main technical
| Model | HTL-D520 |
| Packing speed | About 30-60 bags/min. It is according to quality of wrapping film and materials. |
| Accuracy | ≤1.5% |
| Bag size | (L) 80-350 mm; (W)100-250 mm |
| Maximum film width | 520 mm |
| Filling range | 150-2000 g |
| Film thickness | 0.04-0.09 mm |
| Packing material | Thermal composite materials, such as BOPP/CPP, PET/AL/PE |
| Air consumption | 0.8 MPa, 0.4 m³/min |
| Total power | 5 KW |
| Voltage (V) | Four wires, three phases, 380V, 50Hz. |
| Air compressor | Not less than 1 CBM |
| Total height | 2528 mm |
| Gross weight | 900 kg |
Electric configuration
| Touch-sensitive screen | WEINVIEW Taiwan |
| Programmer controlled system | SIEMENS Germany |
| Servo motor | PANASONIC Japan |
| Servo driver | PANASONIC Japan |
| Cylinder | SMC Japan |
| Cylinder | SMC Japan |
| Electromagnetic valve | JINGQI Taiwan |
| Intermediate relay | Weidmuller Germany |
| Photoelectric eye | BEDELI Taiwan |
| Powder | ZHANGXIN China |
| Solid state relay | XIANLI / OMRON |
| Thermometer control | OMRON |
Application
It is suitable for packing of several of granule, powder, such as sugar, salt, coffee, etc.
Ξwelcome to visit our factory Ξ
Our Company
As a Sino-US company, Haitel Machinery Co,.Ltd is aprofessional manufacturer for automatic packing, candy chocolate, egg-roll, cake and other food processing machinery.Specializing in confectionery processing equipment, Haitel has a professional team withe strong techincal and R & D knowledge to develop advanced food equipments to cope with market changes.
Large-scale workshop
Office
We have got lots of certificates related to our industry.
We attend many exhibitions every year and honored to have clients visit us !
Pre-sale
nfirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.
2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.
After-sale
1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the buyer receive the machines, free warrant for 12 months
Safe package
If you have any questions,pls feel free to contact me! We are looking forward to cooperate with you!
