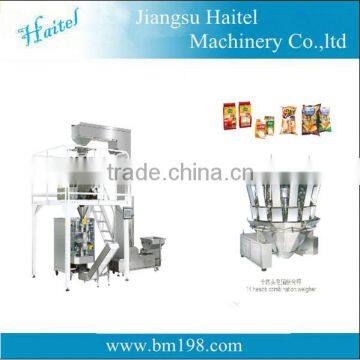

HTL-V420/520 automatic granule chips preformed pouch packing chips 1kg bag packing machine
- 15 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
-
Choose this!!! 2016 most popular automatic powder packing machine
-
low price automatic advanced vertical tea pouch packaging machine
-
Low Cost Automatic Snack Food Grain Pouch Packing Machine
-
HTL-350/450/550 automatic multi-function pillow packing wrapping machine
-
automatic pouch powder packing machine for masala powder packing sealing filling
-
Hot selling!!! HTL-200A coin chocolate foil wrapping machine
Product Details
| Condition | New | Function | Filling, Sealing, Slitting, Wrapping | |
| Application | Chemical, Food, Medical | Packaging Type | Bags, Film, Foil, Pouch, Stand-up Pouch | |
| Packaging Material | Paper, Plastic | Automatic Grade | Automatic | |
| Driven Type | Electric | Voltage | 220V/50HZ | |
| Power | 2.2KW | Place of Origin | Jiangsu, China | |
| Brand Name | Haitel | Model Number | HTL-V420/520 | |
| Dimension(L*W*H) | 1320*950*1360mm | Certification | CE/ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HTL-V420/520/680 Automatic
Preformed Pouch Packing Machine
Characteristics:
1. PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, be finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance. Belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicely.
5. External film releasing mechanism: simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
7. Close down type mechanism, defending powder into inside of machine.
8. Multihead weighter measuring, packing weight more precision, product cost more low.
Main technical:
Model | HTL-V420 |
Bag length (mm) | 80~300 |
Bag width (mm) | 50~200 |
Max width of roll film (mm) | 420 |
Packing speed (bags/min) | 30~60 |
Measuring range (ml) | 150~1200 |
Air pressure (Mpa) | 0.65 |
Gas consumption (m³/min) | 0.3 |
Power voltage (V) | 220V |
Power (KW) | 2.2 |
Dimension (L*W*H) (mm) | 1320*950*1360 |
Weight (kg) | 540 |
Application:
It is suitable for packing of several of granule, slice, stripe, such as candies, potato chips, shrimp chips, jelly, peanut, hardware, etc.
