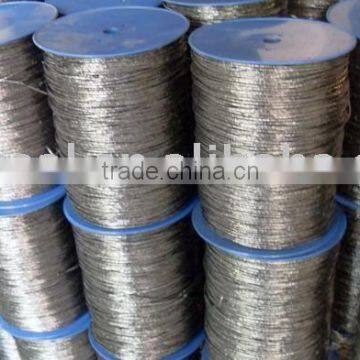

flexible graphite yarn
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Hubei, China | Brand Name | hengda graphite | |
| Model Number | HDP407 | Dimensions | 2g/m,3g/m,5g/m |
Product Description
Specifications
flexible graphite yarn1)size:2g/m, 3g/m, 5g/m
2)gland packing material
3)can be reinforced on request
Description
Flexible graphite yarn is made from expanded flexible flake graphite. To manufacture reinforced flexible graphite yarns which used for braiding expanded graphite packing, we use expanded graphite as basic material, mixing with natural fiber, synthetic fiber, metal alloy wire and proper binding agent, then through specially designed technological process. The braided packing made of these expanded graphite yarns reinforced with different kinds of fibers can be used under different circumstance, temperature and pressure conditions. Furthermore, for using these products under severely circumstance upon the demands of customers, inhibitors of corrosion can be added into the graphite yarns for making the properties of the graphite sealing parts more perfect.
Available size
Specification | 2g/m | 3g/m | 5g/m |
Diameter | 1.5mm | 2.0mm | 3.0mm |
Technical data
Temperature(°C) | -200~600 |
Pressure(Mpa) | 3~50 |
Linear speed(m/s) | 0~20 |
PH rang | 0~14 |
Sulphur content( ppm) | 1100 |
Chlorine content( ppm) | 50 |
Carbon content | 99% |
Ash content | 0.8% |
Update Date:2011-1-27 19:39:09
