1000x600mm Co2 Stone Laser Etching Machine / Granite Marble Laser Engraver LM-1060

1000x600mm co2 stone laser etching machine / granite marble laser engraver LM-1060

>> Technical Parameters >>

>> Machine Features >>

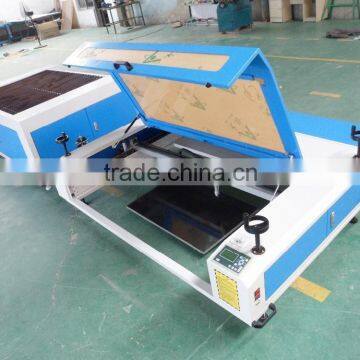

As you see in the above machine picture, the upper body can be separated from the machine, and put onto the material, then engrave. This is very convenient for engraving some thick and heavy materials, like stones.

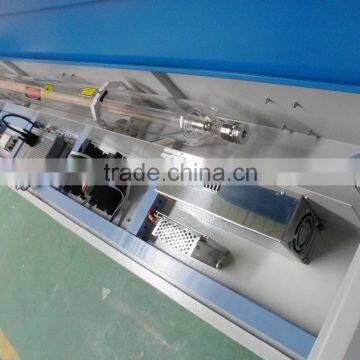

1. CO2 Glass sealed laser tube
China famous brand (Reci, Yongli), good beam mode stability, service time over 1500~8000 working hours.

2. Laser Power
40W~180W, good quality and stable output to extend the laser tube service time.

3. Singapore imported lens and mirrors
High transmittance, good focusing, reflecting effect.

4. DSP control system, Leetro Controller
Leetro USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.

5. High accuracy stepper motors and drivers. Belt transmission

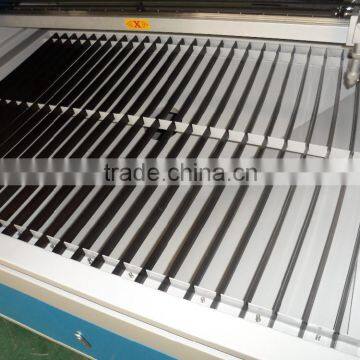

6. Aluminium blade table

7. Tiwan Linear guide rails

8. Lasercut 5.3 software, user’s manual

9. Tool box

>> Equipment coming together with machine >>

1. Industrial Cooling System
Constant water temperature ensures laser tube a longer service time and high stability

2. Exhaust Fan
Exhaust fan removes dust and smoke to protect the optical parts and the users.

3. Electromagnetic air pump
The air blowing protects the lens from smoke and dust pollution. Also it protects the material being processed from fire or burned.

>> Options >>

1. Red dot
The laser is invisible. Red dot shows the position of the laser on the material. It’s more convenient for location.

2. Honeycomb or blade table optional
Aluminum blade table is for processing acrylic, wood and other hard materials;
Honeycomb table is for processing cloth, leather and other soft materials.

3. Up/down Z-axis
You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.

4. Auto focusing
Auto focusing automatically adjust the focusing distance.

5. Rotary
Rotary is used when processing cylindrical objects like bottles, cups, sticks, etc.

>> Warranty >>

1. One year for the machine, except for consumables.

2. Laser tube warranty:
40W: 3 months
60W: 3 months
80W: 6 months;
100W, 150W, 180W: 8 months;

3. Lens and mirrors are not within warranty scope.

>> Applicable Materials >>

Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.

Materials can be cut:
acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.

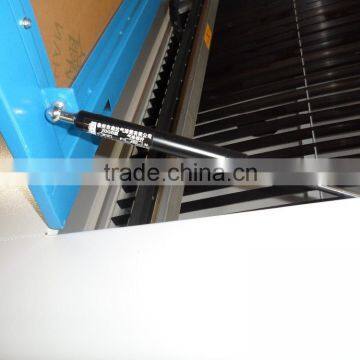

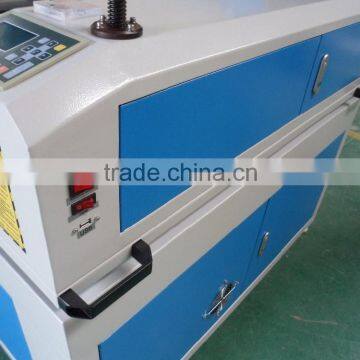

>> Machine Details >>

>> Sample Pictures >>

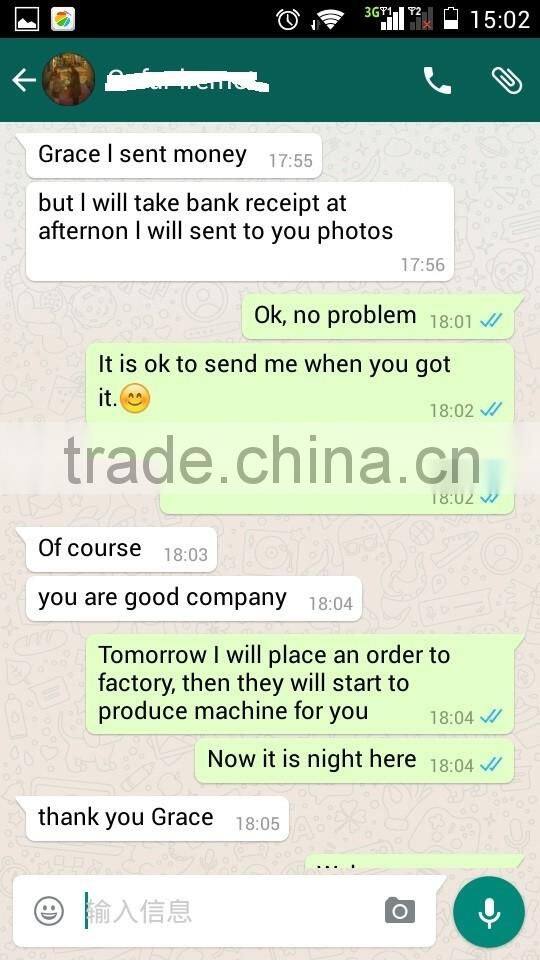

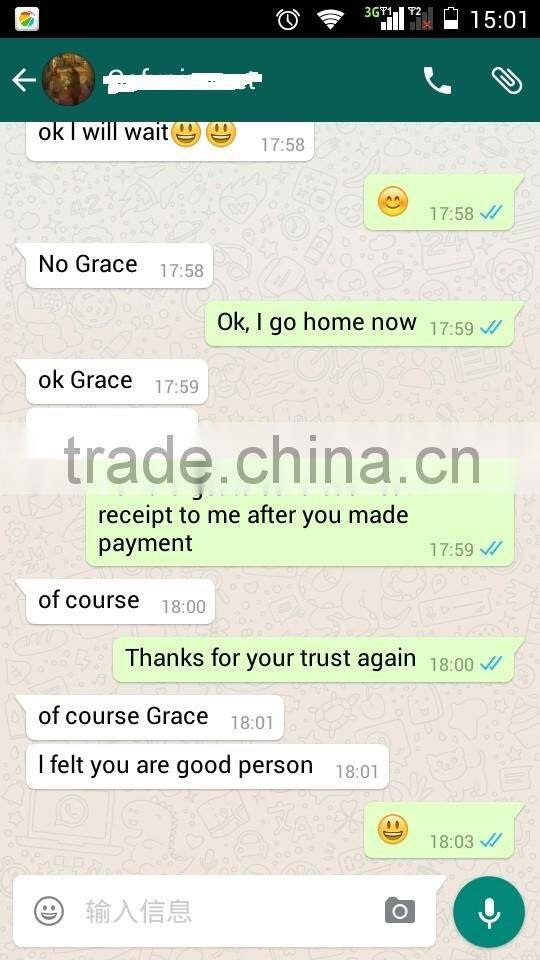

  >> Customer Feedback >>

>> About Us >>

Jinan LaserMen CNC Equipment Co.,Ltd was established in 2004. It is a professional manufacturer engaged in the research, development, production and service of laser engraving, cutting, marking machines.

We possess high efficient cooperated technology and service team, high coordinated producing and service network. Our machines are CE, FDA certified. Our company strictly comply with ISO9001:2008 international quality management system.
Our company will continue its efforts to make greater achievements.
