samarium cobalt magnet,cylinder, block, disc shape customized ROHS

Specifications

         samarium cobalt magnet,cylinder, block, disc shape customized ROHS

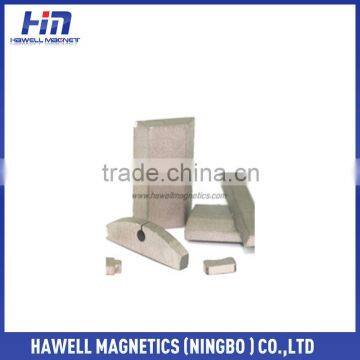

Shapes of SmCo

  Disc, Ring, Block, Segment, Cylinder, Trapezoid, Customized Design

 Applications of SmCo

sensors, magnetic processor, high-end motor

aerospace, defense industry, microwave devices,communications,

medical equipment, instruments, wind power, a variety of magnetic drives

SmCo Magnets

1:5 alloy material

Offers 16 MGOe (energy product) to 22 MGOe

Made up of approximately 50% samarium and 50% cobalt.

Has a maximum recommended operating temperature of 250°C.

SmCo 1:5 magnets require lower field strengths than 2:17 materials to magnetize.

In some instances, 1:5 material may be magnetized with multiple poles, provided that a magnetizing fixture is available.

2:17 alloy material

Offers 24 MGOe to 32 MGOe.

Thas a maximum operating temperature of 350°C.

Special grades of 2:17 are available which can operate to even higher temperatures.

SmCo 2:17 requires extremely high magnetizing fields, and multiple pole magnetization is not possible.

Composed of about 25% samarium, 5% copper, 18% iron, 2% hafnium or zirconium, with the remainder being cobalt.

  Magnetic properties of SmCo5 (Sintered SmCo Magnet, SmCo Magnets)

Magnetic properties of SmCo17 (Sintered SmCo Magnet, SmCo Magnets)

Flowing of manufacturing

PACKING;

Air package,sea package,standard package, shielding package to pass through the security at the airport.

Of cause,all of our package are customized.

Shipping Measures:

1--TNT courier TNT shipping rates, delivery 2-7 days . TNT is suitable for small cargo (less than 21KGS). You also can choose Fedex, DHL,UPS on yourside for your convenience.

2--Air cargo , rates 3 - 8 USD per kg, delivery 5-15days.suitable for cargo over 45 kgs .

3--Sea cargo - freight collect (Informing us the shipping forwarder before shipping, and local charge is responsible by customer); or freight prepaid (Including the freight in the total amount while making the order, and we responsible for the local charge), rates 80-170 USD per CBM. This type of shipping is suitable for cargo over 200KGS, or have big volume .

We ship worldwide !

Quick Leads for Buyers:

Please provide the following information when you sent RFQ to us.

1. Dimension: Diameter and the length. (attached drawing if customized)

2. Working temperature

3. Grade & Coating

4. Quantity

5. Provide us the sea port if order large quantity.
