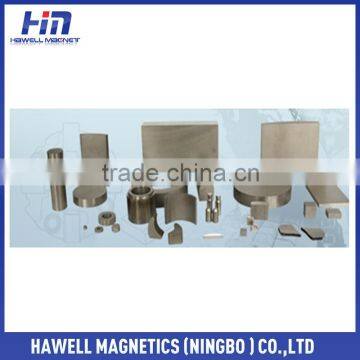

Smco magnet
- 2000 Ton / Tons per Month
- NINGBO SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | hawell magnetech | |
| Model Number | YXG28, YXG30, | Type | Permanent | |
| Composite | Other, Smco magnet | Shape | Other, ring, disc, bar, cylinder, segment, arc | |
| Application | Industrial Magnet |
Product Description
Specifications
1. Smco5 1:5 with 16-25MGOeSm2Co17 2:17 with 22-30MGOe
3.application : motor, magnetic coupling, magnetic separtor
Smco Magnets:
1:5 alloy material
1:5 offers 16 MGOe (energy product) to 22 MGOe and is made up of approximately 50% samarium and 50% cobalt. The 1:5 series has a maximum recommended operating temperature of 250°C. SmCo 1:5 magnets require lower field strengths than 2:17 materials to magnetize. In some instances, 1:5 material may be magnetized with multiple poles, provided that a magnetizing fixture is available.
2:17 alloy material
2:17 offers 24 MGOe to 32 MGOe and is composed of about 25% samarium, 5% copper, 18% iron, 2% hafnium or zirconium, with the remainder being cobalt. The 2:17 series of has a maximum operating temperature of 350°C. Special grades of 2:17 are available which can operate to even higher temperatures. SmCo 2:17 requires extremely high magnetizing fields, and multiple pole magnetization is not possible.
| Rare Earth Magnet | |||||
| |||||
