China Product Digital Counting System

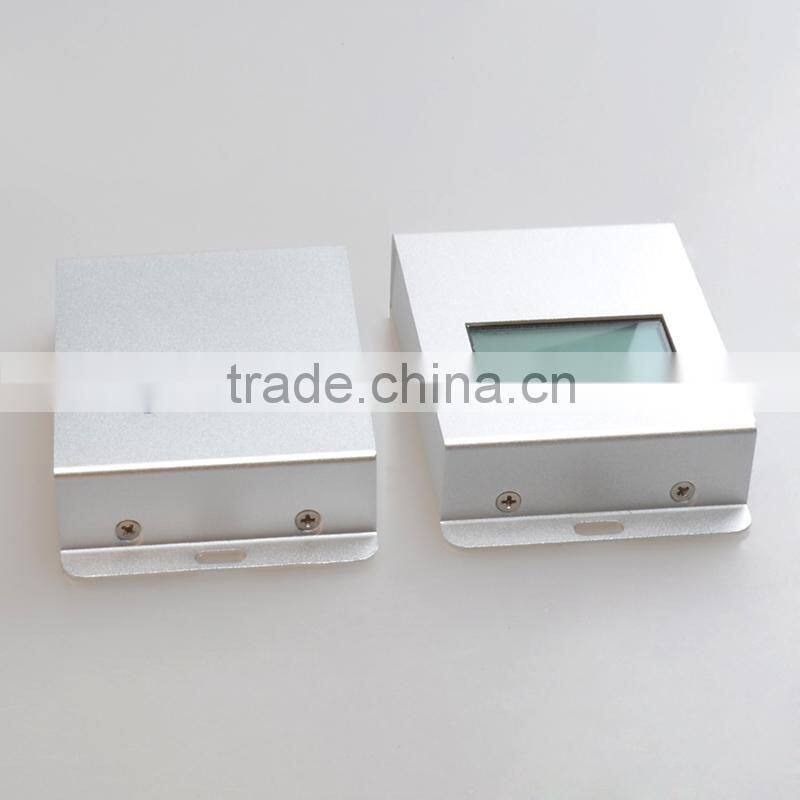

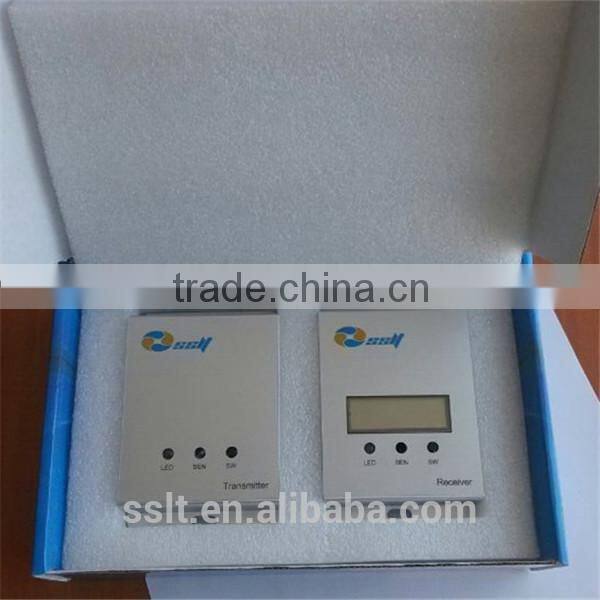

SSLT people counting system

Main functions

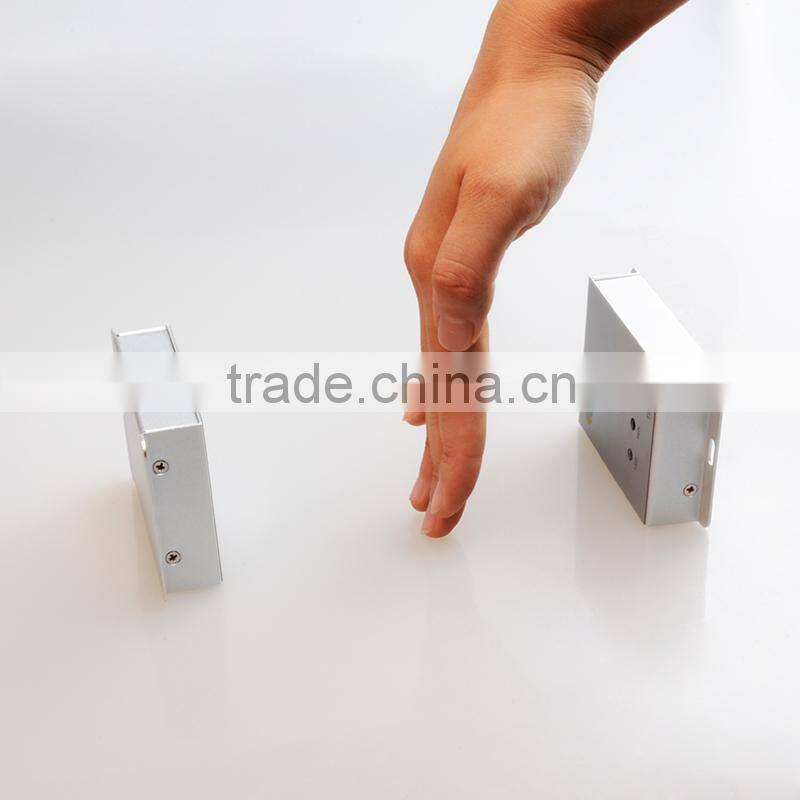

1,  Count the number of persons and other bodies passing through the detected area in forward direction, reverse direction or both directions, respectively.(Bidirectional were counted and displayed separately.)

2,  Detect the moving direction of person or other body blocking infrared ray;

Main specifications

1,  Upper limit of counting: 0-99999;.

2,   Data storage capacity: 365 days;

3,  Design principle: infrared emission and detection

4,  Detecting range: 1-10m

5,  Installation: wall hanging by sticking or screw

6, Operating voltage: DC5.2V

7, Power < 0.5W;

 Operation Steps:
1. Opening
When the whole set is colosed ,Press the swith of the transmiter(Using a slim stick) for3-4 seconds. The indication light of transmitter will be on until it blink. You can loos the switch right after the blink. When the lignt on receiver blinks in dim red ,it means that the transmitter is in working .
When the whole set is colosed ,Press the swith of the receiver(Using a slim stick) for 6seconds, until the number indicates to 88888. You can lose the switch when the screen shows 88888 .The receiver will find the signal from Transmitter . Please make the transmitting hole aims to the receiving hole. If this is suceed ,the indication light will blink a time ,in the same time the number go back to 0 .This means the receiver is in normal working now.
2. Closing.
When the whole set is in working, please press the switch of transmitter and receiver in 6seconds,until the indication light stop blinks.
Instruction of Indication light .
   When the whole set is in working ,if the indication light on receiver keeps on,this means that he signal from transmitter is shielded by something .Or the trasmitting hole and the receiving hole are not aims to each other.
4.  Clear the number .
     When the whole set is in working, you can press the switch of Receiver for 3 seconds, the number will be cleared .
5.  Batteries of the people counter can be used for 1-3years.
When the whole set works 2 years or more ,Pls change the batter (3V )Lithium manganese dry battery .Please close them if you do not use them .
6.   Notes for instaling.
Pls keep the transmitting hole and receiving hole in one horizonal leve ; Pls Installing the tranmitter and receiver vertial to the floor .;Pls keep the receiving hole away from sunshine or strong lights ,Or it will be interferanced to record number in automatically.
