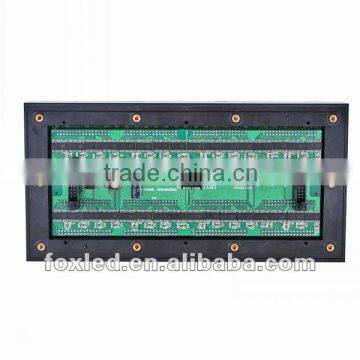

P7.62 high resolution full color DIP indoor led module

Description

Technical parameter

Unit module

Module size

122*244mm

Pixel pitch

7.62mm

Pixel density

17222dots/m2

Pixel configuration

1R1G1B

Led specification

SMD 3 in 1

Pixel resolution

W:32dots*H:16dots

Cabinet

Dimension

976mm*976mm*150mm

Quantities of module

32pcs

Power supply

8pcs

Thermal discharge

Fan*2pcs

Total weight

50kg

Best viewing angle

8-100m

Temperature

Storage: -35°C~+85°C

Working: -35°C~+85°C

Thickness

15cm can adjustable

Remarks: cabinet size can changed, upon project need.

Power

Working voltage

AC220V/110V±10%

Average power consumption

200-300W

Max. Power consumption

≤600W/sqm

Current

≤20mA(single LED)

Control system

CPU

Pentium4 or above

Operating system

WIN98/2000/NT/XP

Control method

Synchronization

Main technical parameter

Driving device

1/4scanning

Drive type

Constant Current driver IC

Refresh frequency

≥400Hz

Grey scale/colors

256 levels of each color(R/G/B)/16.7M color

Brightness of white balance

More than 1800cd/sqm

Brightness adjustment

256 levels of each color(R/G/B)by software

Operating ambient humidity

10%--95%

Video signal

PAL/NTSC

Control system

DVI display card+full color controller card

MTBF

≥10,000hours

Life span

≥100,000hours

Flatness

Tolerance of interpixel ≤0.3mm

Tolerance of modules clearance≤0.6mm

Power switch

Automatic switch

Display mode

1024*768

Communication distance

Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.

Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM

Software

LED media player
