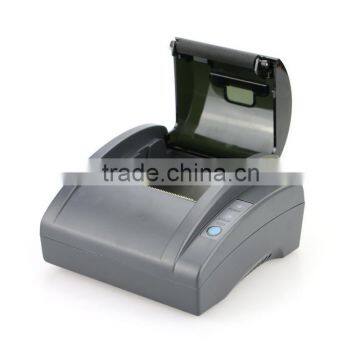

Thermal printer with RS232 serial port and support printing words,pictures,barcode----HFE-629
USD $1 - $45.99
/ Set
100 Sets(Min.Order)
- 100 Set / Sets per Month
- Hongkong
- T/T Credit Card
You May Like
-
Original manufacturer 58mm thermal printer with RS232 and RJ45 port--HFE629
-
High quality barcode reader module could embedded in the equipment-----Gc002
-
High quality oem 2d barcode reader module with low comsupsion-----Gc002
-
High quality oem 2d barcode scanner module with low comsupsion-----Gc002
-
Lowest price 58mm thermal printer with Serial interface 90mm/s thermal printer for sale
-
Newest!!! cheap $19/set receipt thermal printer with cashier drawer port to help you manage your business
Product Details
| Products Status | Stock | Type | Dot-matrix | |
| Style | Black And White | Use | Barcode Printer | |
| Interface Type | Other, Serial port RS232 | Max Paper Size | 58mm | |
| Black Print Speed | 60mm/s | Color Print Speed | 48mm/s | |
| Max. Resolution | 8 dots/mm | Brand Name | HAODEXIN | |
| Model Number | HFE-629 | Place of Origin | Guangdong, China |
Product Description
Specifications
1.Low voltage,low power consumption2. Serial interface
3.Thermal line printing
4.58mm paper width
Thermal printer with RS232 serial port and support printing words,pictures,barcode----HFE-629
l Application
- Medical equipment
- Fire protection warning
- Measuring equipment
- Power equipment
- Electric weighing instrument
- Bill&Ticket printing
- Invoice printing
l Brief advantage
1.Ultra small&Ultra thin.
2.Totally enclosed compact design.
3.The appearance design is fashion and pragmatic.
4.Could be easily embedded into the customer’s system device.
5.Built-in the original import print head,low voltage,low power design.
Product Description
| Printing performance | Printing Method | Thermal line printing |
| Dots per line | 384 dots/line | |
| Resolution | 8dots/mm | |
| Effective print width | 48mm | |
| Printing speed | 60mm/s(Max) | |
| Feed width | 0.125mm | |
Character/Chinese character/picture/ barcode | Character per line | 32/line |
| Chinese Character per line | 24 dot matrix:16,16 dots matrix:12(enlarge 1 time) | |
| Standard ASCII code dot matrix | 24 dots matrix:12*24,16 dots matrix:8*16 | |
| Standard ASCII size(W*Hmm) | 24 dots matrix:1.5*3, 16 dot matrix:2*4 | |
| Printing Character | international standard 2312-80 simplifide style font library | |
| Chinese Character dot matrix | 24*24,16*16,12*12 dot matrix | |
| Chinese Character size | 24dots matrix:3*3,16 dot matrix:4*4(enlarge 1 times) | |
| Graph/Code | support | |
| Detection mode | Paper out testing | Yes |
| Overheating test&protection | Yes | |
| Control system | Out interface | Serial port RS232 Baud rate:9600bps |
| Bumper | 64K | |
| Printing command | ESC/P printing command,IBM/EPSON ESP/compatible | |
| Printing drive | WIN2000/NT/XP/WIN7/WINCE serial port | |
| Power supply | Operation voltage | DC9V-39V |
| Average current | 1A~1.5A | |
| Peak point current | 2A~3A | |
| MCBF | Printer head life | 100 millions pause/50Km printing length |
| Printing Paper | Paper type | common thermal paper |
| Printing paper width | 58mm | |
| Paper thickness | 65+/-5mm | |
| Scroll size | 50mm | |
| Paper installation method | Easy to load paper,flip cover for opening | |
| Cutting paper method | Tear(Tooth shape untying) | |
| Physical property | Operating temperature | 0~55 degree |
| Storage temperature | -25- 75 degree | |
| Operating humdity(%RH) | 10~90RH% | |
| Weight(gross weight) | 280g(include paper) | |
| Net weight | 230g(without paper) | |
| Size | 108mm*103mm*68mm compact design) |
Packaging
Packaging dimension:208*178*78mm
Weight:1.6kg
Shipping
Ship our products via DHL,EMS,UPS,TNT,FedEx(door to door)
Normally,it will take 3-7 working days for us to ship the goods to the destination,some remote place will need 1-3 days more
Our Service
1.All the inquiry will be replied in 8 hours
2.Provide 2 years warranty
3.Provide technical support during its life time
4.Choose the most suitable shipment way for you
5.Replace the broken parts with new parts in the next order
6.Track the order until you receive the goods
