china best price and service P8 outdoor waterproof advertising HD led display Quality Choice

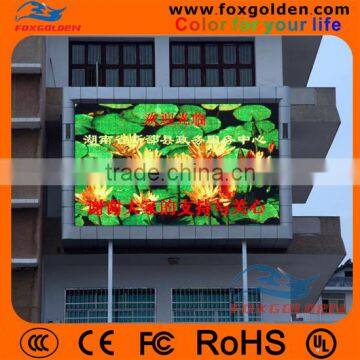

Outdoor led display project:

 Installation:





Model	FOX-P6	FOX-P8	FOX-P10	FOX-P16
LED Type	DIP	DIP	DIP	DIP
LED driving method	1/4 dynamic scan	1/4 dynamic scan	1/4 dynamic scan	Static
Board Pixels	32*32 (W*H)	32*16 (W*H)	16*16 (W*H)	16*16 (W*H)
LED board size(mm)	192*192*25	256*128*25	160*160mm	256*256mm
Normal Cabinet  size	960*960	768*768mm	960*960mm	1024*1024mm
Net weight	43kg	38kg	43kg	48kg
Power	AC220/110 ± 10%, 47~63Hz
Water proof	Front IP65/Rear IP43
Consumption	≤1500W/m2
Viewing angle (W*H)	140° / 70°	140° / 70°	140° / 70°	140° / 70°
Brightness	≥6000 cd/m2	≥7000 cd/m2	≥7000 cd/m2	≥6000 cd/m2
Pixel density	27777dots/m2	15625dots/m2	10000dots/m2	3906dots/m2
Operating temperature	-20ºC to +80ºC
Operating humidity	10% to 95%
Lifetime (50%brightness	100,000 hours
Refresh rate	4200 Hz	4200 Hz	4200 Hz	4200 Hz
Module weight	0.78kg	0.60kg	0.42kg	0.92kg
Brightness level	Manual 100 levels,automatically 16 levels.





Outdoor Screen:

P6

P8:

P10:

Advantage:
Long Time:
Lamp:EPISTAR, 5 years warranty, Working Time:15 years.

Save-energy:
IC: MBI5124, Working voltage: 3.3V, Save 35%, Waterproof: ip65.

Well-known brand power supply , saving energy and high efficiency.

P10 adopt Meanwell power supply, conversion ratio up to 82%, low heat dissipation and long life span. Normal power supply conversion ratio is under 80%, and high heat dissipation, not stable, low cost.



Unique guide rain trough design
same time improving cabinet strength,prevents cabinet damage during transportation.



Appcations:

Delivery Time and packing:

1. Delivery time: Accomplish manufacturing within7- 15 days after receiving the deposit.

2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

3.Package:(1)carton (2) anti-shaking wooden case (3)  flight case

Q1: When is the delivery time?

A1: we will accomplish manufacturing within 10 days after receiving the deposit.

Q2: What is the payment method?

A2: We support a variety of payment methods, the most common is the TT.

Q3: What's the pixel pitch for Outdoor LED Display Screen?

A3: Outdoor (P6mm / P8mm/P10mm)

Q4: Where is it used for?

A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.

Q5: Can it play HD video?

A5: Yes, it can realize HD video function with Linsn controlling system.

Q6: What's the controlling system?

A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.

Q7: How about the size of project?

A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.

Q8: How about your service?

A8:

1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.

---------------------------------

Email:  info @foxgolden.com

Whats App: +86 15118019850

 Welcome to contact us if you need more information or have any specialized inquiry. Thank you!!!

FOXGOLDEN best price P8 outdoor waterproof HD led display for advertising
