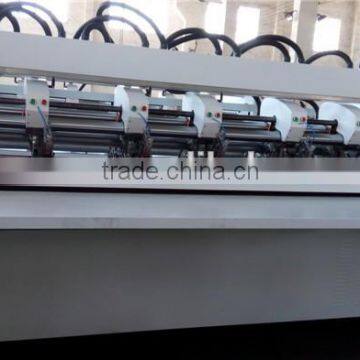

SMBD-QDD-3000 Knife & creaser both move by electric thin blade slitter scorer

FOB Price

US$ 3,000 - 8,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Machinery & Hardware
Packaging Type	Case, Film	Packaging Material	Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380V / 415V/ 440V or as your need	Power	3-7KW
Place of Origin	Hebei, China	Brand Name	SOOME
Model Number	SMBD-QDD-3000	Weight	2T
Dimension(LWH)	as per different model	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Knife & creaser both move by electric thin blade slitter scorer

Function and Features

1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 300mm.

3. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

4. Grinding part: adopt manual and pneumatic two types of blade grinding , it could be grinding when working, improve work efficiency.

5. Blade and creaser both move by electric.

6. The scorer part adopt above & lower button for rectification, can make the scorers align center.

7. The former and latter rubber rollers minish the processable paper length. Can also slitting without creasing.

8. Option: Blade & scorer pneumatic lifting up and down.

9. Can cut and crease 15mm thick cardboard.

Technical parameters

TYPE	SMBD-QDD-1600	SMBD-QDD-1800	SMBD-QDD-2000	SMBD-QDD-2500	SMBD-QDD-2700	SMBD-QDD-3000
Effective width	1400mm	1600mm	1800mm	2300mm	2500mm	2800mm
Speed	130m/min	130m/min	120m/min	100m/min	100m/min	80m/min
Total power	4kw	4kw	4kw	5kw	5kw	7.5kw
Min. Slitter-spacing	130mm	130mm	130mm	130mm	130mm	130mm
Min. Score-spacing	130mm	130mm	130mm	130mm	130mm	130mm
Min. Paper length	300mm	300mm	300mm	300mm	300mm	300mm
Dimensions L x W x H (mm)	22507701350	24507701350	26507701350	31507701350	33507701350	36507701350
