Home > Products > Network Cabinet & Accessories > 19'' Cabinet Network
19'' Cabinet Network
- NINGBO
- T/T Credit Card
You May Like
Product Details
| Products Status | Stock | Cabinet Standard | 19'' | |
| Material | SPCC quality cold rolled steel | Size | 37U | |
| Place of Origin | Zhejiang, China | Brand Name | LUCKTEK | |
| Model Number | LK-JASC |
Product Description
Specifications
19'' Cabinet Network1:High quality with competitive price
2:Nice apperence and design
3.OEM is welcome
4.Durable

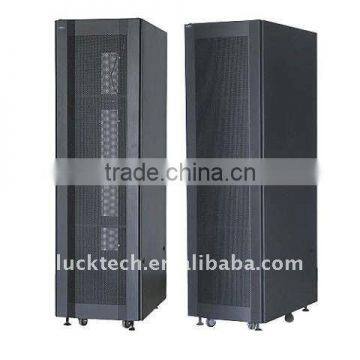

19'' Cabinet Network
Feature:
Exquisite design with precise craftsmanship;
Aluminum profiled frame, light weight and easy to transfer;
Tempered glass front door with over 180 turning degree;
High-density perforated rear door enable quipment ventilation and reliable operation with ventilation rate above 50%
Removable side panel, easy to install and maintain(lock optional)
Connected by four-corner to ensure the strength and stability
Adjustable feet and castors sre available at the same time
Adjustable cable entry with dust-proof on the top cover and bottom panel
Advanced moon-shaped locks
Efficient baying kit of cabinet, Earthing kit
Supplied as a flat packing, which is about 2/5 of the assembled volume, easy to shipping and assemble
Optional Accessories for common using
Standard:
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491 Standard
Material:
Frame: Aluminum
Others: SPCC quality cold rolled steel
Thickness: Mounting profile: 2.0mm; mounting angle: 1.5mm; other: 1.2mm
Loading Capacity:
Static loading: 800kg
Degree of protection:
IP20
Surface finish:
Degreaseing, Pickling, Phosphating, Powder Coated
Size:
| Model No. | Capacity (U) | Width × Depth (mm) | Model No. | Capacity (U) | Width × Depth (mm) |
| LK-SC-JA6618 | 18 | 600 × 600 | LK-SC-JA6637 | 37 | 600 × 600 |
| LK-SC-JA6818 | 600 × 800 | LK-SC-JA6837 | 600 × 800 | ||
| LK-SC-JA6918 | 600 × 900 | LK-SC-JA6937 | 600 × 900 | ||
| LK-SC-JA6018 | 600 × 1000 | LK-SC-JA6037 | 600 × 1000 | ||
| LK-SC-JA6622 | 22 | 600 × 600 | LK-SC-JA6642 | 42 | 600 × 600 |
| LK-SC-JA6822 | 600 × 800 | LK-SC-JA6842 | 600 × 800 | ||
| LK-SC-JA6922 | 600 × 900 | LK-SC-JA6042 | 600 × 1000 | ||
| LK-SC-JA6022 | 600 × 1000 | LK-SC-JA6242 | 600 × 1200 | ||
| LK-SC-JA6627 | 27 | 600 × 600 | LK-SC-JA6645 | 45 | 600 × 600 |
| LK-SC-JA6827 | 600 × 800 | LK-SC-JA6845 | 600 × 800 | ||
| LK-SC-JA6927 | 600 × 900 | LK-SC-JA6045 | 600 × 1000 | ||
| LK-SC-JA6027 | 600 × 1000 | LK-SC-JA6245 | 600 × 1200 | ||
| LK-SC-JA6632 | 32 | 600 × 600 | LK-SC-JA6647 | 47 | 600 × 600 |
| LK-SC-JA6832 | 600 × 800 | LK-SC-JA6847 | 600 × 800 | ||
| LK-SC-JA6932 | 600 × 900 | LK-SC-JA6047 | 600 × 1000 | ||
| LK-SC-JA6032 | 600 × 1000 | LK-SC-JA6247 | 600 × 1200 | ||
| Model No. | Capacity (U) | Width × Depth (mm) | Model No. | Capacity (U) | Width × Depth (mm) |
| LK-SC-JA8618 | 18 | 800 × 600 | LK-SC-JA8637 | 37 | 600 × 600 |
| LK-SC-JA8818 | 800 × 800 | LK-SC-JA8837 | 600 × 800 | ||
| LK-SC-JA8918 | 800 × 900 | LK-SC-JA8937 | 600 × 900 | ||
| LK-SC-JA8018 | 800 × 1000 | LK-SC-JA8037 | 600 × 1000 | ||
| LK-SC-JA8622 | 22 | 800 × 600 | LK-SC-JA8642 | 42 | 600 × 600 |
| LK-SC-JA8822 | 800 × 800 | LK-SC-JA8842 | 600 × 800 | ||
| LK-SC-JA8922 | 800 × 900 | LK-SC-JA8042 | 600 × 1000 | ||
| LK-SC-JA8022 | 800 × 1000 | LK-SC-JA8242 | 600 × 1200 | ||
| LK-SC-JA8627 | 27 | 800 × 600 | LK-SC-JA8645 | 45 | 600 × 600 |
| LK-SC-JA8827 | 800 × 800 | LK-SC-JA8845 | 600 × 800 | ||
| LK-SC-JA8927 | 800 × 900 | LK-SC-JA8045 | 600 × 1000 | ||
| LK-SC-JA8027 | 800 × 1000 | LK-SC-JA8245 | 600 × 1200 | ||
| LK-SC-JA8632 | 32 | 800 × 600 | LK-SC-JA8647 | 47 | 600 × 600 |
| LK-SC-JA8832 | 800 × 800 | LK-SC-JA8847 | 600 × 800 | ||
| LK-SC-JA8932 | 800 × 900 | LK-SC-JA8047 | 600 × 1000 | ||
| LK-SC-JA8032 | 800 × 1000 | LK-SC-JA8247 | 600 × 1200 | ||
