Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | RG59 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Digital RG59 B/U CCTV Video RF Aerial Coaxial Cable

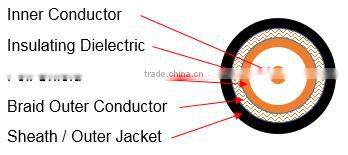

In short, the Coax City RG59 is a high quality 75 ohm coaxial (coax) cable, that has a copper clad steel central conductor, an FPE (foamed polyethylene) insulating dielectric, a double screen / shield foil & braid and an outer jacket of thermo-plastic PVC.
Inner Conductor:
This is the conductor or wire in the centre of the coaxial cable. The Coax City RG59B/U has a Copper clad steel central conductor that is 0.58mm in diameter.
Insulating Dielectric:
This is a solid translucent Polyethylene SPE insulator, separating the central conductor from the screening or shielding. Coax City use SPE in the RG59B/U Coaxial Cable as it is robust and reliable.
Screen or Shield:
A single dense braid is used to screen or shield our RG6 Coaxial Cable, this protects the signals from EMI (Electro-Magnetic) and RFI (Radio Frequency) interference. The braid is made from copper clad aluminium.
Outer Jacket or Sheath:
The Coax City RG59B/U Coaxial Cable uses a thermo-plastic PVC (Polyvinyl Chloride) outer jacket or sheath, this adds protection to the cable and allows the cable to be flexible.
By using an SPE (Solid Polyethylene) insulating dielectric and the PVC (Polyvinyl Chloride) outer jacket, a maximum bending radius of 10 x Diameter can be achieved, almost eliminating kinks in the cable.
Technical Information:
Roll: 100M (Metres)
Roll Weight: 4.06Kg
Roll Dimensions: 220mm Diameter x 130mm
Inner Conductor:
Material: CCS - Copper Covered Steel
Diameter: 0.58mm
Insulating Dielectic:
Material: SPE - Solid Polyethylene
Colour: Translucent
Braid:
Material: CCA - Copper Clad Aluminium
Colour: Copper
Sheath / Outer Jacket:
Material: PVC - Polyvinyl Chloride
Diameter: 6.0mm
Colour: Black
Electrical Characteristics
Impedance: 75Ω
Rated Voltage: 300V
Rated Temperature: 60°C
Insulation Resistance: 200MΩ/M
Application:

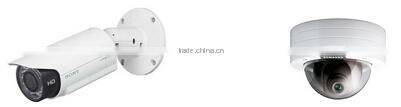

CCTV - Security Cameras, PTZ Cameras, CCTV Cameras
Coax City RG59B/U coaxial cable is a perfect choice for CCTV installations and custom made CCTV cables, as it can be cut to exact lengths, then terminated with BNC connectors.
Our RG59B/U provides a high quality coaxial cable for CCTV Video signals. With its durable dense braid, RG59B/U coaxial cable is capable of longer installation lengths, while reducing EMI (Electro Magnetic) and RFI (Radio Frequency) interference.
