LUCKTECH DMX512 TYPE 2 CORES CABLE
- 0 per Month
- NINGBO OR SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | LUCKTEK | |
Model Number | DMX512-2 | Conductor Material | Other, TINNED COPPER | |
Insulation Material | PE | Jacket | Other, PUR | |
Number of Conductors | 2 Cores | Application | Industry |

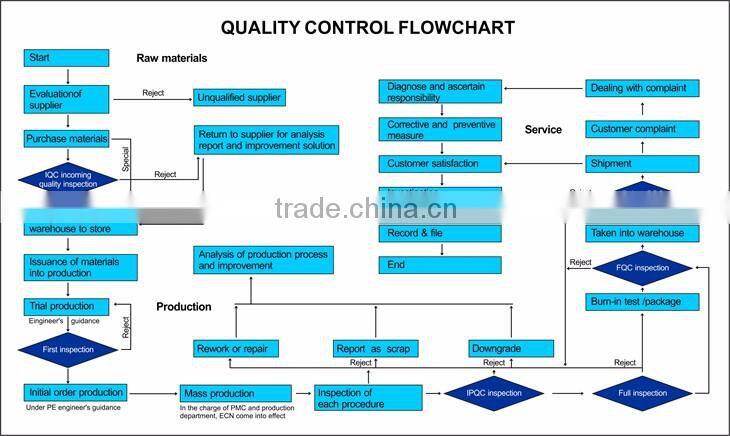

Product Description
LUCKTECH DMX512 TYPE 2 CORES CABLE
MX-512 is the most commonly used data protocol for theatrical control. For a more technical overview of DMX see the Wikipedia article on DMX.
DMX is an international ANSI standard maintained by ESTA. It is not proprietary to any one manufacturer. An enhancement to DMX512 called RDM is also available in some ETC products and is detailed in its own wiki page [RDM].
Topology & Connectors
Troubleshooting DMX
- Is the DMX terminated? Many people treat the fitting of a termination resistor as optional; but although DMX may work without it, in this state a small change to the DMX network, like adding another cable, may stop the system from working or cause intermittent effects like flicker of dimmers, twitching of moving lights and so on. Adding termination can help eliminate these effects
- Is the cabling OK? DMX may continue to work partially even under extreme conditions like having one half of the data pair broken. If you have a fixture which is misbehaving, take it and connect it directly to the DMX source with a short jumper cable. If it now works there is an issue with your cabling to be investigated
- Is the device OK? Damage to device DMX receivers can occur in many ways; lightning storms are a common problem. If the device doesn't respond to DMX when connected directly to a known good DMX source via a known good cable, the device itself may need service to repair a damaged DMX input
- Does the device support full speed DMX? The DMX512 standard allows a very wide range of timings for the parameters of the DMX signal. Some devices do not support the full range of timings. In order to help troubleshoot this, ETC products feature output speeds that can be altered to help slower devices. All current ETC products support DMX output speeds of Max (Default), Fast, Medium and Slow. If you have a DMX device that still misbehaves even when connected directly to a known good DMX output, try reducing the DMX speed of the DMX output to see if the problem improves. For further information on DMX speeds see the [DMX Speed] article.
Name | DMX512 2 CORES |
Properties | PUR Master Blend |
Properties | Analog |
Properties | Digital 110 Ω AES / EBU |
Properties | OFC oxygen free copper |
Application area | Installation |
Application area | Studio / Broadcast |
Application area | Mobile outdoor / indoor |
Application area | ELA 100 V |
Application area | Stage / live |
Application | DMX |
Colour | black |
Colour detailed | black |
Signal transmission | symmetrical |
Construction | [2(2LI2YS0,34mm²)(ST)]CY |
Jacket material | PUR-Blend |
Jacket Ø [mm] | 7,00 |
Number of Channels (AES/EBU, DMX) | 1 |
Inner conductor (AES/EBU, DMX) | 4 |
Inner conductor (AES/EBU, DMX) [mm²] | 0,34 |
Inner conductor Ø (AES/EBU, DMX) [mm] | 0,66 |
AWG (AES/EBU, DMX) | 22 |
Shielding | Copper-cross mesh, tined + AL / PT foil |
Copper strands (AES/EBU, DMX) | 7 |
Copper strand Ø (AES/EBU, DMX) [mm] | 0,25 |
Conductor insulation material | PE |
Conductor insulation Ø [mm] | 1,70 |
Weight per 1 m [g] | 65 |
UV-resistant | yes |
Fire load per m [kWh] | 0,22 |
Style variant | round |
Shielding factor [%] | 100 |
Packing | 100 m spool |
Temperature min. [°C] | -25 |
Temperature max. [°C] | 70 |
Width [mm] | 7 |
Height [mm] | 7 |
Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] | 58 |
Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] | 17,6784 |
Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] | 100 |
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] | 30,48 |
Impedance OHM | 110 |
Insulation resist. per 1 km OHM | 5 |
Insulation resist. per 1000 feet OHM | 1,524 |
Insulation resist. per 1 km (AES/EBU, DMX) OHM | 5 |
Insulation resist. per 1000 feet (AES/EBU, DMX) OHM | 1,524 |
Conductor resistance per 1 km OHM | 53 |
Conductor resistance per 1000 ft. OHM | 16,1544 |
Shield. resistance per 1 km OHM | 15 |
Shield. resistance per 1000 ft. OHM | 4,572 |
