homage electric motor 24v 220v inverter with battery charger
- Ningbo / Shanghai / Shenzhen
- T/T Credit Card
You May Like
-
fan single phase off grid rechargeable power inverter 240v
-
off grid dc ac home power ups inverter 12v 220v 1200v with charge
-
price dc to ac circuit 12v/220v inverter with charger
-
price transformers inverter with charger 24v 230v
-
solar automobile 12v to 230v inverter circuit with charger
-
dc-ac 96v best home 1000w ups inverter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Huangxiang, or customized | |
| Model Number | HXU-1000M | Output Power | Other, 1000W | |
| Output Type | Single | Size | 235*150*100mm(product size) | |
| Weight | 3.8 kg(net weight) | Input Voltage | 12V DC / 24V DC / 48V DC / customized | |
| Output Voltage | 110V AC +/- 10V or 220V AC +/- 10V | Type | DC/AC Inverters | |
| Output Frequency | 50Hz / 60Hz | Output Current | 9.0A/110VAC or 4.5A/220VAC |
Product Description

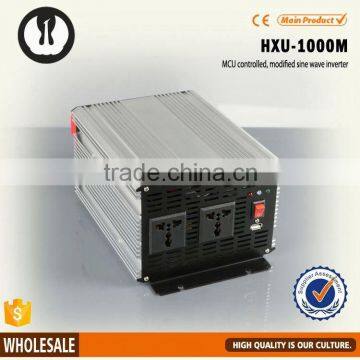

homage electric motor 24v 220v inverter with battery charger
| Products Specification | ||||
| Ⅰ | Battery Input Properties | Note | ||
| 1 | Nominal Input Voltage | 13.2VDC | ||
| 2 | Input Voltage Range | 11-16VDC | ||
| 3 | Low Voltage Cut Off | 10.0±0.3VDC | ||
| 4 | Low Voltage Restart | 12.0±0.3VDC | ||
| 5 | Low Voltage Alarm | 10.5±0.3VDC | ||
| 5 | High Voltage Cut Off | 16.0±0.3VDC | ||
| 6 | High Voltage Restart | 15.0±0.3VDC | ||
| 7 | No Load Current | ≤0.4A | ||
| 8 | Input Fuse | 30A×4 | ||
| 9 | Input Reverse Protection | By fuse | ||
| AC Output Properties | Note | |||
| 1 | AC Voltage Range | 120±5VAC | ||
| 2 | AC Output Frequency | 60±1Hz | ||
| 3 | Continuous Output Power | 1000W | ||
| 4 | Overload Protection | 1020—1100W | ||
| 5 | Peak Output Power | 2000W | ||
| 6 | Output Voltage Waveform | Sine Wave | ||
| 7 | Total Harmonic Distortion | ≤3% | Linear Load | |
| 8 | USB Output Voltage | |||
| USB Output Current | ||||
| 9 | Efficiency | ≥90% | ||
| 10 | Output Short Circuit Protection | Yes | ||
| 11 | High Temperature Protection | ≤65°C | Restart | |
| Ⅱ | Charger Properties | Note | ||
| 1 | AC Input Voltage Range | 90—135VAC | ||
| 2 | AC Input Voltage Frequency | 47---63Hz | ||
| 3 | AC Input Current | 2.0A@220VAC | ||
| 4 | AC Input Power | 180W | ||
| 5 | DC Output Voltage | 8.5—15.0VDC | ||
| 6 | DC Output Power | 150W | ||
| 7 | Bulk charge current rating | 10A±1.0A | ||
| 8 | Bulk charge voltage rating | 14.7V±0.3VDC | ||
| 9 | Float charge voltage rating | 13.7V±0.3VDC | ||
| 10 | Light switching current | 2.0A | Typical | |
| 11 | Efficiency | ≥86% | ||
Q: How's the delivery time?
A: usually it will take about 10-18 workdays for production.
Q: Could you offer Form A or C/O?
A: It totally not a problem. We can prepare relative documents to forging affairs office or other office to apply for this certificate.
Q: Would you accept to use our logo?
A: If need change the label on the buyer: MOQ 100pcs Free of charge, base on buyer provide label artwork.
If need make any silk printing on products: MOQ:1500pcs of each item Free of Charge.
If need change package quantity in outer carton, or carton material or carton thickness, may cause price
Q: Where is your market?
A: Our products are popular in Egypt, America, and Australia and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q: Does the inverter use directly?
A: No. The inverter is a machine transfer DC voltage to AC voltage. It must connect a power source, like battery and solar panel, then transfer the energy to power the loading products.
>Quality |
RGD less than 2%(Good feedback from our online buyers, agent). |
CE/EMC, ROHS for some items. |
Update our MCU regularly to improve transfer efficiency. |
Pre-sales technical support plan. |
1 year warranty |
|
>Price: |
Update the production cost at irregular intervals to make sure our price is lower 5%-10% than most inverter factories, base on same quality of inverter. |
>Accept ODM: |
Own R&D department: one chief engineer and three maintenance engineers, one structural engineer. |
|
>After-sale service: |
If the goods are broken within 1 year, we will pay the shipment charge to ask you send back or send the free goods to you at next order, as the case may be. |
Unscheduled visit customers and shared new products or marketing information. |
Responding to complaints within 24 hours. |
>Packaging: |
Factory original box, original design on product, orginal package for export carton. |
If need change the label on thebuyer: MOQ 100pcs Free of Charge, base on buyer provide label artwork. |
If need make any silk printing on products: MOQ:1500pcs of each item Free of Charge. |
If need change package quantity in outer carton, or carton material or carton thickness, may cause price increase. |
|
>Delivery time |
Sample: 5-7 days after get your samples request and samples charge. |
Mass production: 15-25 days after order confirmed and get buyer's deposit. |
>Payment terms: |
T/T, 30% deposit in advance, 70% upon shipment. |
Inversor/inbertsore/Inversor/omvormer/inversigilo/invertteri/cruce/varyateur/Inverter/keitiklis/inversor/invertor/ inversor/gwrthdröydd
|
| Modified Sine Wave Inverter Pure Sine Wave Inverter UPS Solar DC System |
| |
| Solar Controller AC Charger Radio Remote Control |
