Home > Products > SDG-C series > 50hz 68kw C Engine Diesel Power Generator
50hz 68kw C Engine Diesel Power Generator
US$ 1 - 2
/ Unit
1 Unit(Min. Order)
- FUZHOU
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | SDS | |
| Model Number | SDG-C68S.1 | Output Type | AC Three Phase | |
| Speed | 1500rpm | Frequency | 50hz | |
| Rated Power | 85kva | Rated Voltage | 380V |
Product Description

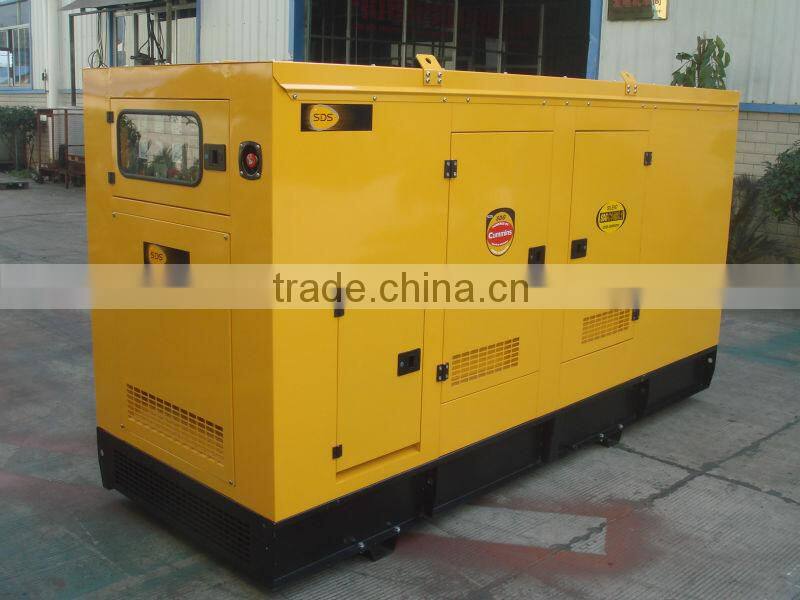

50hz 68kw C engine diesel power generator
1)1 year/1000 hours warranty
2)C diesel engine
3)S alternator
Important Features:
*1 year/1,000 hours limited warranty
*Automatic starting system
*C diesel engine + Battery charging alternator
*Factory load bank tested
*Automatically shut off with low oil pressure, high water temp, over-speed, and high oil temperature
*Emergency stop button mounted externally
*Spring mounted vibration isolators
*Critical muffler
*Battery rack and cables
| Model | SDG-C68 | |
| Phase | Three | |
| Frequency(Hz) | 50 | |
| Structure Character* | Silent | |
| Rated Power (KW/KVA) | 68/85 | |
| Rated voltage(V) | 400 | |
| Engine Power (KW) | 86-92 | |
| Noise level(dBA(@)7m)(zero load~full load)** | 70 | |
| Fuel Consumption Rate (L/h, under 100% load) | 20.5 | |
| Oil Consumption Rate (L/h) | 0.07 | |
| Overall Dimension (mm)(L*W*H)** | 2150*850*1300 | |
| Net Weight (KG)** | 1000 | |
| Engine Specification | ||
| Rated Model | 6BT5.9-G2 | |
| Rated Power (KW) | 86 | |
| Engine Speed (rpm) | 1500 | |
| Cylinder No. | 6 | |
| Configuration | Vertical, 4-stroke, Turbocharge | |
| Displacement (L) | 5.9 | |
| Fuel tank capacity(L) | 130 | |
| Bore×Stroke (MM) | 102*120 | |
| Compression Ratio | 17.5:1 | |
| Oil Capacity (L) | 16.4 | |
