Home > Products > extrusion line > Biodegradable Plastic Film Dies
Biodegradable Plastic Film Dies
- Ningbo

You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JWEL | |
| Model Number | JWEL 0035 film die | Shaping Mode | Die Casting | |
| Product Material | Steel | Product | Vehicle Mould |
Product Description
Specifications
film extrusion die1. High strength steel
2.Good quality, thoughtful services
3. Precise details of proces
Name  | Extrusion coating & laminating die  |
Usage for products  | Plastic film CPP / CPE / PP / PE / EVA / LDPE / TPU  |
Film thickness  | 0.005-0.02mm  |
Die width  | 300mm-8000mm or per your request  |
Die material  | 2738 from Germany or P20  |
Lips adjustment system (for the upper die lip)  | 1.Manual full push flexible fine-turning  |
2.Automatic full push flexible fine-turning  | |
3.Manual push & pull fine-turning  | |
4.Automatic push & pull fine-turning  | |
Wide-size adjustment method  | With the reduction of the thick edge, the inner block-type lead screw adjustment device can continuously adjust the die wide-size online to maximize the cost savings.  |
Flow channel  | Branch-tube type  |
Heat Voltage  | 220V or on customer’s request  |
Heating way  | Heating bars made of stainless steel from Italy  |
Cable connection:  | Close connecting with protection cover  |
Screws  | High strength at 12.9 grade  |
Polishing  | Lips and surface of flowing: 0.02-0.03(μm),Other surfaces: 0.03-0.04(μm).  |
Chrome thickness:  | 0.035-0.045mm  |
Surface hardness:  | 60-70HR  |
Feeding type:  | Round or square or special  |
Installation  | On costumer’s request  |

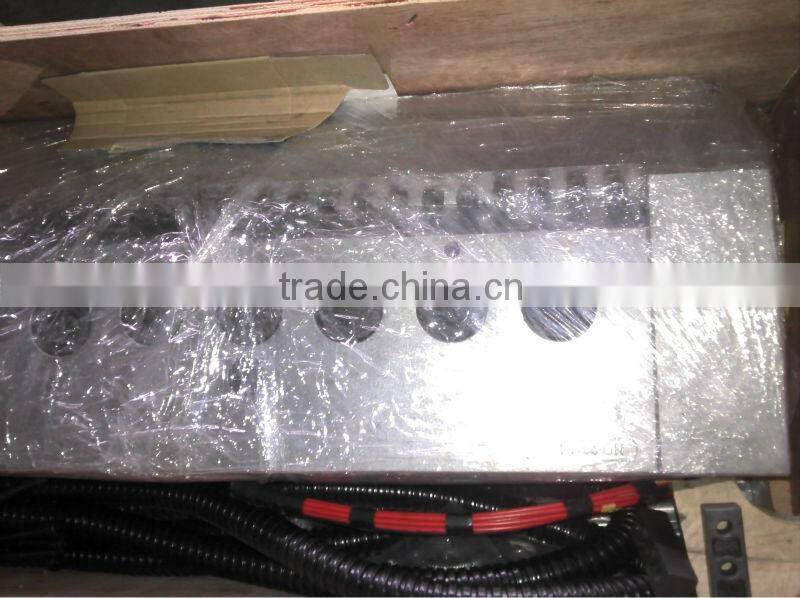

1. Packaging Detail:
Outside package: Standard export wooden cases;
Inner package: Bubble wrap.
2. Delivery Detail:
Die length< 2000mm : within 30 days, 2000mm<Die length<3000mm, within 45 days.

  Jing Wei is a company engaged in the extrusion die flat die, hydraulic screen changer, multi-layer coextrusion line for 10 years for several companies.

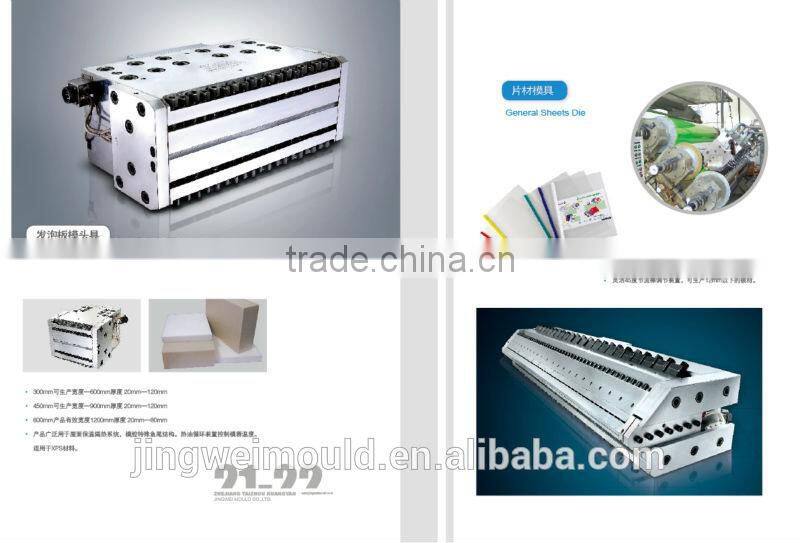

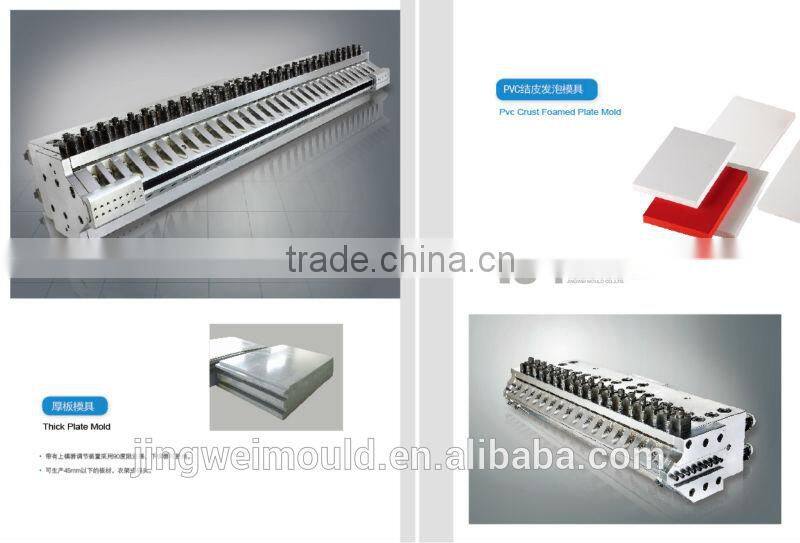

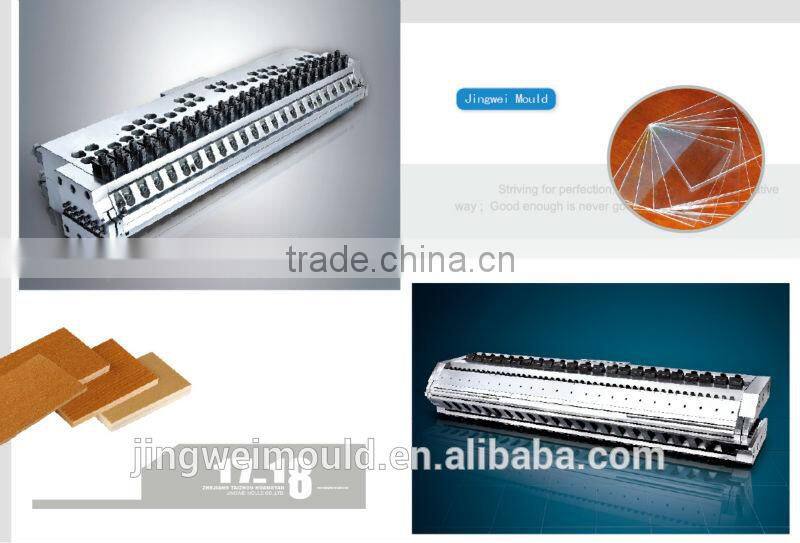

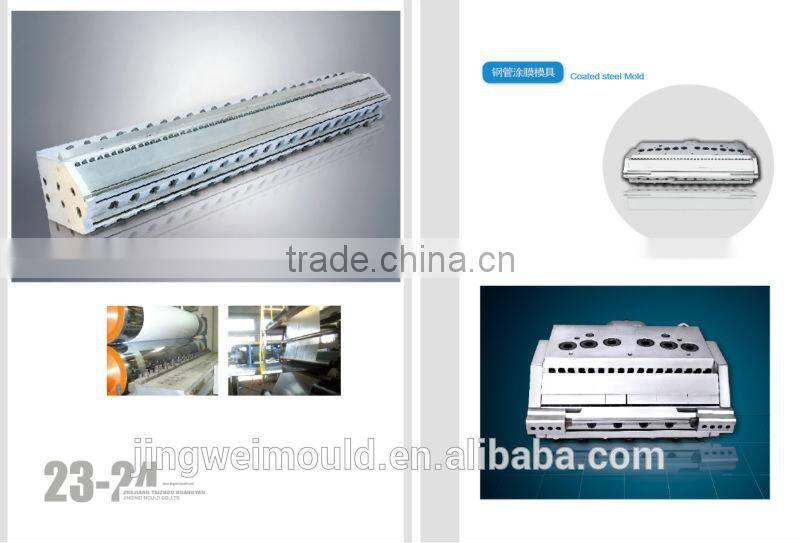

Main products: all kinds of sheet die, mold plates, cast film lamination mold, plastic plate mold, foam board mold, extrusion mold plates, hollow grid plate mold, hydraulic screen changer, quick changer, swing leaves coextrusion, etc.
Our commitment: meet the actual requirements, three packs of one year of normal production quality.
Taizhou Huangyan Jingwei Mold Co.,Ltd.,a specialist manufacturer of flat extrusion dies,has engaged in the research ,development and manufacturing of extrusion plates,sheet film single layer or multilayer co-extrusion die,distributors,melt pump,hydraulic screen changer and etc.With the abundant manufacturing experience and continuously technical innovation ,equipped with moderm CNC processing machines ,our company is making the products to be much better.Our products are being widely used for PP.PE.APET,PETG,PS,HIPS,ABS,PC,PMMA,PVC,EVAand other materials,production.Our extensive manufacyuring experiences and constant technological as well as state-of-the-art machining centers ensure constantly-improving of die quality.
At Jingwei,every dies are customized to meet the most stringentdemand of customers.Our engineers will coordinate with each customer to attain the attain the optimized configuration and the best design.
Excellent quailty,fine reputation and perfect service are the unchanged mission of every jingwei people.In the coming days ,Jingwei will produce unsurpassed dies and delivery more value to our customers and partners than they have expected by offering top quality and perfect service.

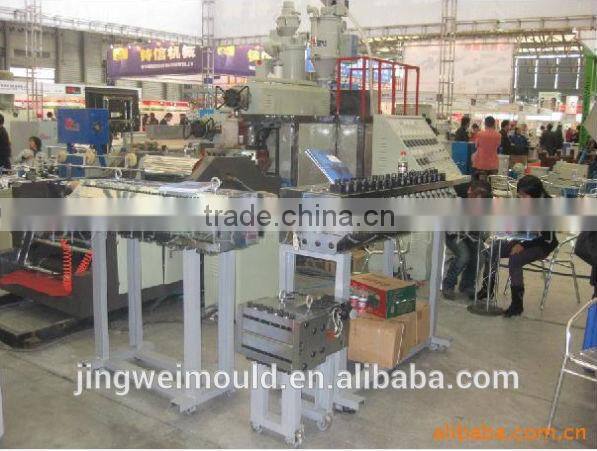

In exhibition
We can manufacture the mould as your requirement, you can offer us your own CAD drawings,or we can design the drawings for you.
Comprehensive cost control service;
Mould designing service;
Emergency manufacturing delivery service:;
Mold debugging Service;
Customer production training service;
Contact Us
                - Taizhou Huangyan Jingwei Mould Co., Ltd.
 - Contact namesam zhang Chat Now
 - Phone86-576-84020239
 - AddressXintang industry development zone,Huangyan,Taizhou city,zhejiang, Taizhou, Zhejiang
