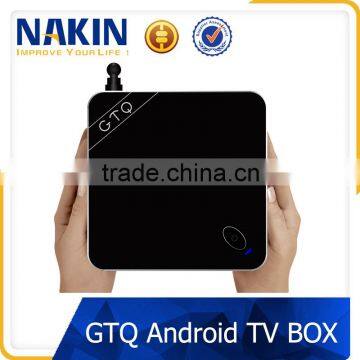

Amlogic S812 quad core GTQ Android TV Box

Item

Description

 GTQ Android TV BOX

Dimension

125*125*22mm

System Config.

CPU

Amlogic S812 Quad Core up to 2.0GHz (Cortex-A9)

GPU

Octa core ARM Mali-450 GPU up to 600MHz

RAM

DDR3 2GB

ROM

Onboard eMMC Flash 8GB

Bluetooth

BT 4.0

Expand Memory

Micro SD Card (Maximum support 32GB)

Antenna

External WiFi antenna

Media

UHD 4K×2K

Yes Support

Full HD 1080P

Yes Support

HEVC H.265

Yes Support

Video/Picture Decoding

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Audio format

Support: MP3, AAC, WMA, RM, FLAC, OGG

Communication

Ethernet

1000M LAN

WIFI

IEEE 802.11a/b/g/n

IEEE 802.11a/b/g/n, WiFi compliant

2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)

4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)

Sensor/Motor

IR Sensor

1*IR

Indicator

Power LED

1* power LED with two - color

Button & Ports

Button

1*Power Button

1*Update Button(via one pin hole)

USB2.0

2* Standard USB

1*Micro USB with OTG

DC-in

1*DC in Jack

HDMI

1*HDMI A Type

SPDIF

1*S/SPDIF (2CH,  5.1CH)

RJ45

1*RJ45

TF Card Slot

1* Micro SD card slot

AV

1*AV Port

Power management

Adapter

5V 2A

Software Config.

OS

Google Android 5.1

Language

Multi -language

Keyboard

Qwerty keyboard

Features

Miracast/DLNA

Support

UI

Support original ecology and AZW custom UI

Work Environment

5°C--35°C,30%--90% Humidity

Storage Environment

-20°C--60°C,10%--90% Humidity
