Product Details
| Application | Graphics Card | Type | Fan | |
| Heatsink Material | Other, Copper & Aluminum | Brand Name | xinyujie | |
| Model Number | XJ12B8020H | Place of Origin | Guangdong, China |
Product Description

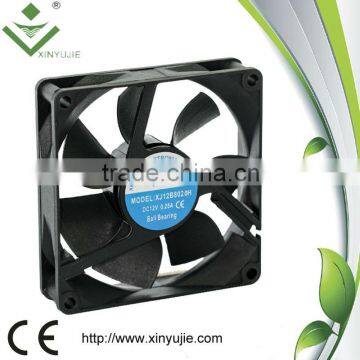

air circulation fan /dc fan 8020 12v dc car fan ,vertical fan
Dimension:80*80*20MM
Rated voltage:12V/24V
Startup voltage:6V/12V
Current Amp:0.08-0.22A
Speed:2500-3500RPM
Air flow:25.93-38.90CFM
Static Pressure:2.21-3.24mmH2O
Noise level:30-40dB-A
Weight:58.00g
Optional sleeve and ball bearing
Sleeve bearing:(lower price)
*The sleeve was imported from Germany
*Low cost solution
*Stable performance
*Easy installation
*We warranty 1 year for sleeve bearing fans
Ball bearing:(higher price)
*We use the NSK ball which is imported from Japan
*High quality,long service life
*Low noise level
*Easy installation
*Double ball bearing
*We warranty ball bearing fans for 3 years
Motor Protection (Selective purchasing):
-Automatic Restart.
-Reverse Polarity Protected
-Water proof for IP55
-Ic function RD ,FG AND PWM control
* Two ball bearing applying
* Applying NMB or NSK ball bearing inported from Japan
* Short lead time 1 Week after confirm order
* Three years warranty
Lead time: samples within 4 days
mass production within 12 days
if do the waterproof fan need 1 week more
We have the fan dimension as below:
25*25*07MM 25*25*10MM 30*30*07MM 30*30*10MM 35*35*07MM 35*35*10MM 40*40*07MM 40*40*10MM 40*40*15MM 40*40*20MM 40*40*28MM 45*45*10MM 50*50*12MM 50*50*15MM 50*50*20MM
60*60*11MM 60*60*15MM 60*60*20MM 60*60*25MM 70*70*15MM
70*70*25MM 80*80*10MM 80*80*15MM 80*80*20MM 80*80*25MM
80*80*38MM 92*92*25MM 92*92*38MM 120*120*25MM 120*120*32MM
120*120*38MM 140*140*25MM 172*152*51.5MM
-3 years warranty for ball bearing fans and 1 year warranty for sleeve bearing fans;
-OEM service based on MOQ1000pcs;
-Ordinary material and waterproof material optional;
-Best quality cooling fans produced by ourselves;
-Best service by our sales and engineers;
-We have own engineer can design and do the fans customized.
