Home > Products > New fans > 12 volt dc air conditioner 8038 vertical axial flow fan impeller /axial dc cooling fan
12 volt dc air conditioner 8038 vertical axial flow fan impeller /axial dc cooling fan
- 2000000 Piece / Pieces per Month
- Shenzhen/HongKong
- T/T Credit Card
You May Like
-
air circulation fan /dc fan 8020 12v dc car fan ,vertical fan
-
Xinyujie 8015 plastic fan DC fan good warranty coling fan made in China industrial fan
-
xinyujie 8010 dc cooling fan 12v dc computer fan dc fan
-
dc brushless fan 12v 70*70*15mm 5v 12v dc fan best seller XJ7015 12v dc centrifugal fan
-
xinyujie 6025 12v dc ventilation fan 25mm height 12v dc cooling fan the best super dc 12v fan
-
portable car air conditioner XJ5020 air cooler fan, mini air conditioner for car
Product Details
| Application | Other | Type | Fan | |
| Heatsink Material | Other, Copper & Aluminum, copper&Aluminum | Brand Name | ximyujie | |
| Model Number | XJ8038 | Place of Origin | Guangdong, China |
Product Description

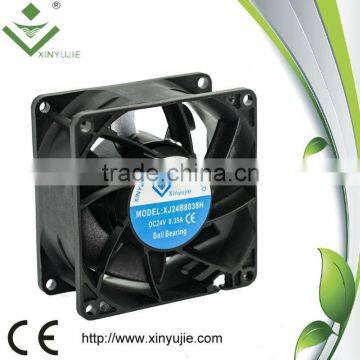

12 volt dc air conditioner 8038 vertical axial flow fan impeller /axial dc cooling fan
Dimension:80*80*38MM
Rated voltage:12V/24V
Startup voltage:6V/12V
Current Amp:0.12-0.80A
Speed:3500-5500RPM
Air flow:58.39-82.08CFM
Static Pressure:9.74-17.33mmH2O
Noise level:40-53dB-A
Weight:140.00g
Optional function:FG function/RD function/PWM function
Wire leading:2 wire(red wire:positive;black wire:negative)
3 wire(red wire:positive;black wire:negative;yellow wire:RD or FG)
4 wire(red:positive;black:negative;yellow:FG;green:temperature control)
We have our own produce department and engineer,so all the specification can be customized.
Lead time: samples within 4 days
mass production within 12 days
if do the waterproof fan need 1 week more
We have the fan dimension as below:
25*25*07MM 25*25*10MM 30*30*07MM 30*30*10MM 35*35*07MM 35*35*10MM 40*40*07MM 40*40*10MM 40*40*15MM 40*40*20MM 40*40*28MM 45*45*10MM 50*50*12MM 50*50*15MM 50*50*20MM
60*60*11MM 60*60*15MM 60*60*20MM 60*60*25MM 70*70*15MM
70*70*25MM 80*80*10MM 80*80*15MM 80*80*20MM 80*80*25MM
80*80*38MM 92*92*25MM 92*92*38MM 120*120*25MM 120*120*32MM
120*120*38MM 140*140*25MM 172*152*51.5MM
-3 years warranty for ball bearing fans and 1 year warranty for sleeve bearing fans;
-OEM service based on MOQ1000pcs;
-Ordinary material and waterproof material optional;
-Best quality cooling fans produced by ourselves;
-Best service by our sales and engineers;
-We have own engineer can design and do the fans customized.
