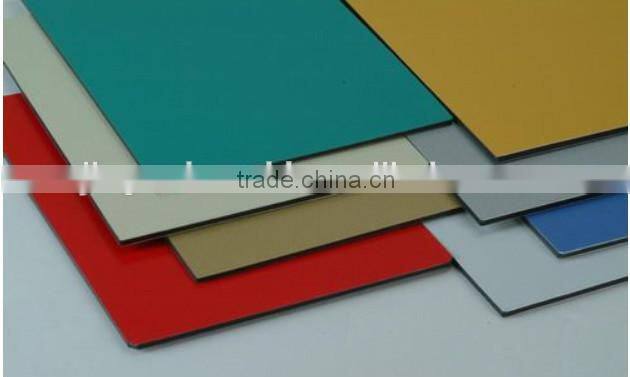

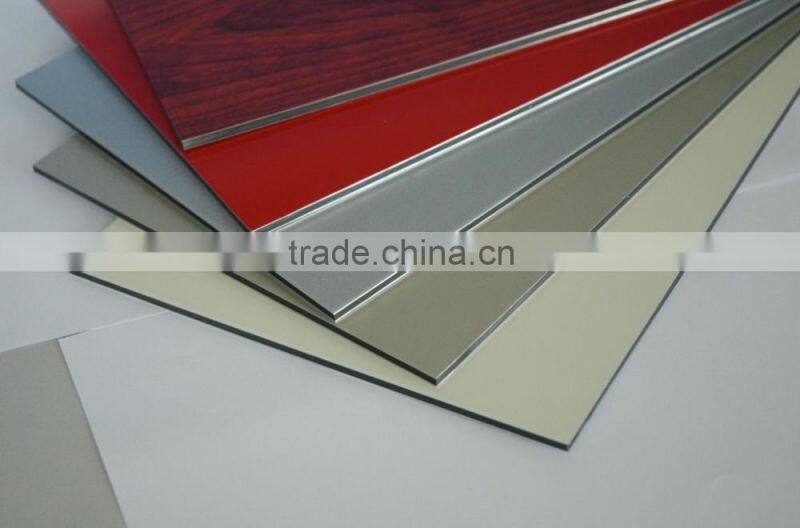

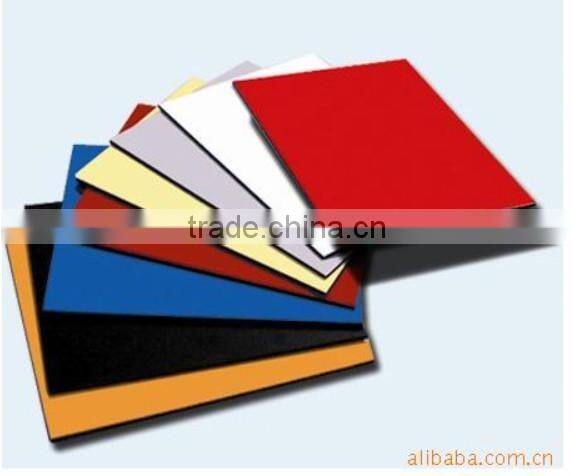

pe Sheet Dies for ACP Manufacturer

We provide varieties of Flat sheet dies

1. Maxiumum width is 8000mm;

2. Multi flow channel;

3. For thin sheet, thick sheet, hollow sheet, Rainbow sheets;

4. Melt pump;

5. Screen Changer;

6. Feedblcok

Heavy Gauge Sheet Dies
With 90'restrictor bar
Upper die lip adjustment range max.: 11mm
Width adjustment system optional
Product thickness max.: 60mm

PVC Foam Sheet Dies
Application: Foam PVC building products, bathroom fixtures, poster boards etc.
Die structure: Special design for flow channel and multiple oil temperature control
zones at dip lips which stabilize the flow and calibrating area.
Updated design for PVC celuka dies: The lip exit is equipped with a unique water
cooling system, to reduce foam density and make the surface harder.

Common Sheet Dies
Upper lip fine adjustment system
Lower lip fixed, or adjustable
Restrictor bar for option
Various width adjust systems are optional

PC Hollow Corrugated Dies
PC hollow corrugated sheet thickness: 4-20mm,wave height: 20-60mm
PP hollow corrugated sheet thickness: 2-12mm,wave height: 20-40mm
With restrictor bar, suitable for all kinds of PP raw materials
Fine adjustment system operates easily

Cast Film Dies
Die width: tailor made up to 8000mm
Product thickness tolerance: 3%
Die lip radius: R0.05
Die lip surface finish: up to  R 0.01
Flow channel surface harden treatment by chromium plating. Plating thickness: 0.02-0.03mm
Hardness: HV900-1000
Roughness of flow channel: R 0.01-0.02
Film can be produced as thin as 0.5, at widths up to 8000 mm.

• 1.Q:Are you a factory or trading company? A: We are a factory.
•  2.Q:Where is your factory located? How can I visit there? A: Our factory is located in Huangyan, Taizhou city, Customer can fly to Shanghai or Ningbo Airport, then take the fast train to our city. It’s fast and convenient.
•  3.Q:How does your factory do regarding quality control? A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
