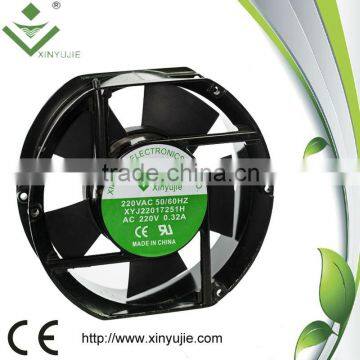

XJ17251H 172mm mini quiet high efficiency case fan
- 2000000 Piece / Pieces per Month
- shenzhen/hongkong
- Credit Card
You May Like
-
Hot selling standing cooling solar dc fan in Africa India market
-
Cooling Fan 12V AC/DC Fan,CE/RoHS/UL Approved Fans
-
17251 summer cool fan cold fan dc brushless fan high power dc axial fan
-
110v 220v ball bearing Control Panel Cooling Fans 92*92*38mm
-
High quality ball bearing 110v 120x120x38.5mm fan
-
220v ac welding machine cooling fan 92x92x38mm
Product Details
Electric Current Type | AC | Mounting | Free Standing | |
Blade Material | Plastic | Place of Origin | Guangdong, China | |
Brand Name | XINYUJIE | Model Number | XJ17251H | |
Voltage | 110/120V 220/240V | Power | 18W | |
Air Volume | 198CFM | Speed | 2600/3000rpm, 2600/3000 | |
Certification | CE, ROHS, UL | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
XJ17251H 172mm mini quiet high efficiency case fan
Main parameters:
Model | Rated Voltage (VDC) | Frequency (VDC) | Current Amp (A) | Speed (rpm) | Air flow (CFM) | Static Pressure (Inch-H20) | Noise Level (dB-A) | Weight (g) |
17251S | 110/120 | 50/60 | 0.50/0.48 | 2600/3000 | 180/198 | 9.48/12.88 | 50/56 | 930.00 |
17251B | 110/120 | 50/60 | 0.50/0.48 | 2600/3000 | 180/198 | 9.48/12.88 | 50/56 | 930.00 |
17251S | 220/240 | 50/60 | 0.25/0.24 | 2600/3000 | 180/198 | 9.48/12.88 | 50/56 | 930.00 |
17251B | 220/240 | 50/60 | 0.25/0.24 | 2600/3000 | 180/198 | 9.48/12.88 | 50/56 | 930.00 |
17251S | 380 | 50/60 | 0.15/0.14 | 2600/3000 | 180/198 | 9.48/12.88 | 50/56 | 930.00 |
17251B | 380 | 50/60 | 0.15/0.14 | 2600/3000 | 180/198 | 9.48/12.88 | 50/56 | 930.00 |
Dimension: 172mm*151mm*51.5mm
Use of the environment:
Operating voltage | 4.5v~5.5v/10.2v~13.8v/20.4v~27.6v |
Operating temperature/humidity | -10℃~70℃ 35%~85%RH |
Storage temperature/humidity | -40℃~80℃ 35%~85%RH |
Main pictures:
Spare parts:
Optional:
1. Waterproof IP55 or IP67,you can test the fans in the water,can work in very wet environment. And also you can choose the salt-waterproof craft.
2. Wire leading: 2 wire(red wire:positive;black wire:negative)
3 wire(red wire:positive;black wire:negative;yellow wire:RD or FG)
4 wire(red:positive;black:negative;yellow:FG;green:temperature control)
3. Optional function: auto-restart, temperature control speed, speed detection, stppage alarm, waterfroof etc.
4. Customized terminal and customized wire length.
5.
Optional sleeve and ball bearing:
| ||||||||||||||
|
1.Home appliance 2.Kitchen 3.Car industry 4.Telecom 5.Medical Equipment 6. UPS Power 7. LED Lighting 8.Computer 9.Safety Equipment 10.Office Electrics
Delivery time:
1. Samples 3-5 days
2. Mass production 7-10 days
3. If do the waterproof fan need 1 week more
Express:
Guarantee:
-3 years warranty for ball bearing fans
-1 year warranty for sleeve bearing fans
-20,000 hours warranty for hydraumatic bearing fans
Service:
-OEM service based on MOQ1000pcs;
-Ordinary material and waterproof material optional;
-Best quality cooling fans produced by ourselves;
-Best service by our sales and engineers;
-All can be customized.
We have our own produce department and engineer,so all the specification can be customized.
Certificate:
Our workshop:
Company profile:
-We are an enterprise specialized in developing and producing AC/DC/EC cooling fans.
It is applies to armamentarium, communication device, big server machine, security and protection monitoring, professional power amplifier, indoor air ventilation, instrument and equipment etc.
-We have owned professional R&D department, and we have dozens of patents of utility model and designs.
-We have full series dimension ranging from 25*25*7mm to 172*172*51mm, including sleeve bearing, ball bearing, hydraulic bearing, and the current amp, rated voltage. Speed, air flow can all be customized.
-Our Tenets: others without I have, people have my superior.
1. Who are we?
- Our Xinyujie is a professional manufacturer of AC & DC cooling fans.The fans dimension ranging from 25mm to 172mm,including sleeve/ball/hydraumatic bearing.
- All the sleeve and ball are import from Japan etc.We have our own engineer, the rated voltage,current amp can all be customized.
2. What can we do for you?
- 3 years warranty for ball bearing fans and 1 year warranty for sleeve bearing fans
- OEM service based on MOQ1000pcs
- Ordinary material and waterproof material optional
- Best quality cooling fans produced by ourselves
- Best service by our sales and engineers
- We have own engineer can design and do the fans customized
3. Payment terms
- Payment by T/T , Western Union or Paypal .
- 100% payment for sample orders .
- 30% deposit and 70% balance before shipment .
Contact Us
- Shenzhen Xinyujie Technology Co., Ltd.
- Contact nameSusan Tang Chat Now
- Phone86-0755-29101960
- Address2 floor, D building, Sanwei Huafeng 1st Park, Xixiang, Baoan Shenzhen , China, Shenzhen, Guangdong
