Product Details
| Place of Origin | China | Brand Name | TZHISING | |
| Model Number | B635A | Condition | New |
Product Description
Specifications

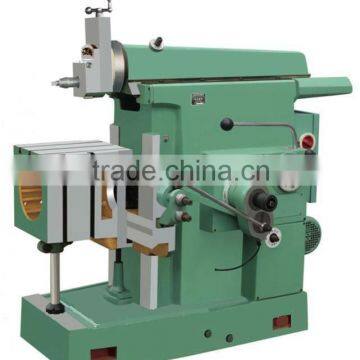

Shaper ismainly used for planing the plane on the small and medium-sized workpieces in small batch production of a single pieceFor the detailed specification of the Shaping Machine,pls see the photo :
Specification | B635A | |
Maximum planing length | 350mm | |
Ram underside to table the maximum distance | 330mm | |
Worktable maximum moving distance(horizontal) | 400mm | |
Worktable maximum moving distance(vertical) | 270mm | |
Leading surface of the planer to bed out of the maximum distance | 550mm | |
The maximum displacement of the ram | 170mm | |
Maximum turning angle of the worktable(no vice) | ±90° | |
Maximum turning angle of the worktable(vise) | ±55° | |
The turret maximum vertical travel | 110mm | |
Ram reciprocating frequency per minute | 32,50,80,125times min | |
The ram back and forth a table feed amount | Wheeled round a tooth(vertical) | 0.18mm |
Wheeled round a tooth(horizontal) | 0.21mm | |
Wheel rotation 4 tooth(vertical) | 0.73mm | |
Wheel rotation 4 tooth(horizontal) | 0.84mm | |
Electric motor | 1.5kw 1400r/min | |
Carton size | 1530×930×1370mm | |
Net weight | 1000kg/1200kg | |
Feature:
Shaper is mainly used for planing the plane on the small and medium-sized workpieces in
small batch production of a single place,forming the surface and grooves.Its five
characteristics:
1.Planer bench can about turning angle of the table with horizontal and lift moving mechanism;for planing the inclined plane,thereby expanding the scope of use;
2.Planer cam mechanism,the feed system.
Change the tool path volume is also very convenient.
3.Planer in the tool path system built-in overload safety agencies,due to careless handling
or by external influences and cutting overload,take the knife on their own skid ,non-destructive parts to ensure the normal operation of the machine;
4.Slip between the pillow and the bed rail and speed gear to pay and the main sliding guide surface,both the pump shot lubricating oil through the lubrication;
5.Planer is equipped with a clutch and parking brake institutions,so do not have to cut off the power when changing the speed to start the machine parking.
