Product Details
| Type | Fittings | Place of Origin | Zhejiang, China | |
| Model Number | IPLL | Brand Name | Aiphonso or OeM |
Product Description

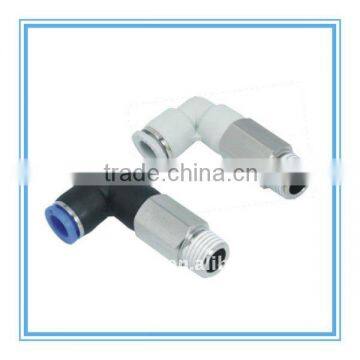

Peumatic fitting IPLL
One-Touch tube fittings are used in pneumatic piping.
. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping.
. Even after installation, the direction of the tube can be changed freely.
. Nickel-Pated metal body ensures Anti-Corrosion and Anti-Contamination.
. All R and NPT threads are Pre-Coated sealant.
MODEL ( D-T) | |||||
Tube (Metric)-Thread ( R ) | Tube (Inch)-Thread(NPT) | ||||
IPLL04-M5 | IPLL06-02 | IPLL10-02 | IPLL5/32-N01 | IPLL1/4-N02 | IPLL3/8-N03 |
IPLL04-M6 | IPLL06-03 | IPLL10-03 | IPLL5/32-N02 | IPLL1/4-N03 | IPLL3/8-N04 |
IPLL04-01 | IPLL08-01 | IPLL10-04 | IPLL5-32-N03 | IPLL5/16-N01 | IPLL1/2-N02 |
IPLL04-02 | IPLL08-02 | IPLL12-01 | IPLL3/16-N01 | IPLL5/16-N02 | IPLL1/2-N03 |
IPLL06-M5 | IPLL08-03 | IPLL12-02 | IPLL3/16-N02 | IPLL5/16-N03 | IPLL1/2-N04 |
IPLL06-M6 | IPLL08-04 | IPLL12-03 | IPLL3/16-N03 | IPLL3/8-N01 |
|
IPLL06-01 | IPLL10-01 | IPLL12-04 | IPLL1/4-N01 | IPLL3/8-N02 |
|
Features
. One-Touch tube fittings are used in pneumatic piping.
. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping.
. Even after installation, the direction of the tube can be changed freely.
. Nickel-Plated metal body ensures Anti-Corrosion and Anti-Contamination.
. All R and NPT threads are Pre-Coated sealant.
. All cylindrical threads are standard with O-Ring seals.
Fluid | Air,Vacuum |
Operating Pressure | 0~1.0Mpa |
Negative Pressure | -100Kpa(10Torr) |
Max Pressure | 1.5Mpa |
Operating Temperature | 5~60OC |
Applicable Tube | Nylon and Polyurethane |
