Home > Products > Network cabinet > 6u Network Server Rack Cabinet
6u Network Server Rack Cabinet
- shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | KTMP | |
| Model Number | KTMP-NW-8 | Protection Level | IP65 | |
| Type | Network Cabinet | External Size | Optional |
Product Description

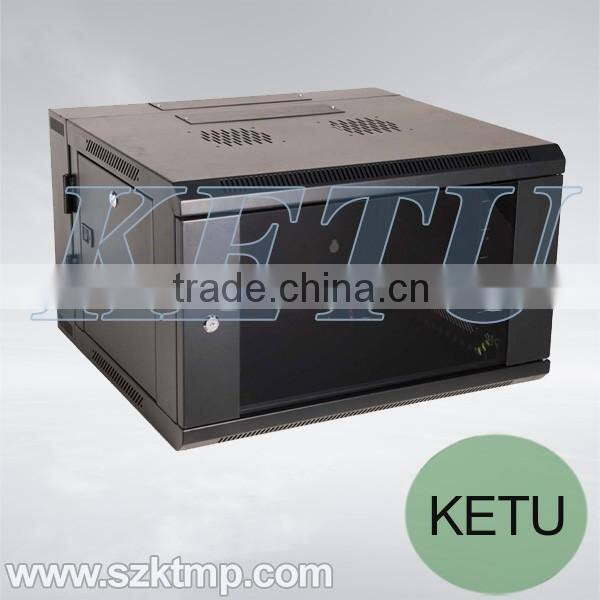

6u network server rack cabinet
Model: KTMP-NW-8

Specification :
Model | 600MM*600MM |
Capacity | 6U |
Standard | Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard |
IP grade | IP20 |
Color | Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032) |
Thickness: | Mounting profile 2.0mm;Others 1.0mm |
Material: | SPCC high-quality cold rolled steel |
Static Loading Capacity: | 60kgs |
Packing | firm carton , The packing of it is assembly packing and flat packing |
Surface finish: | Degreasing, Pickling, Phosphating, Powder coating |
Main Parts :
No. | Component Name | Quantity | Unit | Material | Surface Finish | Remark |
1 | Top Cover | 1 | pc | SPCC cold rolled steel T1.0 | Powder Coated | --- |
2 | Mounting profile | 4 | pc | SPCC cold rolled steel T1.2 | Powder Coated | --- |
3 | Mounting angle | 4 | pc | SPCC cold rolled steel T1.0 | Powder Coated |
|
4 | Frame | 2 | pc | SPCC cold rolled steel T1.0 | Powder Coated | --- |
5 | Small round lock | 1 | pc | --- | Nickel Coatd | --- |
6 | Toughened glass front door | 1 | pc | Tempered glass/SPCC T1.0 | Powder Coated | --- |
7 | Side Panel | 2 | pc | SPCC cold rolled steel T1.0 | Powder Coated | Removable steel door |
8 | Bottom Panel | 1 | pc | SPCC cold rolled steel T1.0 | Powder Coated | --- |
9 | Steel rear door | 1 | pc | SPCC cold rolled steel T1.0 | Powder Coated | --- |
10 | M6 Philip-head screw | 10 | pc | Steel | Color Zinc Coated | 20pcs for over 12U |
11 | M6 square nut | 10 | pc | Steel | Color Zinc Coated | 20pcs for over 12U |
Recommended options
*Fan assembly kit
*PDU
*Racks Screws ,Cage nuts
* Plastic/Metal Cable management
* Shelves
Advantage :
1.Secure,firm and reliable
2. Easy to maintain equipment
3. Two Packing Ways:
1).Assembly packing to save labour cost, ready to resell or use
2).Disassembly packing to save space and transport cost, easy to assemble
4.Certification: ISO 9001:2000
5. OEM/ODM service available
Other Series :
Company Introduction :
Shenzhen KTMP Technology Company Limited is a professional sheet metal products
manufacturer . As a skilled manufacturer in sheet metal processing industry for 12 years , KTMP is a
company with the whole line of designing , producing , selling and trading a standard series of
products while continually making strides in new product development . Welcome to OEM all kinds of
network/ server cabinets .
Certification :
FAQ :
Your satisfaction is our greatest feedback.
Q:If OEM available?
A:Yes, we provide all of our products OEM.
Q:What are your company normal payment?
A:We accept L/C; T/T; D/P; D/A; Western Union;
Q: What are your company normal export terms?
A:We normally export with DHL EMS FedEX UPS and so on.
Q:Is sample available?
A:Sample is available.
Contact Us
- Shenzhen Ketu Metal Plate Company Limited
- Contact nameJoolbin Duan Chat Now
- Phone86-755-29174815
- Address2/F,The 14th Building,TianLiao 7th Industrial,GongMing Office,, Shenzhen, Guangdong
