Sony Exmor CMOS 500m long distance transfer 720P AHD dome camera
- Shenzhen
- T/T Credit Card
You May Like
-
16 CH synchronously playback network surveillance camera video recorder
-
Long transmission vandal proof megapixel 720P high definition analog camera
-
6 megapixels resolution recording 1080P 32ch IP camera input web video recorder
-
China top brand QIHAN HD analog CCTV camera with long distance transmission
-
Outdoor waterproof casing IP67 megapixel wireless IP camera with NVR
-
Sony Exmor CMOS 720P/1080P analog HD dome camera for home security
Product Details
| Place of Origin | Guangdong, China | Brand Name | QIHAN | |
| Model Number | QH-3504SC-N | Type | Analog Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Other, Plastic |
Product Description

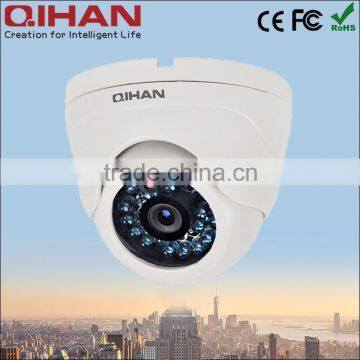

Sony Exmor CMOS 500m long distance transfer 720P AHD dome camera
720p ahd dome camera key features:
-With modern techniques, YUV separates, signal filtering, 3DNR for the higher definition and the better image restitutor.
-AHD can transfer 720P/25fps and 720P/30fps HD video over 75-3 or similar cable at least 500m.
-Data that is not encoded, Realtime and Complete.
-Backward-compatible D1/960H, Good compatibility with analog peripheral unit including Video Splitter, Matrix and so on.
-No complicated network knowledge required, Easy to use.
-Enjoy High definition products in analog's price.
720p ahd dome camera pecifications:
| Model NO. | QH-3504SC-N | |
| VIDEO | Image Device | 1/3'' Sony "Exmor" CMOS |
| TV System | PAL/NTSC | |
| Total Pixiels | 1.37M Pxiels | |
| Effective Pixels | 1280(H)*720(V) | |
| Scanning System | Progressive | |
| Synchronization | Internal | |
| Min. Illumination | 0 Lux (LED on) | |
| S/N Ratio | >58db | |
| Video Output | 1Vp-p,75ohm, BNC | |
| LENS | Focal Length | 3.6MM or 6MM Fixed Lens |
| OPERATIONAL | Day & Night | Auto (ICR) |
| Backlight Compensation | Auto | |
| Gain control | Auto | |
| White Balance | Auto | |
| Electronic Shutter Speed | 1/50(1/60) ~ 1/100,000S | |
| Infrared LED | 24EA | |
| IR Distance | 10 ~ 20 Meters | |
| IR-CUT | YES | |
| Infrared Spectrum | 850nm | |
| OPERATIONAL | Operation Temperature | -10℃~ +60℃ |
| Storage Temperature | -20℃~ +70℃ | |
| Water-proof Casing | Plastic | |
| ELECTRICAL | Max Power | 4.74W |
| Adapter Requirement | DC12V1A | |
| MECHANICAL | Color | White |
| Dimensions | 92*80MM | |
| Net Weight | 190g/pcs | |
| Transmission distance | 500meters(75-3) |
720p ahd dome camera photos:
Qihan Technology Co., LTD is one of the leading factories which develops and produces CCTV products in China, supported by the Chinese government as the most importantly developed company.Qihan has a R&D headquarter in Shenzhen high-tech research center, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Each month we produce about 80,000 units of cameras and 20,000 units of DVRs, and our capacity is about 100,000 units of cameras and 50,000 units of DVRs monthly. Which accounts for nearly 38 million US Dollars in value in the year of 2011. All the high-tech electronic components are integrated by machine automatically, and the semi-products are assembled in our 12 professional production lines.
