Home > Products > New Products > 2013 best seller 4 pcs analog cameras and 1 pc 4ch dvr security camera system

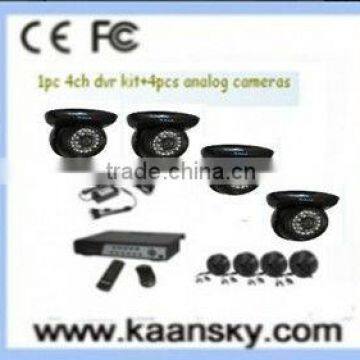

2013 best seller 4 pcs analog cameras and 1 pc 4ch dvr security camera system
US$ 10 - 100
/ Set
1 Set(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
4 pcs analog camera and 1 pc 4ch dvr cctv system
-
4 pcs analog camera and 1 pc 4ch dvr cctv camera system
-
A Series High Power LED 1/3" Sony 1080P HD SDI cctv Cameras,waterproof sdi cameras With Two Years Warranty
-
outdoor HD SDI Camera with 3 Megapixel lens, HD SDI ir bullet camera 1080P
-
1/3 sony effio 700tvl cctv camera,outdoor cctv camera
-
lowest price 4 pcs analog ir dome cameras and 1 pc h.264 4ch dvr mobile cctv system dvr
Product Details
| Place of Origin | Guangdong, China | Brand Name | kaansky | |
| Model Number | KST-DS-A4 |
Product Description
Specifications
security camera system1.lowest price,best service
2.support OEM/ODM
3.Many cameras for you choose!
Security camera system:
The dvr is KST2104,1PC 4CH DVR .
The camera are 4 pcs analog bullet ir camera KST-I505, or 4 pcs analog bullet ir camera KST-I502,or 4 pcs analog dome camera KST-D10,You can choose one of them !Here is the specification ,picturers of DVR and Cameras .
Specification for 4CH DVR KST2104
| H.264 real time DVR Vedio.Audio Language: 16 country Support mouse control, VGA output, network, USB copy. Graphical interface, easy to use GUI operational interface Support Embedded web, HTTP, SMTP, FTP, DDNS, DHCP, PPPOE and NAT moblie phone visit , Iphone Symbian,WindowsMobile,iPhone,Android,BlackBerry | |||
| 4 channel LCD DVR | |||
| Opeation System | Embedded linux operation system | ||
| Language | English French. Russian. Pussian. Portuguese.Spanish.Turkish .German.... | ||
| Frame System | PAL:100fs NTSC:120fs | ||
| Video standard | PAL/NTSC | ||
| Image compression | H.264 | ||
| Audio compression | ADPCM | ||
| Recoding mode | Manual.timing.aiarm.motinn.detection | ||
| Video Search | Time search.event.earch.channd search.the.log.search | ||
| Backup | network.backup.USBbackup SATA DVD | ||
| Video intput | 4 channel | ||
| Video output | 1.channel BNC 1.channel VGA output | ||
| Audio input | 2.Chanel (synchronization audio.4.CH.8.CH andio optiona) | ||
| Audio output | 1Chanel | ||
| Monitoring quality | PAL:720x576(D1):NTSC:720x480(D1) | ||
| Playback quality | 4 Change D1 | 16 Change CIF(adjustable ) | |
| Image Control | 6 shifta for adjustablr | ||
| Motion Detection | for each channel of the defection are a(16x16)multa-leve sennsitivity settable | ||
| Display/playback | 1.4 ch display | ||
| Video Speed | PAL:25 frames/se(adjustable) NTSC:30 frames | ||
| Video Save | The hard drive network/sec(adjustable) | ||
| Alarm lnput | 4 chanel(optional) | ||
| A larm output | 1 chanel(opeiona) | ||
| PTZ | Rs 485 | ||
| Hard Disk Interface | 1 SATA interface | ||
| Demension | 270x210x48mm 1000g | ||
Camera of DVR KIT :KST-I505
| KST-I505 waterproof IR camera | |||||||
| Models:KST-I505 Features: IR Distance 15-20M Adopting 24PCs 5mm IR Leds Standard lens: 3.6mm lens;(2.8mm, 6mm optional) Dual glass, no IR diffusion and fog IP66, outdoor installation Cable-managed Bracket: to prevent external force of destruction such as cutting | |||||||
| Color | White | ||||||
| IR | 24PCs 5mm | ||||||
| Lens | 3.6mm | ||||||
| Size | 107x85x60mm | ||||||
| G.W/N.W | 300g/250g | ||||||
| Pack | 167x92.5x115mm | ||||||
| Model | KST-I505-S342 | KST-i505-N48 | KST-I505-N60 | KST-I505-E52 | KST-I505-E65 | ||
| Image Sensor | 1/3" COLOR SONY CCD | 1/3" COLOR SONY Super HAD CCD | 1/3" COLOR SONY Super HADCCD | 1/3" COLOR SONY EFFIO | 1/3" COLOR SONY EFFIO | ||
| TV System | PAL/NTSC | ||||||
| Image Resolution | PAL:500(H)×582(V), NTSC:510(H)×492(V) | PAL:752(H)×582(V), NTSC:768(H)×494(V) | PAL:752(H)×582(V), NTSC:768(H)×494(V) | PAL:752(H)×582(V), NTSC:768(H)×494(V) | PAL:976(H)×582(V), NTSC:976(H)×494(V) | ||
| Horizontal Resolution | 420TVL | 480TVL | 600TVL | 520TVL | 700TVL | ||
| CCD+DSP | 633ccd+3142 | 633ccd+3172 | 639ccd+CP2040 | 633ccd+EFFIO4127 | 673ccd+EFFIO4140 | ||
| Digital to Analog | 9Bit | 10Bit | 10Bit | 9Bit | 9Bit | ||
| Minimum illuminator | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.01LUX/F1.2 | 0.01LUX/F1.2 | ||
| S/N Ratio | >48dB | >58dB | |||||
| AES | 1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC) | ||||||
| WDR | — | D-WDR | D-WDR | D-WDR | D-WDR | ||
| DNR | — | 3D-DNR | 3D-DNR | 3D-DNR | 3D-DNR | ||
| OSD | — | OSD | OSD | OSD | OSD | ||
| White Balance | ATW | ATW/Manual/Auto | |||||
| AGC | AUTO | Auto/Manual/Off | |||||
| BLC | ON | ON/OFF | |||||
| Gamma Adjusting | 0.45 | ||||||
| synchronization System | Internal Synchronization | ||||||
| Video Output | 1.0Vp-p,75Ω | ||||||
| IR | 5*24 | ||||||
| IR Distance | 20 Meter | ||||||
| LENS | 3.6mm (2.8mm 6mm optional) | ||||||
| Voltage | DC12V (9V ~ 15V) | ||||||
| Operating Enviroment | ~ / 10% ~ 95%RH | ||||||
Specification of camera KST-I502
| Color | White | ||||||
| IR | 24PCs 5mm | ||||||
| Lens | 3.6mm | ||||||
| Size | 85x50x45mm | ||||||
| G.W/N.W | 250g/200g | ||||||
| Pack | 160x115x93mm | ||||||
| Model | KST-I502-S342 | KST-i502-N48 | KST-I502-N60 | KST-I502-E52 | KST-I502-E65 | ||
| Image Sensor | 1/3" COLOR SONY CCD | 1/3" COLOR SONY Super HAD CCD | 1/3" COLOR SONY Super HADCCD | 1/3" COLOR SONY EFFIO | 1/3" COLOR SONY EFFIO | ||
| TV System | PAL/NTSC | ||||||
| Image Resolution | PAL:500(H)×582(V), NTSC:510(H)×492(V) | PAL:752(H)×582(V), NTSC:768(H)×494(V) | PAL:752(H)×582(V), NTSC:768(H)×494(V) | PAL:752(H)×582(V), NTSC:768(H)×494(V) | PAL:976(H)×582(V), NTSC:976(H)×494(V) | ||
| Horizontal Resolution | 420TVL | 480TVL | 600TVL | 520TVL | 700TVL | ||
| CCD+DSP | 633ccd+3142 | 633ccd+3172 | 639ccd+CP2040 | 633ccd+EFFIO4127 | 673ccd+EFFIO4140 | ||
| Digital to Analog | 9Bit | 10Bit | 10Bit | 9Bit | 9Bit | ||
| Minimum illuminator | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.01LUX/F1.2 | 0.01LUX/F1.2 | ||
| S/N Ratio | >48dB | >58dB | |||||
| AES | 1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC) | ||||||
| WDR | — | D-WDR | D-WDR | D-WDR | D-WDR | ||
| DNR | — | 3D-DNR | 3D-DNR | 3D-DNR | 3D-DNR | ||
| OSD | — | OSD | OSD | OSD | OSD | ||
| White Balance | ATW | ATW/Manual/Auto | |||||
| AGC | AUTO | Auto/Manual/Off | |||||
| BLC | ON | ON/OFF | |||||
| Gamma Adjusting | 0.45 | ||||||
| synchronization System | Internal Synchronization | ||||||
| Video Output | 1.0Vp-p,75Ω | ||||||
| IR | 5*24 | ||||||
| IR Distance | 20 Meter | ||||||
| LENS | 3.6mm (2.8mm 6mm optional) | ||||||
| Voltage | DC12V (9V ~ 15V) | ||||||
| Operating Enviroment | ~ / 10% ~ 95%RH | ||||||
Specification of KST-D10
| Color | Black | ||||||
| IR | 5*24/15meter | ||||||
| Lens | 3.6mm | ||||||
| Size | 100*100*80mm | ||||||
| G.W/N.W | 200g/150g | ||||||
| Pack | 115*115*90mm | ||||||
| Model | KST-D05-S34 | KSTD05-N48 | KST-D05-N60 | KST-D05-E52 | KST-D05-E65 | ||
| Image Sensor | 1/3" COLOR SONY CCD | 1/3" COLOR SONY Super HAD CCD | 1/3" COLOR SONY Super HADCCD | 1/3" COLOR SONY EFFIO | 1/3" COLOR SONY EFFIO | ||
| TV System | PAL/NTSC | ||||||
| Image Resolution | PAL:500(H)×582(V), NTSC:510(H)×492(V) | PAL:752(H)×582(V), NTSC:768(H)×494(V) | PAL:752(H)×582(V), NTSC:768(H)×494(V) | PAL:752(H)×582(V), NTSC:768(H)×494(V) | PAL:976(H)×582(V), NTSC:976(H)×494(V) | ||
| Horizontal Resolution | 420TVL | 480TVL | 600TVL | 520TVL | 700TVL | ||
| CCD+DSP | 633ccd+3142 | 633ccd+CP2030 | 639ccd+CP2040 | 633CCD+EFFIO4140 | 673CCD+EFFIO4140 | ||
| Digital to Analog | 9Bit | 10Bit | 10Bit | 9Bit | 9Bit | ||
| Minimum illuminator | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.1LUX/F1.2 | 0.01LUX/F1.2 | 0.01LUX/F1.2 | ||
| S/N Ratio | >48dB | >58dB | |||||
| AES | 1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC) | ||||||
| WDR | — | D-WDR | D-WDR | D-WDR | D-WDR | ||
| DNR | — | 3D-DNR | 3D-DNR | 3D-DNR | 3D-DNR | ||
| OSD | — | — | OSD | OSD | OSD | ||
| White Balance | ATW | ATW/Manual/Auto | |||||
| AGC | AUTO | Auto/Manual/Off | |||||
| BLC | ON | ON/OFF | |||||
| Gamma Adjusting | 0.45 | ||||||
| synchronization System | Internal Synchronization | ||||||
| Video Output | 1.0Vp-p,75Ω | ||||||
| IR | 5*24/15meter | ||||||
| IR Distance | 10 Meter | ||||||
| LENS | 3.6mm (6mm optional) | ||||||
| Voltage | DC12V (9V ~ 15V) | ||||||
| Operating Enviroment | ~ / 10% ~ 95%RH | ||||||
Fitting:
4CH H.264 real time DVR
4 PCS CCD Camera
4 PCS 12V1A Powersupply
10 PCS BNC connecter
