Home > Products > SAND PUMP > ZSQ (NSQ) type Best Product for Import Best Price Vertical submersible sand dredging pump

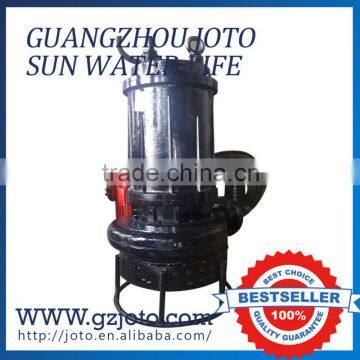

ZSQ (NSQ) type Best Product for Import Best Price Vertical submersible sand dredging pump

FOB Price

USD $700 - $5,000 / Piece

1 Piece(Min. Order)

Port GUANGZHOU
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	joto
Model Number	ZSQ (NSQ)	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Other, Water,pump sand and slurry
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, Electric or diesel	Pressure	High Pressure
Application	Submersible

Product Description

ZSQ (NSQ) type Best Product for Import Best Price Vertical submersible sand dredging pump

SAND PUMP SERIVICE CONDITIONS:

1. Power supply: The power standard source is 50Hz/380V three-phase alternating-current supply, and the capacity of the substation transformator is two to three times of the rated capacity of the motor. we can design the pump and motor under your requirement.

2. Temperature of the medium: The temperature of the medium cannot exceed 60Celsius, and the medium does not contain inflammable or explosive gases.

3. Max weight density of the solid particle: The maximum weight concentration of the solid particles in the medium: the maximum weight concentration of the ash is 45% and the maximum weight concentration of the slag is 60%.

4. Submerged depth: not more than 20 meters, and not less than 1 meter.

5.The unit works in the medium vertically, and the working status is continuous.

SAND PUMP APPLICATION:

Pumping tailing slurry for industrial and mining organizations, clearing silt in sedimentation basin, pumping silty sand or fine sand for seashore or port, pumping powdery iron ore for foreign countries, etc. The overflowing parts adopt wear-resistant alloy material and have long service life. In suitable construction environment, the mating is simple and convenient in operation and application. If the sand is large, high pressure gun can be added to increase the medium concentration.

SAND PUMP PARAMETER:

no.	model	dia.(mm)	flow(m3/h)	head(m)	power(kw)	particles(mm)
1	50ZSQ(NSQ)20-15-1.5	50	20	15	1.5	20
2	50ZSQ(NSQ)25-10-1.5	50	25	10	2.2	20
3	50ZSQ(NSQ)25-15-2.2	50	25	15	2.2	20
4	50ZSQ(NSQ)30-10-2.2	50	30	10	3	20
5	50ZSQ(NSQ)15-25-3	50	15	25	3	20
6	50ZSQ(NSQ)40-12-3	50	40	12	3	25
7	80ZSQ(NSQ)50-10-3	80	50	10	3	25
8	50ZSQ(NSQ)24-20-4	50	24	20	4	25
9	50ZSQ(NSQ)40-15-4	50	40	15	4	25
10	80ZSQ(NSQ)60-13-4	80	60	13	4	25
11	100ZSQ(NSQ)70-10-4	100	70	10	4	25
12	50ZSQ(NSQ)25-30-5.5	50	25	30	5.5	25
13	50ZSQ(NSQ)45-20-5.5	50	45	20	5.5	25
14	80ZSQ(NSQ)45-15-5.5	80	45	15	5.5	25
15	80ZSQ(NSQ)30-22-5.5	80	30	22	5.5	25
16	80ZSQ(NSQ)65-13-5.5	80	65	13	5.5	25
17	100ZSQ(NSQ)80-10-5.5	100	80	10	5.5	25
18	100ZSQ(NSQ)100-7-5.5	100	100	7	5.5	25
19	100ZSQ(NSQ)35-22-5.5	100	35	22	5.5	25
20	150ZSQ(NSQ)120-10-5.5	150	120	10	5.5	25
21	50ZSQ(NSQ) 30-30-7.5	50	30	30	7.5	30
22	80ZSQ(NSQ) 50-22-7.5	80	50	22	7.5	30
23	100ZSQ(NSQ)75-15-7.5	100	75	10	7.5	30
24	100ZSQ(NSQ)80-12-7.5	100	80	12	7.5	30
25	100ZSQ(NSQ)100-10-7.5	100	100	10	7.5	40
26	100ZSQ(NSQ) 80-20-11	100	80	20	11	40
27	100 ZSQ(NSQ) 50-26-11	100	50	26	11	40
28	100 ZSQ(NSQ) 70-22-11	100	70	22	11	50
29	100ZSQ(NSQ) 100-15-11	100	100	15	11	50
30	100ZSQ(NSQ)85-30-15	100	85	30	15	50
31	100ZSQ(NSQ)60-35-15	100	60	35	15	50
32	100ZSQ(NSQ)50-40-15	100	50	40	15	50
33	100 ZSQ(NSQ) 100-28-15	100	100	28	15	50
34	150ZSQ(NSQ) 140-18-15	150	100	60	15	50
35	150ZSQ(NSQ) 150-15-15	150	150	15	15	50
36	150ZSQ(NSQ)200-10-15	150	200	10	15	50
37	100ZSQ(NSQ)70-40-18.5	100	70	40	18.5	50
38	150ZSQ(NSQ)180-15-18.5	150	180	15	18.5	50
39	100ZSQ(NSQ)130-30-22	100	130	30	22	50
40	100ZSQ(NSQ)80-35-22	100	80	35	22	50
41	150ZSQ(NSQ)150-22-22	150	150	22	22	50
42	150ZSQ(NSQ)200-15-22	150	200	15	22	50
43	150ZSQ(NSQ)300-15-30	150	300	20	30	50
44	150ZSQ(NSQ)240-20-30	150	240	20	30	50
45	100ZSQ(NSQ)70-38-30	100	70	38	30	50
46	100ZSQ(NSQ)60-45-30	100	60	45	30	50
47	10ZSQ(NSQ)100-35-30	100	100	35	30	50
48	150ZSQ(NSQ)150-30-30	150	150	30	30	50
49	150ZSQ(NSQ)300-20-37	150	300	20	37	50
50	100ZSQ(NSQ)100-50-37	150	100	50	37	50
51	150ZSQ(NSQ)400-15-37	150	400	15	37	50
52	150ZSQ(NSQ)200-30-45	150	200	30	45	50
53	150ZSQ(NSQ)500-15-45	150	500	15	45	50
54	150ZSQ(NSQ)150-35-45	150	150	35	45	50
55	150ZSQ(NSQ)250-35-55	150	250	35	55	50
56	150ZSQ(NSQ)150-45-55	150	150	45	55	50
57	200ZSQ(NSQ)600-15-55	200	600	15	55	50
58	150ZSQ(NSQ)350-35-75	150	350	35	75	50
59	150ZSQ(NSQ)200-45-75	150	200	45	75	50
60	200ZSQ(NSQ)500-20-75	200	500	20	75	50
61	150ZSQ(NSQ)150-50-75	150	150	50	75	50
62	150ZSQ(NSQ)200-60-90	200	200	60	90	50
63	200ZSQ(NSQ)450-30-90	250	450	30	90	50
64	200ZSQ(NSQ)480-37-110	200	480	37	110	50
65	300ZSQ(NSQ)1000-18-110	300	1000	18	110	50
66	200ZSQ(NSQ)500-50-132	200	500	50	132	50
67	300ZSQ(NSQ)1000-22-132	300	1000	22	132	50
