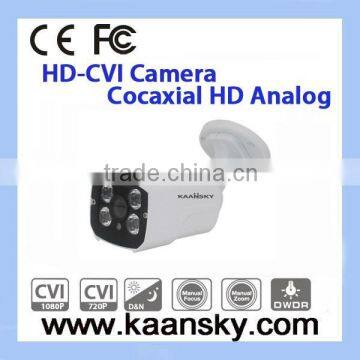

Outdoor IR array leds cctv HDCVI bullet camera

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Kaansky
Model Number	KST-HI56-CVI	Type	Analog Camera
Style	Bullet Camera	Sensor	CMOS
Technology	Infrared	Special Features	Other, hd coaxial analog camera

HD CVI camera
professional cctv camera manufacturer
CE,FCC,RoHSand ISO9001certificate
Accept OEM orders
Fast delivery

HDCVI CAMERA

High speed, long distance real-time transmission

Day/Night(ICR), AWB, AGC, BLC, 2D-DNR

over-coaxial-cable analog HD video transmission

720P/960P/1080P Resolution

IR Distance 60M
Adopting4PCs *HELD IR Leds
lens: 4mm lens;
Dual glass, no IR diffusion and fog
IP66, outdoor installation

Model	HI56-CVI1001	HI56-CVI2001
Image Sensor	1/2.9" 1Megapixel CMOS	1/2.8" 2.4Megapixel CMOS
Effective Pixels	1280(H)×720(V)	1984(H)×1225(V)
Video Frame Rate	25/30fps@720P	25/30@1080P, 25/30/50/60fps@720P
Electronic Shutter	1/50s~1/100,000s (Pal) 1/60s~1/100,000s(NTSC)	1/3s~1/100,000s
Synchronization	Internal
Mini. Illumination	0.01Lux/F1.2(AGC ON), 0Lux IR on	0.05Lux/F1.2(AGC ON), 0Lux IR on
Video Output	1-channel BNC HDCVI high definition video output
Max. IR LEDs Length	60m, Smart IR
IR LEDs	4PCS HLED
Day/Night	Auto(ICR) / Color / B/W
Noise Reduction	2D	2D/3D
Lens	4MM
General
Transmission Distance	Over 500m via 75-3 coaxial cable	Over 300m via 75-3 coaxial cable
Power Supply	DC12V±10%
Ingress Protection	IP66
Power Consumption	Max 4W
Working Environment	-30°C~+60°C / Less than 95%RH
Dimensions(W×D×H)	281x98x139mm
Weight	1.2kg
