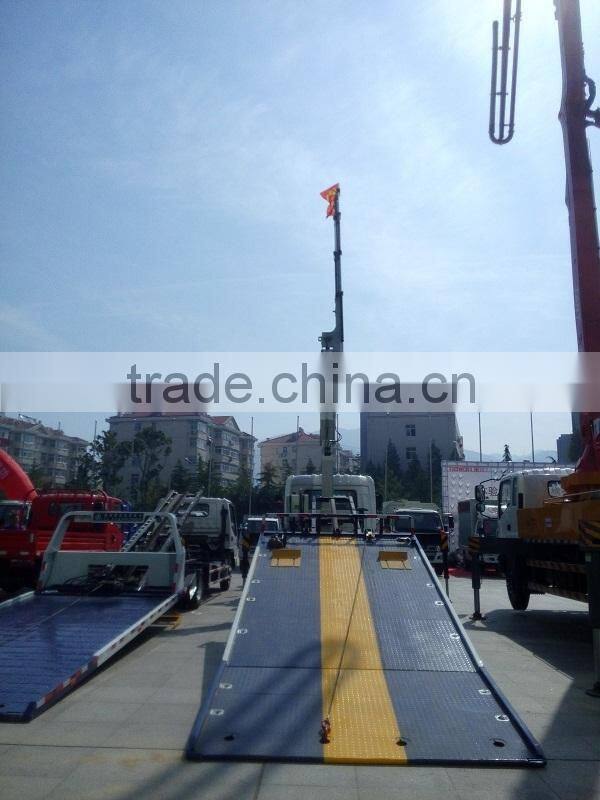

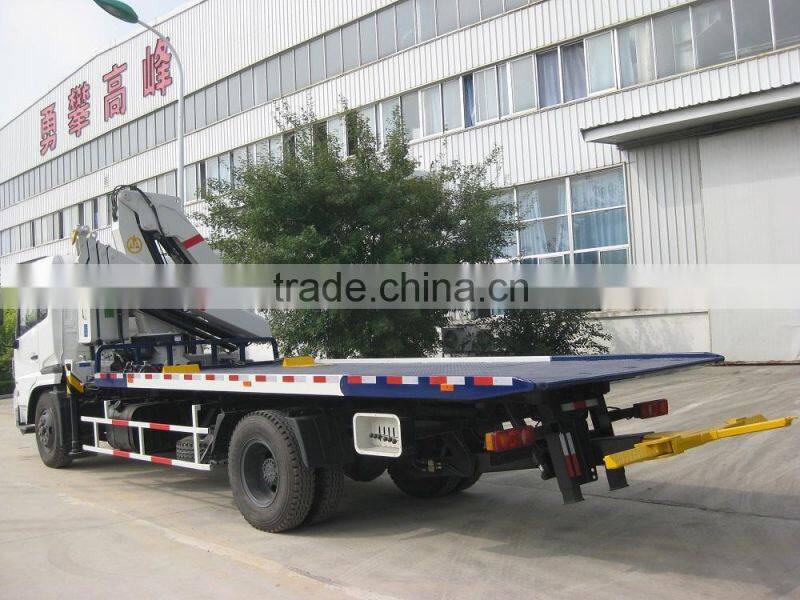

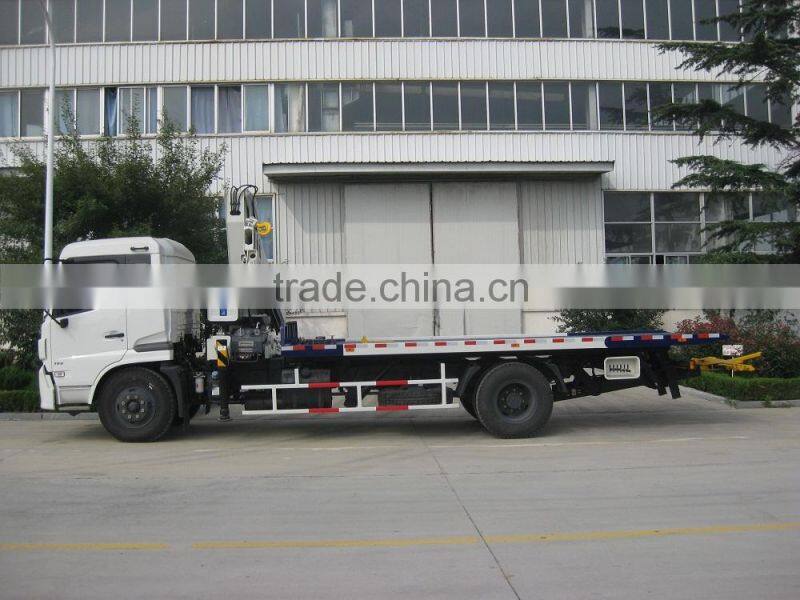

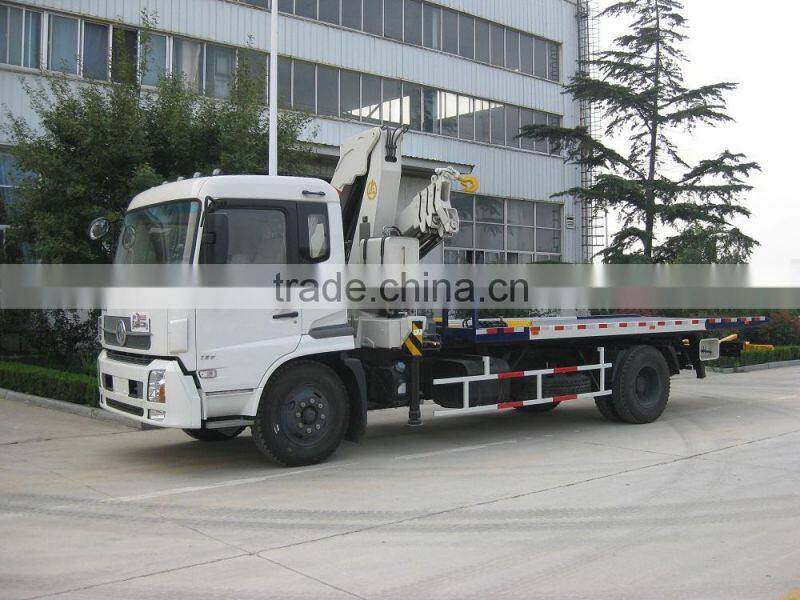

5 ton slide flatbed recovery truck wrecker with 6.3T crane for sale
- 200 Set / Sets per Month
- TIANJIN QINGDAO SHANGHAI LONGKOU
- T/T Credit Card
You May Like
-
25DZ20T rotator tow truck top parts,upper parts withou chassis truck
-
25 Ton Rotator Tow Truck (long head cabin type)
-
JAC low angle full landng 3 ton slide flatbed road recovery wrecker
-
2014 new product:LUFENG brand SINOTRUK 20 Ton 20D20T Integrated Tow Truck
-
ST5070TQZKP FOTON AOLING chassis 3 ton flatbed wrecker
-
2014 new product:LUFENG band FAC chassis 8 Ton 8T8P flatbed wrecker
Product Details
Fuel Type | Diesel | Emission Standard | Euro 3 | |
Condition | New | Transmission Type | Manual | |
Dimensions (L x W x H) (mm) | 9870*2450*3400 | Place of Origin | Shandong, China | |
Brand Name | LUFENG,DFAC | Model Number | ST5120TQZBP |
Product Description
Specifications
5 ton side flatbed recovery truck wrecker with 6.3T kunckle craneEuro 3,4 emission standard.
radius is 9920mm
5 ton slide flatbed recovery truck wrecker with 6.3T kunckle crane
Technical specification
Chassis | Model | DFL1120B13 |
Wheel base(mm) | 5000 | |
Engine model | ISDe 180 40 | |
Engine power(Kw/Ps) | 132/180 | |
Overall Dimension | Length(mm) | 10370 |
Width(mm) | 2450 | |
Height(mm) | 3400 | |
Kunckle Crane | Model | SQ6.3ZK3Q |
Max.Lifting weight(Kg) | 6300 | |
Span between landing leg(mm) | 2280~5210 | |
radius(mm) | 9920 | |
Rated hydraulic pressure(MPa) | 28 | |
Rotation angle(°) | 360°ratation | |
Flatbed | Flatbed overall dimension(Length×Width)mm | 6000×2450 |
Extension stoke(mm) | 3410 | |
Max.loaded weight(Kg) | 5000 | |
Min.obliquity(°) | 8 | |
Rated pulling force of winch(KN) | 50 | |
Underlift | Lifting weight(Kg) | 5000~2500 |
Rating tower weight(Kg) | 12000 | |
Max.Effective length of underlift(mm) | 2050 | |
Extension stroke(mm) | 1620 |
1 using one with two flat wrecker crane with folding arm combine chassis occupies a small space, increasing the weight of the front of the load
2 turning mechanism with a strong driving force to meet the needs of more conditions
3 hexahedral boom molding, neutral, and can meet the needs of working conditions more
4 unique three-point floating bridge structure design, effectively reduce the additional stress when the vehicle moving,the chassis main beam bear aditional stress
5. Cationic electrodeposition coating (electrophoresis) processing, greatly improved rust resistance level
6 using a dedicated spreader for lifting close to the shoulder, narrow roads, drains and other vehicles trapped in a special rescue vehicle condition. Make rescue work fast and efficient security will not be achieved secondary damage.
Photos
Shandong Lufeng Special-Purpose Vehicle Co.,Ltd is a group company with over 40 years history on automobile manufacturing. Our company main products consist of LUFENG brand semi-trailer, dump truck, concrete mixer truck, tow truck and other special vehicles. The annual output capacity has reached 10000 units. Our company develop ourselves in providing special vehicles for global market. Lufeng group has two subsidiaries: Tai’an Tongyuan Machinery Co.,Ltd & Shanghai Luqing International Trade Co.,Ltd.
Certification:
Factory Photos:
Workshop:
Selling Network:
Loading Port: QINGDAO,TIANJIN,SHANGHAI or other ports at China
Payment term: by T/T,30% advanced payment, and balance before shipment by T/T
Delivery time: The goods shall be prepared for shipment within seven days after receiving balance payment
Min. order quanlity:1 set
Supply ability:300 sets/month
