Gooseneck Lowbed Semi Trailer to Transport Heavy Equipments and Construction Machines
- QINGDAO TIANJIN
- T/T Credit Card
You May Like
-
45 Ton Three Axles Low Bed Semi-trailer
-
Tri-axle Skeletal Semi-trailer for Container Transportation
-
Dual-axle Flatbed Semi-trailer ST9261TJZ
-
Container Transportation Semi Trailer,three Axles for 20ft,40ft,45ft,48ft Containers
-
40 Ton Bulk Cargo Transportation Tri-axle Gooseneck Cargo Semi-trailer
-
Container Carrier Semi Trailer Container Twist Lock for Sale
Product Details
| Type | Semi-Trailer | Material | Steel | |
| Certification | Other, ISO,CCC | Size | 12260mm*3000mm*2650mm | |
| Max Payload | 28T | Place of Origin | Shandong, China | |
| Brand Name | LUFENG | Model Number | ST9330TD |
Product Description
Specifications
Gooseneck Lowbed Semi trailer to transport heavy equipments and construction machines1.high quality
2.advanced technology

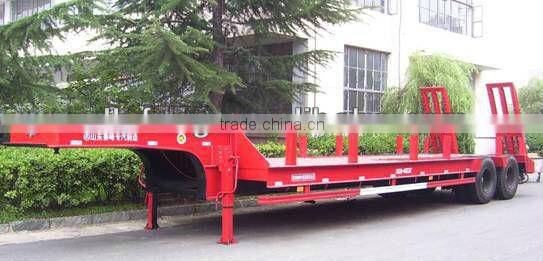

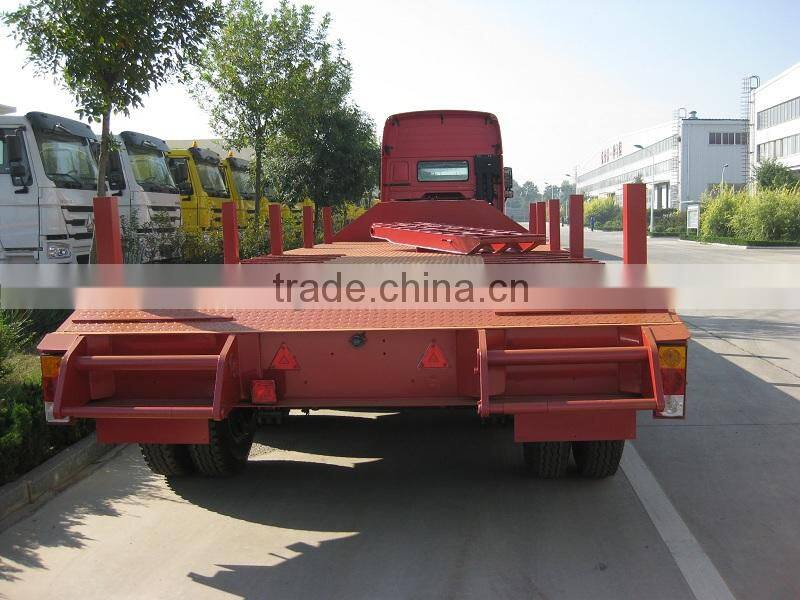

Two Axle Lowbed Semi-trailer ST9330TD
General | ||||
Overall Dimension | 12260mm*3000mm*2650mm | |||
Flatbed Dimension | 8650mm*3000mm | |||
Tare Weight | 8350kg | Pay Load | 25ton | |
King Pin Setting | 450mm | Rear Overhang | 1580mm | |
Wheel base | 9000mm+1230mm | Loading surface height | 960mm | |
Track | 2160mm | |||
Running Gear | ||||
Suspension | Dual-axle 8-pcs leaf spring suspension with equalizer beam | |||
Tires | 8.25R20, 8units | |||
Axles | CNHTC axle, 13T capacity | |||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30 air chamber; parking brake | |||
Under Frame | ||||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | |||
Cross Beam | Mild Alloy Q235, 25# channel beam | |||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | |||
Landing Gear | Single side operation or double side operation, Static capacity 25Ton | |||
Flatbed Floor | Checkered sheet, thickness 4mm | |||
Rear Ladders | Spring power-assisted | |||
Electrical & Paint | ||||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||
Wiring | 24V, 6 lines | |||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |||
Paint | Color upon request | |||

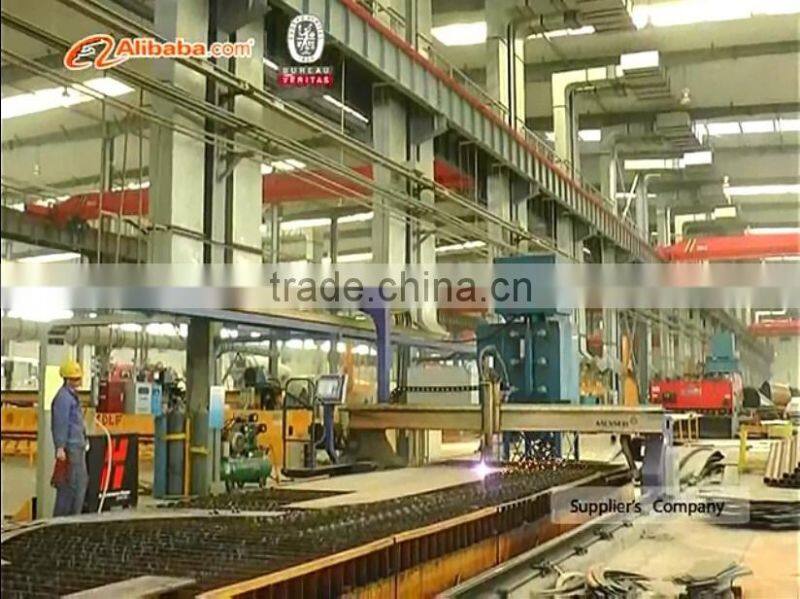

Company Information
Shandong Lufeng Special-Purpose Vehicle Co.,Ltdis a group company with over 40 years history on automobile manufacturing. Our company main products consist of LUFENG brand semi-trailer, dump truck, concrete mixer truck, tow truck and other special vehicles. The annual output capacity has reached 10000 units. Our company develop ourselves in providing special vehicles for global market. Lufeng group has two subsidiaries:
Tai’an Tongyuan Machinery Co.,Ltd & Shanghai Luqing International Trade Co.,Ltd.
Loading Port: QINGDAO,TIANJIN,SHANGHAI or other ports at China
Payment term: by T/T,30% advanced payment, and balance before shipment by T/T ;
by L/C,50% deposit by T/T, and 50% by irrevocable L/C at sight
Delivery time: The goods shall be prepared for shipment within seven days after receiving balance payment by T/T
Min. order quanlity: 1 set
Supply ability: 200 sets/month
