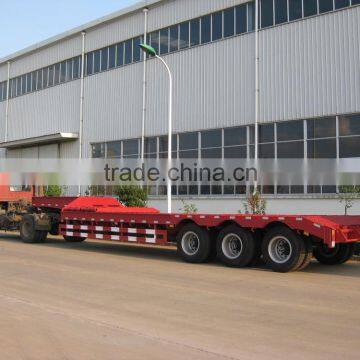

40 ton three axles Lowbed Semi-trailer for carrier heavy equipments and construction machinery
- QINGDAO TIANJIN SHANGHAI
- T/T Credit Card
You May Like
-
ST9401TJZ Tri-axle Flatbed Semi-trailer from factory for sale
-
20FT,40FT Container carrier semi trailer for sale
-
Four Axles Container Carrier Flatbed Semi Trailer
-
Two axles Low Bed Semi-trailer to transport construction machinery and heavy duty equipments and machines
-
20ft,40ft,45ft,48ft,53ft container carrier skeleton type semi-trailer which transport containers
-
Low bed Semi-trailer for heavy equipments and construction machinery transportation
Product Details
| Type | Semi-Trailer | Material | Steel | |
| Certification | Other, CCC,ISO | Size | 13000mm*3000mm*2600mm | |
| Max Payload | 45 ton | Place of Origin | Shandong, China | |
| Brand Name | Lufeng | Model Number | ST9390TD |
Product Description
Tri-axle Lowbed Semi-trailer
General | |||
Overall Dimension | 13000mm*3000mm*2600mm | ||
Flatbed Dimension | 9000mm*3000mm | ||
Tare Weight | 9630kg | Pay Load | 45 ton |
King Pin Setting | 450mm | Rear Overhang | 1250mm |
Wheel base | 8650mm+1305mm+1305mm | Loading Surface Height | 1150mm |
Track | 2160mm | ||
Running Gear | |||
Suspension | Tri-axle 8-pcs leaf spring suspension with equalizer beam | ||
Tires | 8.25R20, 12units | ||
Axles | CNHTC axle, 13T capacity | ||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | ||
Under Frame | |||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | ||
Cross Beam | Mild Alloy Q235, 16# channel beam | ||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | ||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | ||
Flatbed Floor | Checkered sheet, thickness 4mm | ||
Rear Ladders | Spring power-assisted | ||
Electrical & Paint | |||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
Wiring | 24V, 6 lines | ||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | ||
Paint | Color upon request | ||
Overall:
Platform:
Spare Tire position:
Protective fence:
Leaf Spring:
Air Chamber:
Landng Gear:
