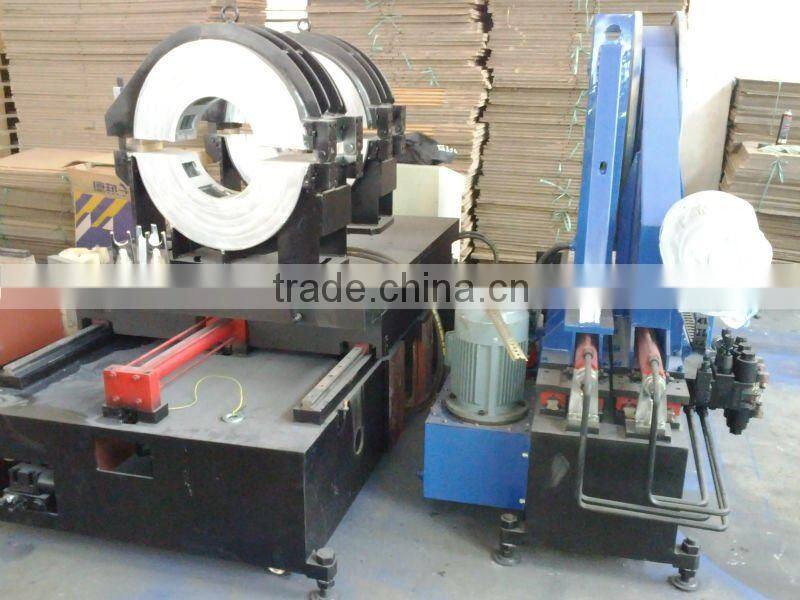

RGH630 PE Plastic Pipe Fitting Welding Machine for Inch Pipe
- SHANGHAI
- T/T
You May Like
-
800mm HDPE Fittings Fabrication Butt Welding Machine
-
RGH800 Workshop Fitting Butt Welding Machine PE PP
-
RGH315/90 Fitting Fabrication Welding Machine for Plastic
-
630mm-1200mm Workshop Angle Fitting Fusion Welding Machine
-
RGH1200 Angle Butt Fusion Machine for HDPE Pipes and Fittings
-
RDZ250 PE Squeeze off Tool
Product Details
| Place of Origin | Jiangsu, China | Brand Name | YUDA | |
| Model Number | RGH630 | Voltage | 380V | |
| Power | 28KW | Frequency | 50HZ | |
| Dimensions | 5CBM | Weight | 3500KG | |
| Usage | fabricate elbow, tee,cross fittings | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. RGH630 PE Plastic pipe fitting welding machine for inch pipe2. welding range: 355~630mm
3. Function: make elbow, tee
RGH630 PE Plastic pipe fitting welding machine for inch pipe
Hdpe fitting butt welding machine, Workshop fitting welding machine, Multi-angle fitting welding machine, PE elbow butt fusion machine, PVDF elbow butt fusion welding machine, HDPE Tee butt welding machine, Angle butt welder, HDPE plastic fittings welding machine. HDPE fittings butt fusion machine.
Application:
Suitable for fabricating elbow, tee, cross and wye shape(45°and 60°) Fittings of PE, PP, PVDF in workshop.
Welding range:
355—630mm in diameter
Features:
Removable PTFE-coated heating plate
Electric milling cutter with safety limit switch
Low starting pressure ensures reliable welding quality of small pipes.
Separate two-channel timer can show both of soaking and cooling time.
High-accurate and shockproof pressure meter indicates clearer readinds.
Pivoting milling cutter and heating plate bring Convenience to placing and removing.
Complies with 98/37 and 73/23 EEC standards.
Elbow , Tee and Cross Clamps open and close Hydraulically with Cyinlder to save labor to imprve the effiency.
Welding ranges of tee | 355mm—400mm—450mm—500mm—560mm-630mm |
Welding ranges of cross | 355mm—400mm—450mm—500mm—560mm-630mm |
Ranges of elbow (n×1°) | 355mm—400mm—450mm—500mm—560mm-630mm |
Ranges of application | PE,PP and PVDF |
Working voltage | ~380V ±10%,50Hz |
Environment temperature | -10° ~ 45° |
Total power | planing tool motor: 2.2 kW, heating plate: 22 kW, hydraulic unit motor: 4 KW |
components | basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, cross clamps and electrical box |
heating plate characteristics | PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±7° |
Other devices | Electronic count-down timers for heating and cooling time, PLC control system |
