RGH1000 Multi-angle Fitting Welding Machine

FOB Price

US$ 32,150 - 34,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	YUDA
Model Number	RGH1000	Voltage	380V
Power	57KW	Frequency	50HZ
Usage	fabricate elbow, tee,cross fittings

1. welding range: 630mm~1000mm
2. application: water, gas, irrigation, construstion, drainage, fire figthing, Sewage

Application:

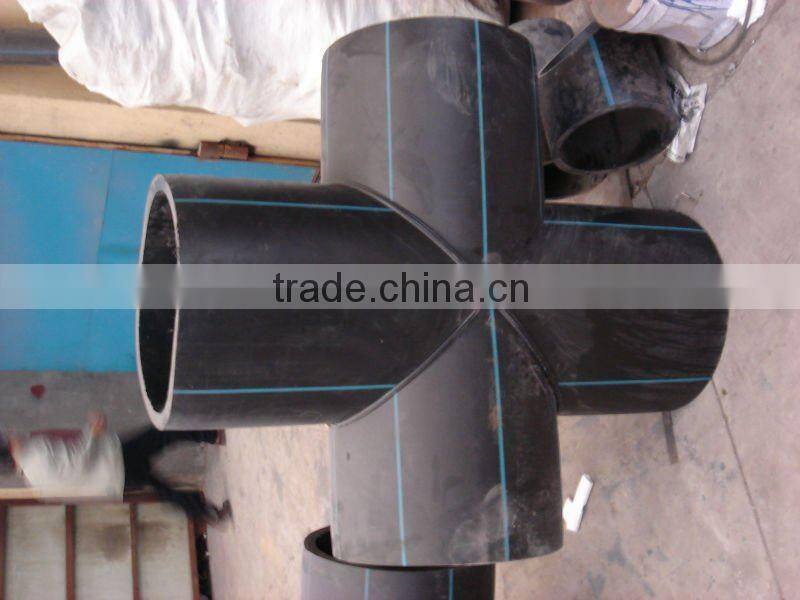

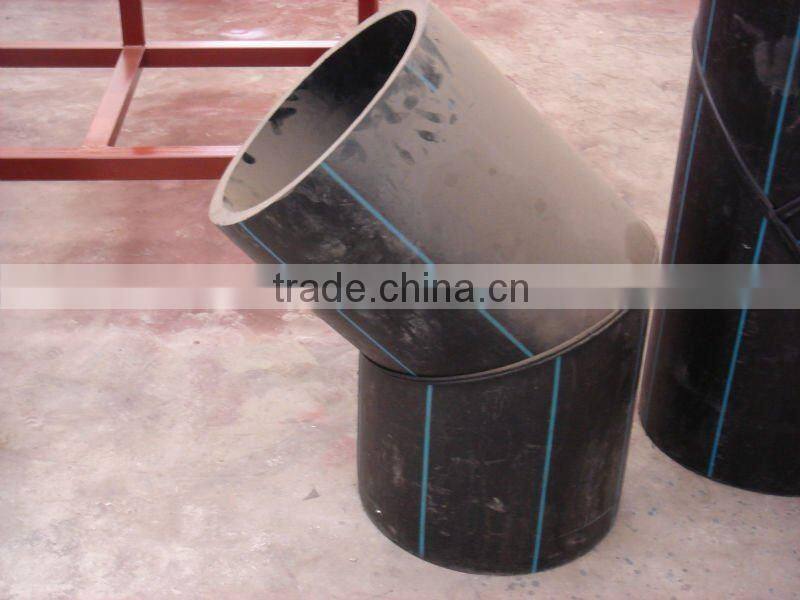

Suitable for fabricating elbow, tee, cross and wye shape(45°and 60°) Fittings of PE, PP, PVDF in workshop.

Welding range:

630—1000mm in diameter

Features:

Removable PTFE-coated heating plate

Electric milling cutter with safety limit switch

Low starting pressure ensures reliable welding quality of small pipes.

Separate two-channel timer can show both of soaking and cooling time.

High-accurate and shockproof pressure meter indicates clearer readinds.

Pivoting milling cutter and heating plate bring Convenience to placing and removing.

Complies with 98/37 and 73/23 EEC standards.

Welding ranges of tee	630mm—710mm—800mm—900mm—1000mm
Welding ranges of cross	630mm—710mm—800mm—900mm—1000mm
Ranges of elbow (n×1°)	630mm—710mm—800mm—900mm—1000mm
Ranges of application	PE,PP and PVDF
Working voltage	~380V ±10%,50Hz
Environment temperature	-10° ~ 45°
Total power	planing tool motor: 4 kW, heating plate: 49kW, hydraulic unit motor: 4 KW
components	basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, cross clamps and electrical box
heating plate characteristics	PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±7°
Other devices	Electronic count-down timers for heating and cooling time, PLC control system
