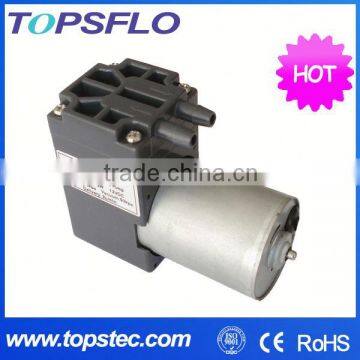

12v dc mini vacuum multi-use vacuum pump manufacturer
Negotiable
/ Piece
100 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
mini dc brush 6v 12v 24v Medical respirators pump
-
DC Brushless Diaphragm 6v 12v 24v medical analyser air pump with optional voltage
-
High pressure diaphragm brushless dc 12v Hydro facial peeling and moisten skin Vacuum pump
-
High pressure diaphragm brushless dc 12v Crystal Powerpeel Microdermabrasion Peeling Machine Vacuum Pump
-
High pressure diaphragm brushless dc 12v face & body aesthetic device pressure air compressor pump
-
Brushless DC CE medical equipment with portable pump
Product Details
| Place of Origin | China | Brand Name | TOPSFLO | |
| Model Number | TZX512 | Theory | Vacuum Pump | |
| Structure | Diaphragm Pump | Usage | Air Pump | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, DC power, Battery | Pressure | Other, high pressure 200kpa,160kpa,100kpa,80kpa, 80kpa,100kpa,160kpa,200kpa | |
| Application | Other, Gas transferring and evacuating |
Product Description
12v dc mini vacuum multi-use vacuum pump manufacturer
Technical features
1. Uncontaminated flow.
2. Non-metallic construction.
3. Compact size.
4. Maintaince free.
5. High level of water tightness thanks to the closed diaphragm surface and special sealing system.
6. Can operate in any installed position
Other Application
electrical products
industrial products
medical analytical instruments
chemical instruments, and so on
Wetted Material
food standard PC body ( including inlet&outlet)
food standard EPDM diaphragm
Dimension (mm)
Specification
| Model | Pressure pump(item number) | Vacuum pump( item number ) | Rated voltage (Vdc) | No-load current(A) | Max pressure (kpa) | Max vacuum (kpa) | Max flow (L/min) |
| TZX512/P12-20015 | TZX512/V12-8015 | 12 | 1.50 | 200 | -80 | ≥15 | |
| TZX512/P12-16011 | TZX512/V12-7011 | 12 | 0.52 | 160 | -70 | ≥11 | |
| TZX512 | TZX512/P12-10007 | TZX512/V12-6007 | 12 | 0.46 | 100 | -60 | ≥7 |
| TZX512/P12-8005 | TZX512/V12-5005 | 12 | 0.32 | 80 | -50 | ≥5 |
For more detail , please feel free contact us !
