Home > Products > Home Appliance > silent dc brushless circulation pump sleeping healthy heated mattress pad

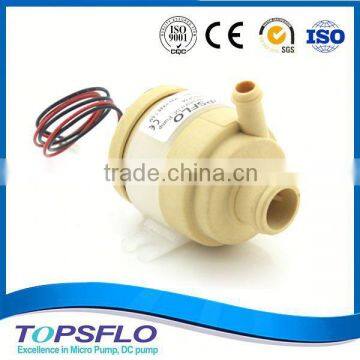

silent dc brushless circulation pump sleeping healthy heated mattress pad

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China
Brand Name	TOPSFLO		Model Number	TL-A03H

Product Description

silent dc brushless circulation pump sleeping healthy heated mattress pad

•.Advanced magnetic driving technology for static-seal,without any leakage forever
•.High efficiency ECM brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•.All wetted materials FDA approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.IP protection level: IP68, submersible directly
•.Blocked protection

Max Flow Rate	2.75L/MIN (165L/H)
Max Static Lift	1.5 M
Rated Voltage	6V 12V
Impeller Type	Closed impeller
Food Grade(Y/N)	Y
Liquid Temperature	0-100°C
Pump Theory	Centrifugal pump
Motor Type	Brushless DC motor
Ambient Temperature	-10-50°C
Media	Pure Water
Waterproof Class	IP42
Use Place	Indoor
Working Voltage Range	9~14V
Power Consumption	5W
Noise Class form 1M	35dB /Max
Ideal Life Time	20000 Hours
Working Mode	Continuous
OD of Inlet	14 mm
OD of Outlet	6.5 mm
Dimension	46.5x33x41.5 mm
Weight	80 g
Power Supply	DC power supply, battery, solar powered
Remarks	Can’t dry-running, not Self-priming

Typical Application

Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser

Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory

Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress
