Home > Products > Food & Beverage > Long Lifetime DC Brushless 12v 24v Popular Food Grown by Hydroponic And Organic Gardeners Pump

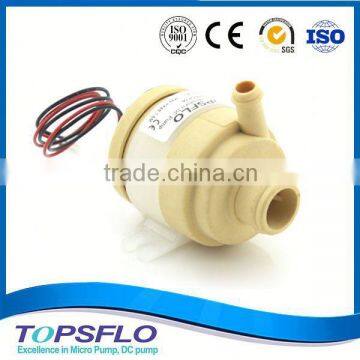

Long Lifetime DC Brushless 12v 24v Popular Food Grown by Hydroponic And Organic Gardeners Pump

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port Shanghai Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	TOPSFLO
Model Number	TL-A03H	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, DC power, Battery, Solar panel	Pressure	Other, 2.75L/min 1.5M
Application	Other, Liquid transfer or circulating

Product Description

Long lifetime DC brushless 12v 24v popular food grown by Hydroponic and organic gardeners pump

•.Advanced magnetic driving technology for static-seal,without any leakage forever
•.High efficiency ECM brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•.All wetted materials FDA approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.IP protection level: IP68, submersible directly
•.Blocked protection

Max Flow Rate	2.75L/MIN (165L/H)
Max Static Lift	1.5 M
Rated Voltage	6V 12V
Impeller Type	Closed impeller
Food Grade(Y/N)	Y
Liquid Temperature	0-100°C
Pump Theory	Centrifugal pump
Motor Type	Brushless DC motor
Ambient Temperature	-10-50°C
Media	Pure Water
Waterproof Class	IP42
Use Place	Indoor
Working Voltage Range	9~14V
Power Consumption	5W
Noise Class form 1M	35dB /Max
Ideal Life Time	20000 Hours
Working Mode	Continuous
OD of Inlet	14 mm
OD of Outlet	6.5 mm
Dimension	46.5x33x41.5 mm
Weight	80 g
Power Supply	DC power supply, battery, solar powered
Remarks	Can’t dry-running, not Self-priming

Typical Application

Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser

Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory

Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress
