Home > Products > Aroma Diffuser Pump > DC Brushless Diaphragm 6v 12v 24v Pump for Corridor Assembly Room Aroma Diffusion System

DC Brushless Diaphragm 6v 12v 24v Pump for Corridor Assembly Room Aroma Diffusion System

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port Shanghai Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	TOPSFLO
Model Number	TM30A-C	Theory	Vacuum Pump
Structure	Diaphragm Pump	Usage	Air Pump
Power	Electric	Standard or Nonstandard	Other, Standard,customized
Fuel	Other, DC power, Battery	Pressure	Other, pressure 120kpa,vacuum 70kpa
Application	Other, Air Quality Sampling Monitors Respiration Monitors

Product Description

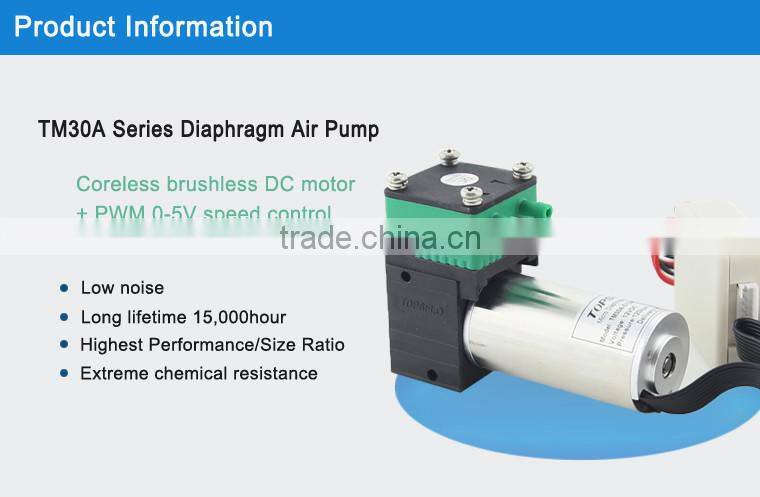

DC Brushless Diaphragm 6v 12v 24v pump for corridor assembly room Aroma Diffusion System

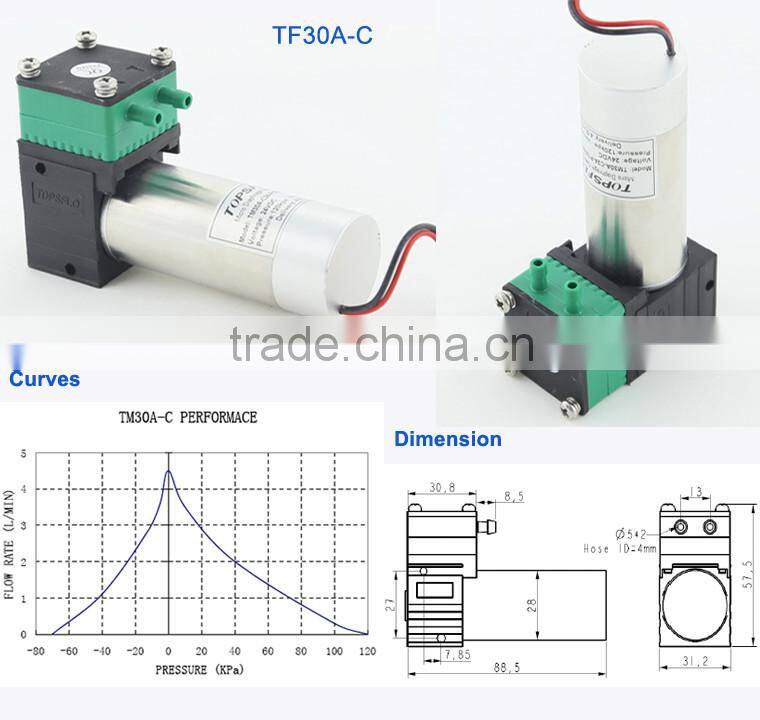

Specification

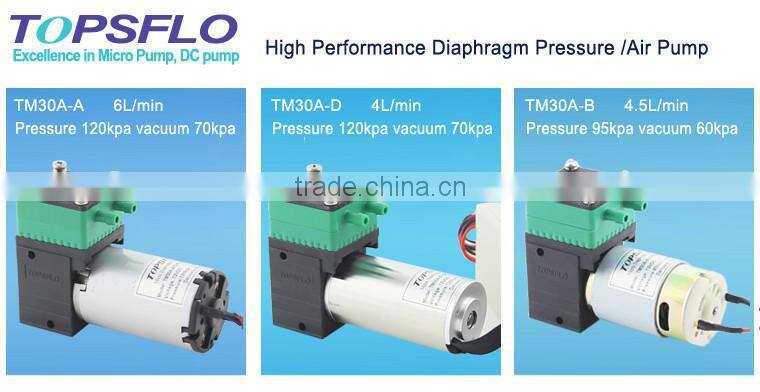

Model	Pressure Pump	Vacuum Pump	Rated Voltage	No-load Current	Max Pressure	Max Vacuum	Max Flow
	(Item Number)	(Item Number)	(Vdc)	(A)	(KPa)	(KPa)	(L/min)
TM30A-C	TM30A-C12-P12004	TM30A-C12-V7004	6/12/24	0.4/0.24/0.15	120	-70	4.5
TM30A-D	TM30A-D12-P12004 (outside controller)	TM30A-D12-V7004 ( outside controller)	6/12/24	0.4/0.24/0.15	120	-70	5

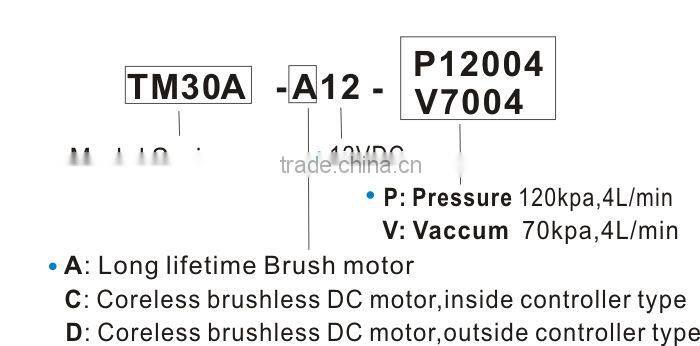

" P " means pressure pump, " / V " means vacuum pump, "6/12/24" means different voltages optional.
Pump Weight:250g; Pump Size:80mm30.5mm58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm

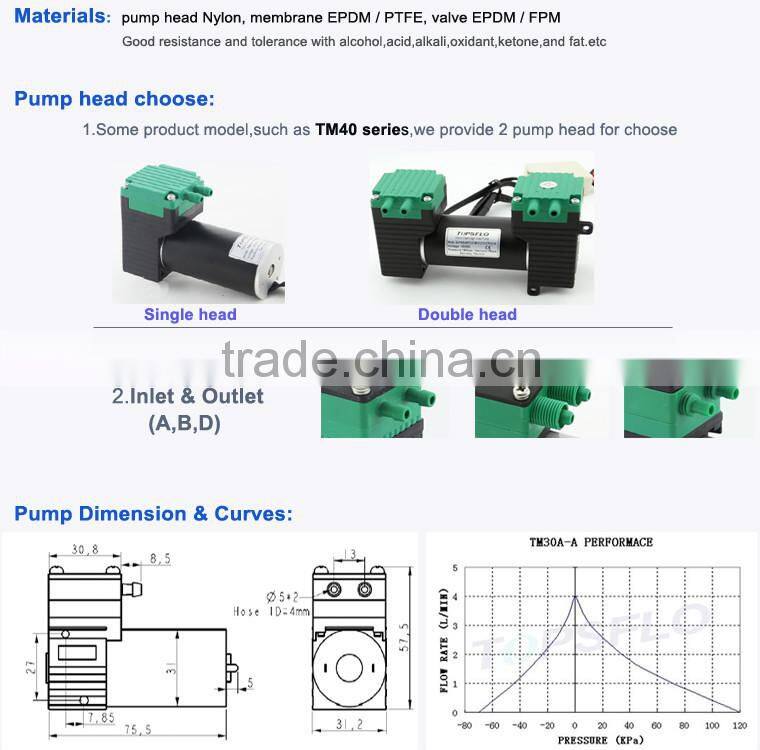

Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM: Good resistance and tolerance with alcohol, acid, alkali, oxidant, ketone and fat, etc. Poor oil resistivity.

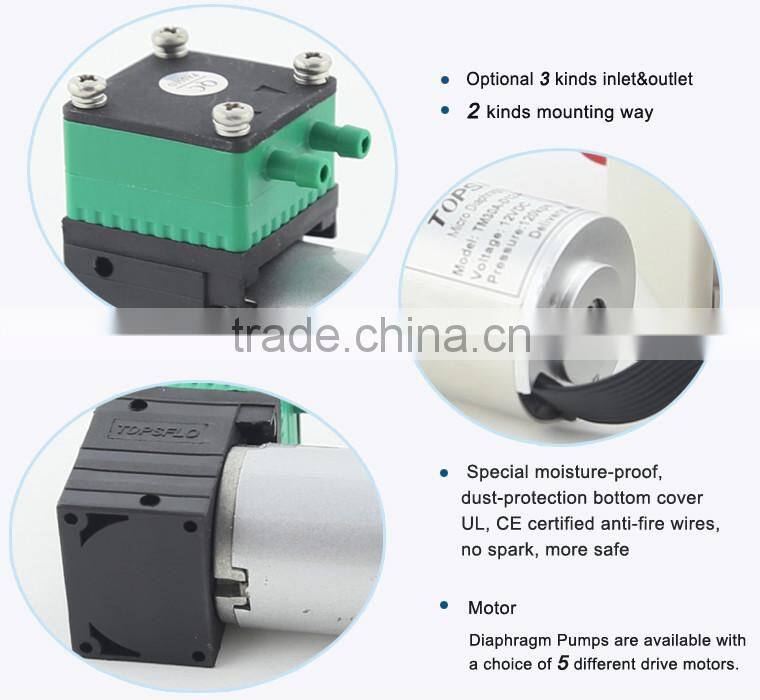

Motor type and code:"C":Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D": Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions.

Product Features:

1. Uncontaminated flow.
2. Non-metallic construction.
3. Oil-Free, Corrosion resistant
4. DC brushless motor, Long life, High efficiency, high performance brushless motor, has over 15, 000 hours
5. Compact size, Low Weight
6. Low noise: The patient has treatments of 30 minutes, so it will bothers a lot if has big noise. So, for the pumps, the less noise, the better. Our this pump can work very quiet
7. Maintaince free.
8. High level of water tightness thanks to the closed
Diaphragm surface and special sealing system.
9. Can operate in any installed position
Can work continuously
Lifetime: The pump has over 15.000 hours

Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors

air pump

Packing Detail

If you are unsure which pump is best suited to you needs, please give us some information on your intended use and the plumbing configuration, and we will be happy to advise. We aim to ensure customers get what they need, and we won't try and sell you something that is not suited to your requirements!
