SMA Female To CRC9 Antenna Connector
US$ 0.8 - 1.2
/ Piece
10 Pieces(Min. Order)
- Shenzhen
- Credit Card PayPal
You May Like
-
3G W-CDMA Repeater Signal Booster WCDMA 2100Mhz Mobile Phone Signal Repeater Amplifier
-
GSM 980 900MHz 70dBi LCD Mobile Phone Signals Booster Repeater
-
70dBi Mobile Signal Booster GSM 980
-
9dBi Indoor 4G Wall Panel Antenna 700-2700Mhz for Cell Phone Signal Booster Repeater
-
GSM 824-960MHz 8dBi Cell Phone Signal Booster Outdoor Yagi Antenna
-
Indoor Celling Antenna 850-2500MHz 2G/3G/4G Mobile Signal Booster/Repeater
Product Details
| Place of Origin | Guangdong, China | Brand Name | LONGAN | |
| Model Number | SPAC118 | Type | Adapter | |
| Application | RF | Gender | Female |
Product Description
Product Description

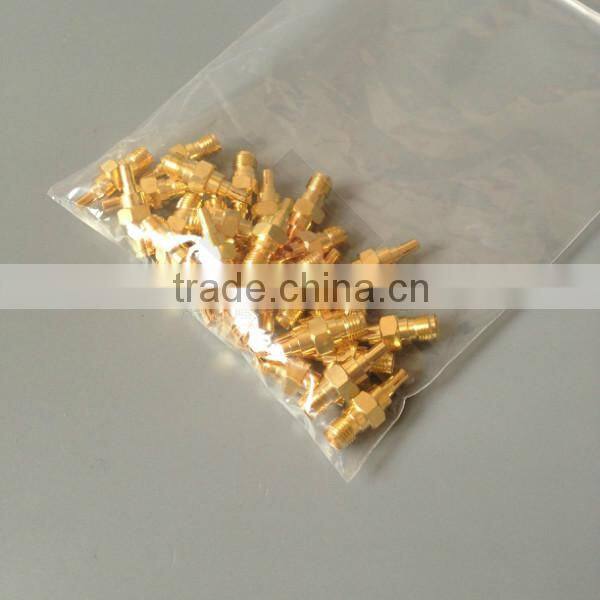

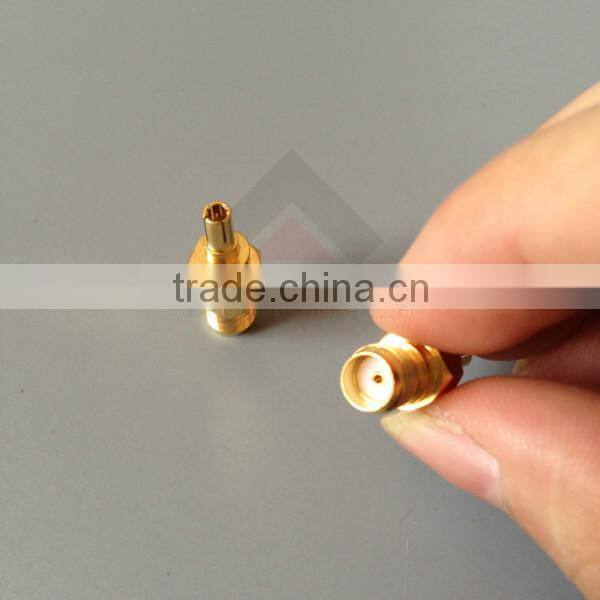

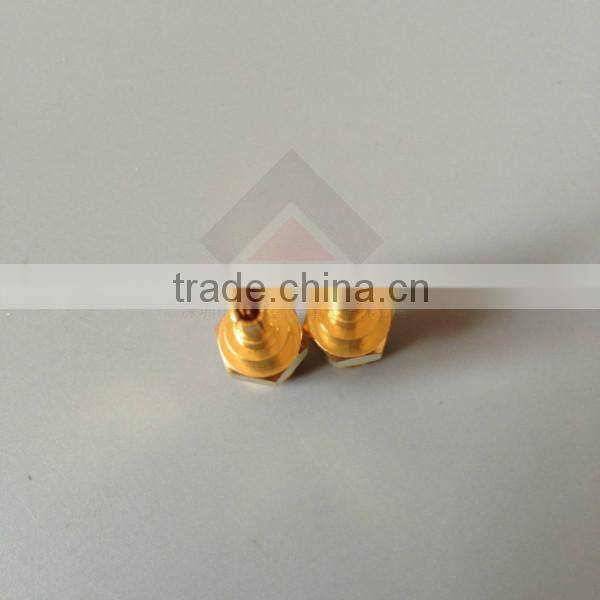

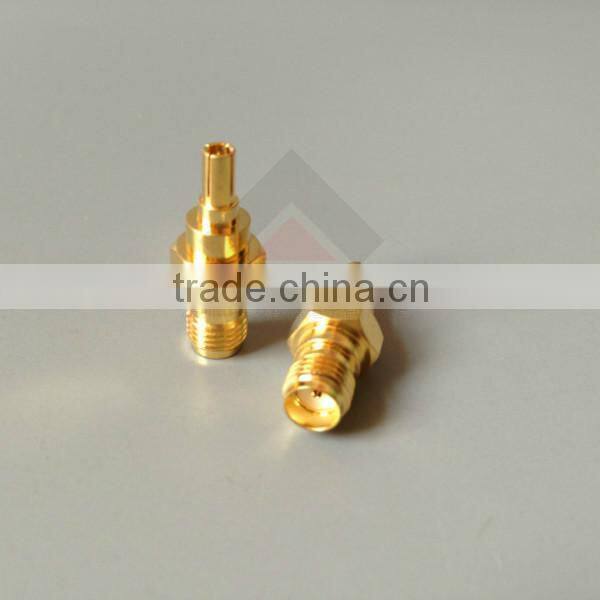

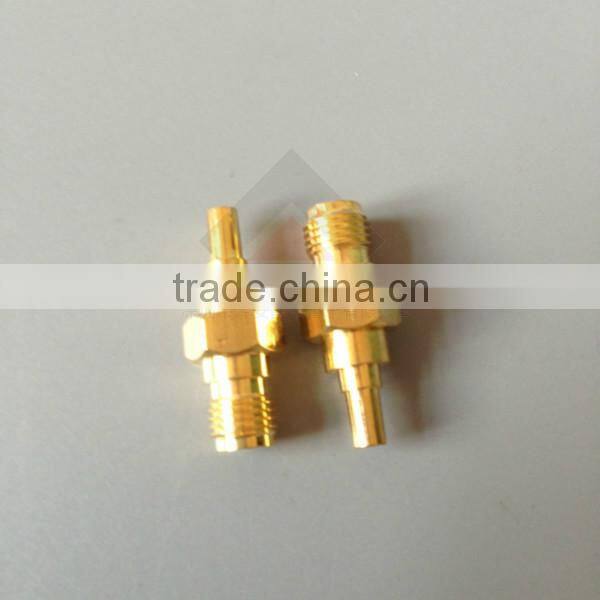

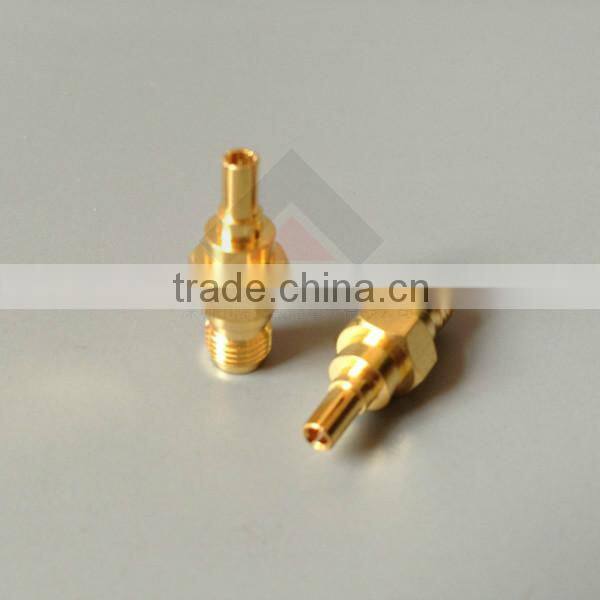

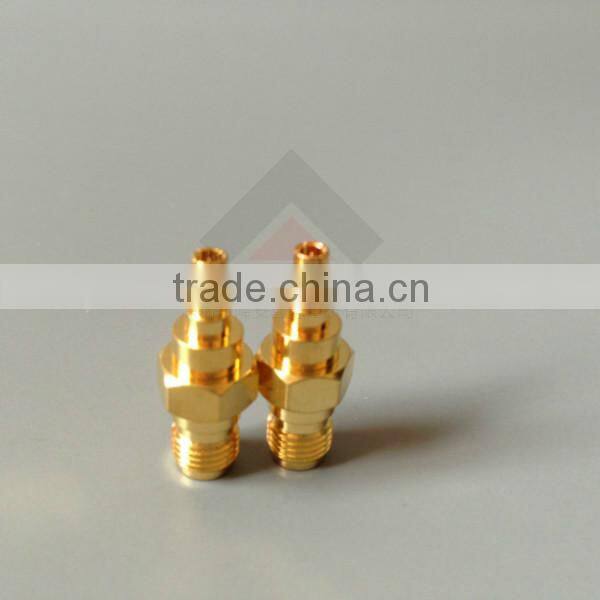

SMA Female To CRC9 Antenna Connector
Major Technical Characteristics | |||
Type | SMA - CRC9 | ||
Impedance | 50Ω | ||
Frequency Range | DC~11GHz | ||
Center conductor retention force | ≥0.56N | ||
Insertion Loss | 0.24dB(6GHz) | ||
Voltage Standing Wave Ratio | Straight ≤1.15/6GHz | ||
Right angle ≤1.25/6GHz | |||
Durability(mating) | ≥500(cycles) | ||
Material & Plating | |||
Body | Brass | Nickel plated | |
Pin contact | Brass | Gold plated | |
Resilient contact | Beryllium-copper | Gold plated | |
Socket contact | Beryllium or tin bronze | Gold plated | |
Insulator | PTFE | ||
Crimp ferrule | Copper alloy | Nickel or gold plated | |
O-ring sealing | 6146 silicone rubber | ||
