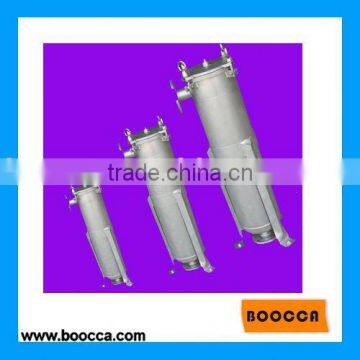

Top-lid Standard Bag Filter
- 100 Set / Sets per Month
- Shanghai China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | BOOCCA | |
| Model Number | BF-1/2/4S |
Product Description
Specifications
Bag Filter vessel: 45m3/h, casting top, 100% without leakage,fluid treament.Casting top-lid Standard Bag Filter
Main Feature:
1. Casting top-lid desing, Hermetic seal to prevent liquid bypass
2. 0.5 efficient filtration area, higher filtration efficiency
3. Changing filter bags more easily, lower cost
5. Adjustable-height legs, fit idiographic area need
6. Available in 150psi or 300psi Maximum Working Pressure
7. 90oC or 160oC Maximum Working Temperature
8. Max Flowrate: 45m3/h
9. Material: CS/SS
10. Hinged Lid w/ Handle, Built-in Lid Stop, and Safety Detents
Matched parts:
· Perforated S/S Support Basket
· Gauge Ports, Vent Ports, Drain Ports on top
· Buna-N O-Rings sealed
· Optional 2# PE/PP/NO, dia7"*length32"(178mm*813mm)
Specification
Model | Max Flow (m3/h) | Max pressure | Max Temp | Pipe Size | Material |
BF-1C | 20 | 150 psi | 250°F | DN50,1”NPT | 304/316 |
BF-2C | 45 | 150 psi | 250°F | DN50,1”NPT | 304/316 |
BF-4C | 10 | 150 psi | 250°F | 1/2" NPT | 304/316 |
