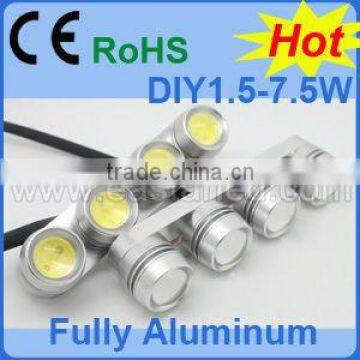

stright type 6W aluminium material led DRL (Original manufacturer)

Specifications

stright type 1.5XN w aluminium material led DRL:




Features:

1, Fashionable style with CE, E-mark approval.

2, Whole aluminum housing, good heat dissipation. Make sure the lamp is more stable and long life-span.

3, With high power LED chips. 1.5Watt/chip, Luminous efficacy is over 100lm/W. High brightless and energy saving.
4, Reverse polarity protection function.

5, Waterproof (IP65), shockproof.

6, Compact, delicate, easy to install, with 4 screws and 4 nuts, almost can be suitable for all auto.

7, Professional built-in constant current driver, Make sure the lamp is more stable and long life-span.

8, Light source color: white (pure white and warm white), blue, green, red are availably.

Parameters and other details:

1, Voltage: DC9V-14V.

2, Power: 6Wx2, total 12W/pair.  1.5XN (W)

3, Lifetime: over 30,000 hours.

4, Beam angle: 120 degree.

5, Package:  color box/ pair.

6, Working temperature: -35°C to 45°C.

7, Maximum surface temperaturea: ≤60°C.

8, Component of package: 2pcs of lamp ,2 wire with 1.5 meter and Anticorrosion, prevent heat, 4 screws and 4 nuts, User manual.

9, Luminous Flux:  ≥480lm.

10, We accept OEM order.

More products and details please visit our website:      Http://

What is DRL?

To increase road safety, the European Commission has decided to introduce dedicated Daytime Running Light (DRL) on all new types of motor vehicles from the year 2011 onwards. Dedicated Daytime Running Lights are special lamps which are automatically switched on when the engine is started. They substantially increase the visibility of motor vehicles to other road users, and have a low energy consumption compared to exisiting dipped-beam head lamps. In countries which have already made DRL obligatory the experience in the field of road safety is very positive.

According to available research, Daytime Running Light (DRL) is important for road safety. All road users including pedestrians, cyclists and motorcyclists, can detect, recognize and identify vehicles equipped with DRL, better and earlier. The mandatory introduction of dedicated DRL was discussed in the Commission’s High Level Group CARS 21 (“Competitive Automotive Regulatory System for the 21st Century”) with high level executives from Member States, industry and non-governmental organisations (NGOs) and got unanimous approval. The Directive, which has been adopted today, foresees that from 7 February 2011 onwards all new types of passenger cars and small delivery vans will have to equipped with DRL. Trucks and buses will follow 18 months later, i.e. August 2012.

On vehicles equipped with Daytime Running Light, this light is automatically switched on when the engine is started. When it is dark the driver have to switch on the driving lights manually. In this case the DRL goes off automatically.

From an environmental point of view, dedicated daytime running lights is an effective solutions to improve visibility and conspicuity of vehicles. As the technology is especially designed to be used during daytime it is much more effective and efficient than existing lighting devices. The energy comsumption is approximately only 25-30% of the energy consumption of the normal driving light. When using LED (Light Emitting Diode) technology for dedicated DRL, the energy consumption is reduced to only 10%.
